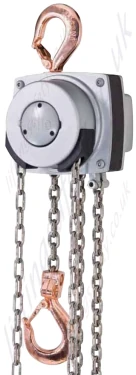

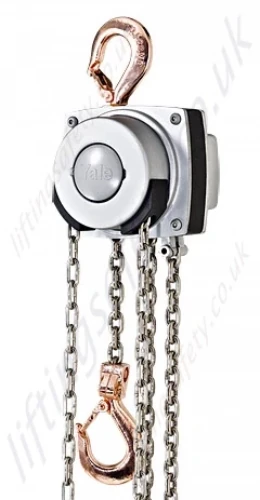

Yale "Yalelift 360 SR" ATEX Hand Chain Hoist, Hook Suspended - Range from 500kg to 20,000kg

Spark Resistant Hand Chain Hoist with single or 2 fall chain.

Model:

Yalelift360 SR / YSRH-1121


The Yalelift 360 SR Spark Resistant hand chain hoist once again proves its worth in an environment that far exceeds the requirements of a classical hand chain hoist. On the basis of the European Directive 2014/34/EU this model series has been further developed for the use in potentially explosive atmospheres (ATEX zones).

The 360° rotating hand chain guide allows the operator to work from almost any position, in confined spaces, above the load or at 90° to the load which makes it possible to use the hoist for horizontal pulling or tensioning. Due to the additional flexibility, the operator is no longer forced to work in the danger zone near the load.

Available in 500kg, 1000kg, 2000kg, 3000kg, 5000kg, 10000kg and 20000kg capacity options.

Features

  • Enclosed robust stamped steel housing protects all internal components even in the toughest conditions.
  • Extremely low headroom allows maximum use of the lifting height.
  • Extremely quiet braking system guarantees operational safety and improved serviceability due to omission of the vulnerable ratchet pawls.
  • All parts are made of high quality materials, additionally zinc-plated or yellow-chromated to increase corrosion prevention.
  • Chain guide and gearbox are almost totally enclosed. Even under the toughest conditions the internal gearbox remains protected.
  • The hardened load sheave with four precision machined pockets ensures accurate movement of the load chain.
  • The surface protected zinc-plated alloy steel load chains fulfil all requirements of current national and international standards and regulations. They are matched perfectly to the load chain sheave and guarantee
    smooth and precise chain motion.
  • 360° Rotating high tensile drop forged load and suspension hooks that yield under overload instead of breaking.
  • Explosion protected version with spark resistant coating.
  • Copper-coated suspension and load hooks for MEDIUM design or higher.
  • Stainless steel load chain for HIGH design.

Yale ATEX Levels of Protection

All of Yale’s ATEX hoists meet the following standards: EN1127-1:1997; EN13463-1:2001; EN13463-5:2003, and are supplied complete with the relevant ATEX approval documentation.

Yale (Columbus McKinnon) offer three levels of protection - BASIC, MEDIUM, and HIGH.

Under directive 94/9/EC, equipment for areas with an explosion hazard are assigned to groups, categories and temperature classes. This is necessary as the requirements for equipment need not be the same for every application and for every hazard classification.

NB: It is the responsibility of the end user to identify the explosion proof classification required, NOT the hoist manufacturer or the supplier. Reference Directive 99/92/EC.

MEDIUM (Zone 1/21 & 2/22)

ATEX II 2 G Ex h IIB T4
ATEX II 2 D Ex h IIIB T135°C Db

  • Unit special coated.
  • Load chain galvanic zinc-plated, stainless steel hand chain.
  • Top hook and load hook copper plated.

HIGH (Zone 1/21 & 2/22)

ATEX II 2 G Ex h IIC T4 Gb
ATEX II 2 D Ex h IIIC T135°C Db

  • Unit special coated.
  • Stainless steel load and hand chain (Capacity reduction may apply).
  • Top hook and load hook copper plated.

Why explosion protection?

Explosion protection for electrical and mechanical machinery is an important precautionary measure to ensure the safety of persons and all kinds of production, storage and distribution systems, when explosive mixtures of combustible gases, dusts and air may occur.

What does explosion protection achieve?

Explosion protection can mean to generally prevent the ignition of an explosive mixture. Explosion protection can also be achieved by eliminating potential ignition sources in advance, e.g. high temperatures and sparking. In many trades and industries, combustible gases, vapours and dusts are handled which have the potential to cause explosions.

Examples of explosion hazards in various industries

  • Chemical industry
  • Waste disposal sites
  • Energy production companies
  • Waste management companies
  • Gas suppliers
  • Metal processing companies
  • Wood-processing companies
  • Paint shops
  • Agriculture
  • Food and feed-stuffs industry
  • Pharmaceutical industry
  • Refineries
  • Recycling companies

More Information:

The combination of the Yalelift 360 with a low headroom manual trolley provides even more flexibility in the application of the Yalelift 360.

  • All units of this series up to a capacity of 3000kg are provided with a single chain fall and the minimum headroom has been further reduced. Ideal for applications with low ceiling and limited headroom.
  • The manual trolley is adjustable to fit a wide range of beam profiles (e.g. INP, IPE, IPB). Depending on the beam flange width, an adjustment up to 300mm can be made easily.
  • The trolley wheels are designed for a maximum beam profile incline of 14% (DIN 1025 - part 1), excellent rolling features are guaranteed by pre-lubricated, encapsulated ball bearings.
  • Anti-tilt and anti-drop devices are standard.
  • A subsequent conversion of a Yalelift 360 into a Yalelift IT with integrated trolley is easily possible at any time.

LiftingSafety Review:
Here we have a range of hook suspended Hand chain hoists at a competitive price offered by Yale that are certified for for use in ATEX sparkproof area's. Sometimes referred to as Zone 2. Check Yales technical specification for compliance with your requirements. The YaleLift sparkproof hoists come certified up to 10000kg and can also be supplied with an integrated beam trolley.

Yalelift 360 Hand Chain Hoists - ATEX. Capacities 0.5t to 20.0t

Model YL 500 YL 1000 YL 2000 YL 3000 YL 5000 YL 10000 YL 20000
A min. (mm) 300 335 395 520 654 825 1010
B (mm) 17 22 30 38 45 68 85
C (mm) 24 29 35 40 47 68 64
D (mm) 133 156 182 220 220 220 303
E (mm) 148 175 203 250 250 383 555
F (mm) 148 167 194 219 219 219 250
G (mm) 139 164 192 225 242 326 391
H (mm) 206 242 283 335 352 436 501
I (mm) 24 24 31 34 21 136
K (mm) 61 70 83 95 95 95 396
L (mm) 87 97 111 124 124 124 125
M (mm) 110 125 156 178 285 401 471
N (mm) 14 19 22 30 37 50 56
Number of Chain Falls 1 1 1 1 2 3 6
Chain Dimensions (mm) 5 x 15 6 x 18 8 x 24 10 x 30 10 x 30 10 x 30 10 x 30
Weight @ 3m HOL (kg) 9 13 20 29 38 71 196

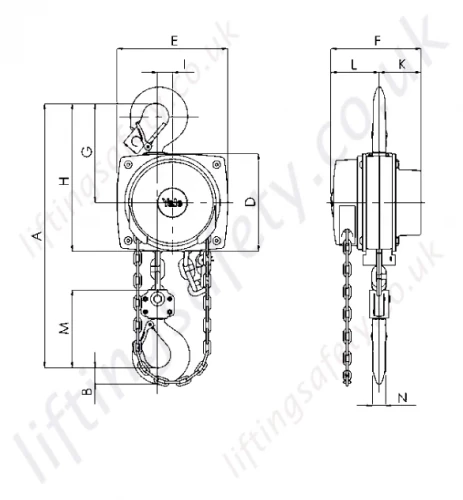

Model Yalelift 360 Atex  500   3000 Kg  Single Fall

Model Yalelift 360 ATEX, 500 - 3000 kg, single fall

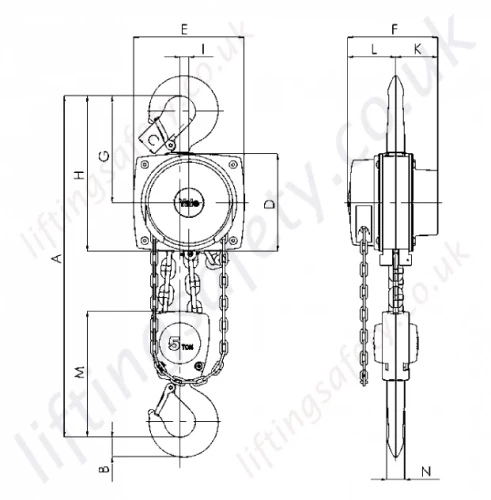

Model Yalelift 360 Atex  5000 Kg  Double Fall

Model Yalelift 360 ATEX, 5000 kg, double fall

Model Yalelift 360 Atex  5000 Kg  Double Fall

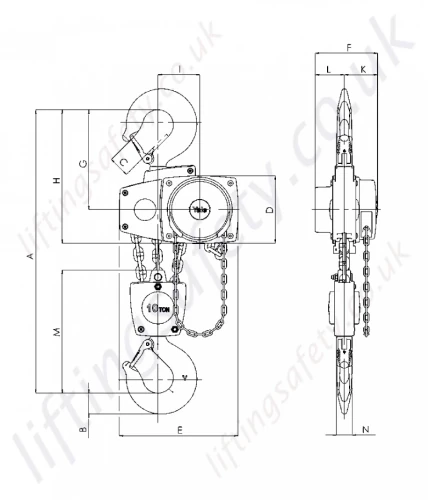

Model Yalelift 360 ATEX, 10000 kg, three fall

Model Yalelift 360 Atex  10000 Kg  Three Fall

Model Yalelift 360 ATEX, 20000 kg, six fall


LiftingSafety Review:
Here we have a range of hook suspended Hand chain hoists at a competitive price offered by Yale that are certified for for use in ATEX sparkproof area's. Sometimes referred to as Zone 2. Check Yales technical specification for compliance with your requirements. The YaleLift sparkproof hoists come certified up to 10000kg and can also be supplied with an integrated beam trolley.
Yalelift_Atex_Operating Manual .pdf

Yale Atex Operating Manual

Operating and safety information.
(approx. 1.1Mb)
Yale information on explosion protection.pdf

Yale information on explosion protection

(approx. 1.0Mb)

The Yalelift 360 SR Spark Resistant hand chain hoist once again proves its worth in an environment that far exceeds the requirements of a classical hand chain hoist. On the basis of the European Directive 2014/34/EU this model series has been further developed for the use in potentially explosive atmospheres (ATEX zones).

The 360° rotating hand chain guide allows the operator to work from almost any position, in confined spaces, above the load or at 90° to the load which makes it possible to use the hoist for horizontal pulling or tensioning. Due to the additional flexibility, the operator is no longer forced to work in the danger zone near the load.

Available in 500kg, 1000kg, 2000kg, 3000kg, 5000kg, 10000kg and 20000kg capacity options.

Features

  • Enclosed robust stamped steel housing protects all internal components even in the toughest conditions.
  • Extremely low headroom allows maximum use of the lifting height.
  • Extremely quiet braking system guarantees operational safety and improved serviceability due to omission of the vulnerable ratchet pawls.
  • All parts are made of high quality materials, additionally zinc-plated or yellow-chromated to increase corrosion prevention.
  • Chain guide and gearbox are almost totally enclosed. Even under the toughest conditions the internal gearbox remains protected.
  • The hardened load sheave with four precision machined pockets ensures accurate movement of the load chain.
  • The surface protected zinc-plated alloy steel load chains fulfil all requirements of current national and international standards and regulations. They are matched perfectly to the load chain sheave and guarantee
    smooth and precise chain motion.
  • 360° Rotating high tensile drop forged load and suspension hooks that yield under overload instead of breaking.
  • Explosion protected version with spark resistant coating.
  • Copper-coated suspension and load hooks for MEDIUM design or higher.
  • Stainless steel load chain for HIGH design.

Yale ATEX Levels of Protection

All of Yale’s ATEX hoists meet the following standards: EN1127-1:1997; EN13463-1:2001; EN13463-5:2003, and are supplied complete with the relevant ATEX approval documentation.

Yale (Columbus McKinnon) offer three levels of protection - BASIC, MEDIUM, and HIGH.

Under directive 94/9/EC, equipment for areas with an explosion hazard are assigned to groups, categories and temperature classes. This is necessary as the requirements for equipment need not be the same for every application and for every hazard classification.

NB: It is the responsibility of the end user to identify the explosion proof classification required, NOT the hoist manufacturer or the supplier. Reference Directive 99/92/EC.

MEDIUM (Zone 1/21 & 2/22)

ATEX II 2 G Ex h IIB T4
ATEX II 2 D Ex h IIIB T135°C Db

  • Unit special coated.
  • Load chain galvanic zinc-plated, stainless steel hand chain.
  • Top hook and load hook copper plated.

HIGH (Zone 1/21 & 2/22)

ATEX II 2 G Ex h IIC T4 Gb
ATEX II 2 D Ex h IIIC T135°C Db

  • Unit special coated.
  • Stainless steel load and hand chain (Capacity reduction may apply).
  • Top hook and load hook copper plated.

Why explosion protection?

Explosion protection for electrical and mechanical machinery is an important precautionary measure to ensure the safety of persons and all kinds of production, storage and distribution systems, when explosive mixtures of combustible gases, dusts and air may occur.

What does explosion protection achieve?

Explosion protection can mean to generally prevent the ignition of an explosive mixture. Explosion protection can also be achieved by eliminating potential ignition sources in advance, e.g. high temperatures and sparking. In many trades and industries, combustible gases, vapours and dusts are handled which have the potential to cause explosions.

Examples of explosion hazards in various industries

  • Chemical industry
  • Waste disposal sites
  • Energy production companies
  • Waste management companies
  • Gas suppliers
  • Metal processing companies
  • Wood-processing companies
  • Paint shops
  • Agriculture
  • Food and feed-stuffs industry
  • Pharmaceutical industry
  • Refineries
  • Recycling companies

More Information:

The combination of the Yalelift 360 with a low headroom manual trolley provides even more flexibility in the application of the Yalelift 360.

  • All units of this series up to a capacity of 3000kg are provided with a single chain fall and the minimum headroom has been further reduced. Ideal for applications with low ceiling and limited headroom.
  • The manual trolley is adjustable to fit a wide range of beam profiles (e.g. INP, IPE, IPB). Depending on the beam flange width, an adjustment up to 300mm can be made easily.
  • The trolley wheels are designed for a maximum beam profile incline of 14% (DIN 1025 - part 1), excellent rolling features are guaranteed by pre-lubricated, encapsulated ball bearings.
  • Anti-tilt and anti-drop devices are standard.
  • A subsequent conversion of a Yalelift 360 into a Yalelift IT with integrated trolley is easily possible at any time.

LiftingSafety Review:
Here we have a range of hook suspended Hand chain hoists at a competitive price offered by Yale that are certified for for use in ATEX sparkproof area's. Sometimes referred to as Zone 2. Check Yales technical specification for compliance with your requirements. The YaleLift sparkproof hoists come certified up to 10000kg and can also be supplied with an integrated beam trolley.

Yalelift 360 Hand Chain Hoists - ATEX. Capacities 0.5t to 20.0t

Model YL 500 YL 1000 YL 2000 YL 3000 YL 5000 YL 10000 YL 20000
A min. (mm) 300 335 395 520 654 825 1010
B (mm) 17 22 30 38 45 68 85
C (mm) 24 29 35 40 47 68 64
D (mm) 133 156 182 220 220 220 303
E (mm) 148 175 203 250 250 383 555
F (mm) 148 167 194 219 219 219 250
G (mm) 139 164 192 225 242 326 391
H (mm) 206 242 283 335 352 436 501
I (mm) 24 24 31 34 21 136
K (mm) 61 70 83 95 95 95 396
L (mm) 87 97 111 124 124 124 125
M (mm) 110 125 156 178 285 401 471
N (mm) 14 19 22 30 37 50 56
Number of Chain Falls 1 1 1 1 2 3 6
Chain Dimensions (mm) 5 x 15 6 x 18 8 x 24 10 x 30 10 x 30 10 x 30 10 x 30
Weight @ 3m HOL (kg) 9 13 20 29 38 71 196
Model Yalelift 360 Atex  500   3000 Kg  Single Fall

Model Yalelift 360 ATEX, 500 - 3000 kg, single fall

Model Yalelift 360 Atex  5000 Kg  Double Fall

Model Yalelift 360 ATEX, 5000 kg, double fall

Model Yalelift 360 Atex  5000 Kg  Double Fall

Model Yalelift 360 ATEX, 10000 kg, three fall

Model Yalelift 360 Atex  10000 Kg  Three Fall

Model Yalelift 360 ATEX, 20000 kg, six fall


LiftingSafety Review:
Here we have a range of hook suspended Hand chain hoists at a competitive price offered by Yale that are certified for for use in ATEX sparkproof area's. Sometimes referred to as Zone 2. Check Yales technical specification for compliance with your requirements. The YaleLift sparkproof hoists come certified up to 10000kg and can also be supplied with an integrated beam trolley.
Yalelift_Atex_Operating Manual .pdf

Yale Atex Operating Manual

Operating and safety information.
(approx. 1.1Mb)
Yale information on explosion protection.pdf

Yale information on explosion protection

(approx. 1.0Mb)

Pricing

ATEX Level ?
Capacity
Height of Lift (m) ?
@ £79.87 (min:3) (3 included in price)
Quantity
Unit Price

£1239.74


Contact Us About This Product
