Hadef 21/12 Manual Chain Hoist with Trolley Range 500kg to 10,000kg

Manual chain hoist with integrated push trolley or geared trolley.

Model:

21/12 HH/HR / HMCH-4350


Description

+
  • New brake system
  • Zinc plated load and hand chain
  • Incorporating Spur Gear Hoist Type 12/12
  • Low maintenance and long product lifetime due to sintered brake linings
  • Trolley with two load bars ensures excellent traverse travel ability

Specifications

Capacity (kg) Chain Falls Load Chain (mm) Flange Width (mm) Load Bar Size Travel Resistance (daN) Lift @ 30m Hand Chain Hand Chain Pull (daN) Weight (kg)
Lifting Travel @ 3m Track Height per additional m
500 1 5 x 15 50 - 146
147 - 302		 1N
2N		 15.5 1120 28 6.5 20.1 2.5
1000 1 6.3 x 19.1 50 - 135
136 - 220		 1N
2N		 24 695 32 10 26.7 2.8
1500 1 7.1 x 21 66 - 185
186 - 310		 1N
2N		 30 530 32 11 50.6 3.3
2000 1 8 x 24 66 - 185
186 - 310		 1N
2N		 36 420 42 15 44.6 3.7
3000 2 7.1 x 21 74 - 196
197 - 310		 1N
2N		 39 265 35 11 76 4.7
5000 2 9 x 27 74 - 192
193 - 310		 1N
2N		 63 145 32 17 97 6.5
7500 3 9 x 27 119 - 215
216 - 312		 1N
2N		 - 96 36 21 - -
10,000 4 9 x 27 119 - 215
216 - 312		 1N
2N		 - 72 36 21 182.5 10.7

Dimensions

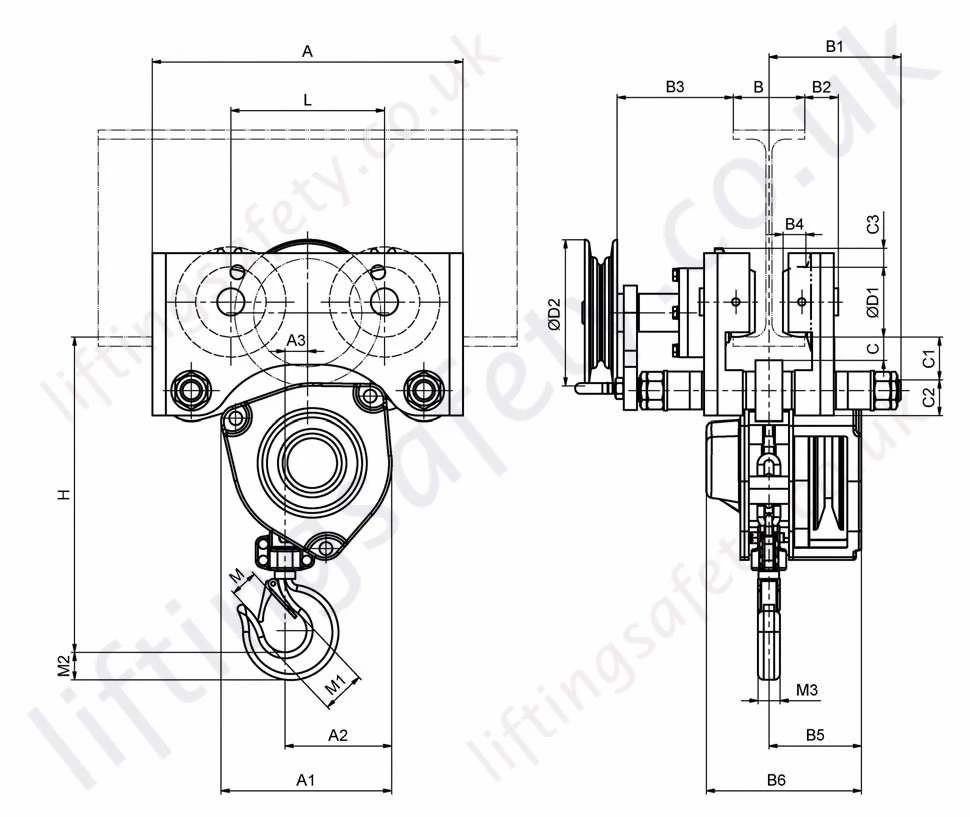

Hadef 21 12 Hr Spur Gear Hoist Push Travel Trolley Dimensions
Capacity (kg) Dimensions in mm
A A1 A2 A3 B1 B2 B3 B4 B5 B6 C C1 C2 C3 D1 D2 H L M M1 M2 M3
1N 2N
500 234 134 75 29 122 200 24 99 20 74 127 25 37 28 21 50 135 255 93 22 35 18 12
1,000 287 168 102 21 122 163 31 140 20 88 160 21 40 33 25 65 135 310 142 26 40 24 17
1,500 350 175 98 23 166 228 40 146 23 90 176 31 48 50 24 85 135 355 172 30 44 26 19
2,000 350 197 110 5 166 228 40 146 23 94 181 31 48 50 24 85 135 400 172 34 50 31 22
3,000 428 175 98 3 182 243 46 149 28 90 176 31 51 63 31 120 135 435 209 38 54 37 27
5,000 492 228 181 7 190 258 53 283 28 96 188 32 63 65 44 120 195 640 223 41 64 46 33
7,500 650 228 230 54 242 291 62 248 40 96 188 42 66 81 35 150 270 630 253 58 87 63 46
10,000 650 228 125 54 242 291 62 248 40 96 188 42 66 81 35 150 270 690 253 58 87 63 46
  • New brake system
  • Zinc plated load and hand chain
  • Incorporating Spur Gear Hoist Type 12/12
  • Low maintenance and long product lifetime due to sintered brake linings
  • Trolley with two load bars ensures excellent traverse travel ability

Specifications

Capacity (kg) Chain Falls Load Chain (mm) Flange Width (mm) Load Bar Size Travel Resistance (daN) Lift @ 30m Hand Chain Hand Chain Pull (daN) Weight (kg)
Lifting Travel @ 3m Track Height per additional m
500 1 5 x 15 50 - 146
147 - 302		 1N
2N		 15.5 1120 28 6.5 20.1 2.5
1000 1 6.3 x 19.1 50 - 135
136 - 220		 1N
2N		 24 695 32 10 26.7 2.8
1500 1 7.1 x 21 66 - 185
186 - 310		 1N
2N		 30 530 32 11 50.6 3.3
2000 1 8 x 24 66 - 185
186 - 310		 1N
2N		 36 420 42 15 44.6 3.7
3000 2 7.1 x 21 74 - 196
197 - 310		 1N
2N		 39 265 35 11 76 4.7
5000 2 9 x 27 74 - 192
193 - 310		 1N
2N		 63 145 32 17 97 6.5
7500 3 9 x 27 119 - 215
216 - 312		 1N
2N		 - 96 36 21 - -
10,000 4 9 x 27 119 - 215
216 - 312		 1N
2N		 - 72 36 21 182.5 10.7

Dimensions

Hadef 21 12 Hr Spur Gear Hoist Push Travel Trolley Dimensions
Capacity (kg) Dimensions in mm
A A1 A2 A3 B1 B2 B3 B4 B5 B6 C C1 C2 C3 D1 D2 H L M M1 M2 M3
1N 2N
500 234 134 75 29 122 200 24 99 20 74 127 25 37 28 21 50 135 255 93 22 35 18 12
1,000 287 168 102 21 122 163 31 140 20 88 160 21 40 33 25 65 135 310 142 26 40 24 17
1,500 350 175 98 23 166 228 40 146 23 90 176 31 48 50 24 85 135 355 172 30 44 26 19
2,000 350 197 110 5 166 228 40 146 23 94 181 31 48 50 24 85 135 400 172 34 50 31 22
3,000 428 175 98 3 182 243 46 149 28 90 176 31 51 63 31 120 135 435 209 38 54 37 27
5,000 492 228 181 7 190 258 53 283 28 96 188 32 63 65 44 120 195 640 223 41 64 46 33
7,500 650 228 230 54 242 291 62 248 40 96 188 42 66 81 35 150 270 630 253 58 87 63 46
10,000 650 228 125 54 242 291 62 248 40 96 188 42 66 81 35 150 270 690 253 58 87 63 46
