Tiger Corrosion Resistant Chain Hoist and Geared Trolley Combination - Range: 500kg to 30,000kg

Model:  CCBTG / TTHC-4806

Capacity
Beam Width
Additional HOL
@ £31.00 (min:3) (3 included in price)
Quantity


Currency Conversion Not available at the moment.
Guide Price £ 365.00
Part N°: 4806-14135128   Add to Quote Request

Tiger manual chain block with integrated hand chain driven travel beam/girder trolley to suit various beam widths.

The Tiger CCBTG is a combination of the SS12 Corrosion Resistant Chain Block, and the TG geared travel trolley.

The SS12 is manufactured from the highest quality steel materials precisely machined in our own factory, offering a lightweight, compact and rugged construction, producing an exceptionally strong product resistant to impact damage.

The low headroom allows for easy installation in the most restricted environments.

Unique design features - including Tiger's patented Quad Cam Pawl System, along with the anti-corrosion properties incorporated in this range, give it significant safety advantages over standard chain blocks and make the SS12 chain block the ideal tool for salt water use with low maintenance and servicing costs.

Product features

  • Chained to any height of lift to meet your requirements.
  • Ideal for locations where headroom is limited.
  • Extended beam width available.
  • Operating temperature of -30°C to +50°C (temperature range of -50°C to +50°C available as an option).
  • Spark Resistant versions are also available.
Corrosion Resistant Chain Block And Geared Trolley

Dimensions

Tiger Geared Trolley And Hoist Combination

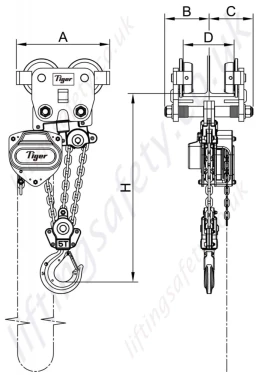

Chain Block And Hand Chain Beam Trolley Combination
0.5t, 1.0t, 2.0t & 3.0t Hoist Combination with Single Bar Trolley 3.0t, 5.0t & 10.0t Hoist Combination with Twin Bar Trolley

15t   20t Hoist And Trolley
30t Hoist And Trolley
15.0t & 20.0t Hoist Combination with Twin Bar Trolley 30.0t Hoist Combination with Twin Bar Trolley
  Capacity (t) Beam Width - Range 1 (mm) Beam Width - Range 2 (mm) A (mm) B (mm) C (mm) H (mm) Weight (3m HOL)
Single Bar Trolley    0.5 62-128 62-203 195 165 106  310 20.0
1.0 62-128 62-203  213  170  113 350  23.5
2.0 88-154 88-230  236  182  136  450  37.5
3.0 (Single Fall) 88-153 88-230  270  184  146  530  53.5
Twin Bar Trolley     3.0 (Twin Fall) 88-153  88-230  320  181  142  435  58.5
5.0 106-194  106-305  352  202  166  545  74.5
10.0 150-320  N/A  460  335  255  730  200.0
15.0 150-320  N/A  930  335  255  880  420.0
20.0 150-320  N/A  930  335  255  1000  460.0
30.0 150-320 N/A 990 348 267 1145 640.0
