Tiger Chain Hoist with Integrated Trolleys (Push and Geared Travel) - Range from 500kg to 35,000kg

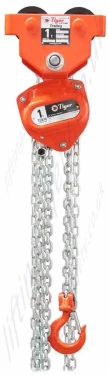

Tiger manual hand chain block with integrated/combination push or geared trolley.

Model:

CCBTPS / CCBTGS / TCHWT-4674


Description

+

The Tiger Chain Blocks are manufactured from high quality steel offering a lightweight but robust and an exceptionally strong hand chain hoist at a competitive price.

The design of this lifting hoist has been developed over a number of years putting emphasis on operator safety and hoist durability.

Such features allow the manual chain hoists to meet the requirements for use by the Ministry of Defence mining and also approved / certified to be used in Deep coal mining, meeting the requirements of British Coal and commonly being used by the the UK Coal mining industry.

This hand chain hoist is also extensively used in the Offshore Oil industry.

All these industries operate in extreme environments where reliability and safety are paramount and for this reason we At Liftingsafety are now selling this range of hand chain hoists.

The hand lifting hoist hoist range meets and supersedes the latest British and European Standard EN13157 looking to achieve a light load test no greater than 2% of the rated capacity of the hoist.

  • Range from 0.5t to 35.0t.
  • Ideal for locations where headroom is limited.
  • Twin bar or single bar trolley options.
  • Extended beam width available.
  • Operating temperatures of -40° to +80°C (temperature range of -60° to +80° available as an option).
  • Meet and exceed all the requirements within BS EN 13157: 2004+A1:2009 and AS1418.2.

Dimensions & Specifications

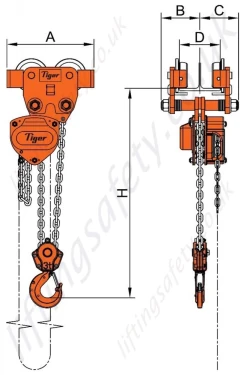

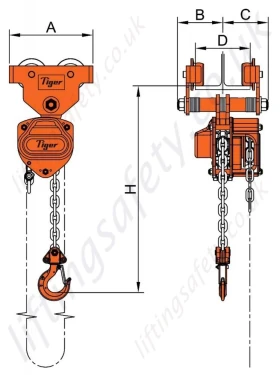

Tiger Single Bar Push Trolley And Hoist Tiger Twin Bar Push Trolley And Hoist
Push Travel Single Bar Push Travel Single Bar

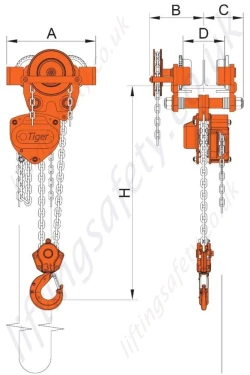

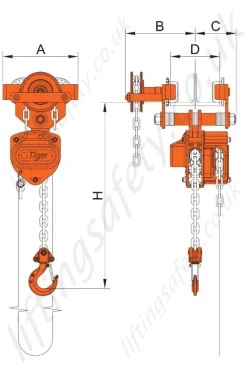

Tiger Single Bar Geared Trolley And Hoist Tiger Twin Bar Geared Trolley And Hoist
Geared Travel Single Bar Geared Travel Single Bar

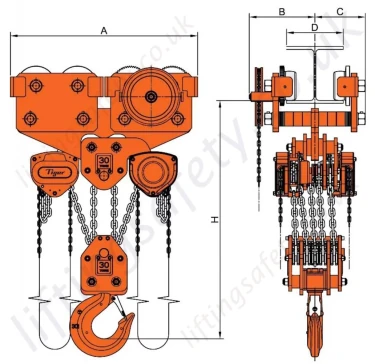

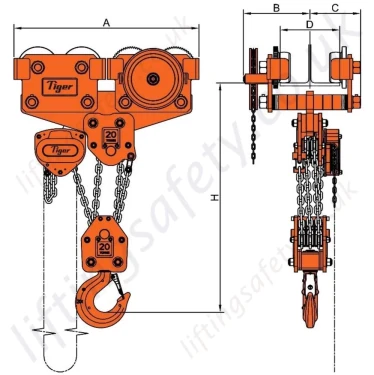

20t Tiger Twin Bar Geared Trolley And Hoist 30t 35t Tiger Twin Bar Geared Trolley And Hoist
20t Geared Travel Twin Bar 30t/35t Geared Travel Twin Bar
Single Bar Push Trolley Combination Unit
Capacity (t) Range 1 Range 2 A (mm) B (mm) C (mm) H (mm) Min. Curve Ratio (m) Weight (kg)
0.5 80-128 80-203 195 106 106 310 0.8 16
1 80-128 80-203 213 113 113 340 1 19.5
2 112-154 112-230 236 136 136 420 1.3 33
3 111-153 111-230 275 146 146 504 1.5 48.5

Twin Bar Push Trolley Combination Unit
Capacity (t) Range 1 Range 2 A (mm) B (mm) C (mm) H (mm) Min. Curve Ratio (m) Weight (kg)
3 105-153 105-230 320 142 142 460 1.5 45.5
5 126-194 126-305 352 167 166 545 1.5 69
10 125-320 N/A 346 243 243 660 1.5 137
15 150-320 N/A 461 276 276 827 2.7 274

Single Bar Geared Trolley Combination Unit
Capacity (t) Range 1 Range 2 A (mm) B (mm) C (mm) H (mm) Min. Curve Ratio (m) Weight (kg)
0.5 80-128 80-203 195 180 106 310 0.8 20
1 80-128 80-203 213 180 113 340 1 23.5
2 112-154 112-230 236 195 136 420 1.3 37.5
3 111-153 111-230 275 198 146 504 1.5 53.5

Twin Bar Geared Trolley Combination Unit
Capacity (t) Range 1 Range 2 A (mm) B (mm) C (mm) H (mm) Min. Curve Ratio (m) Weight (kg)
3 105-153 105-230 320 194 142 460 1.5 58.5
5 126-194 126-305 352 218 166 545 1.5 74.5
10 125-320 N/A 346 282 243 660 1.5 144
15 150-320 N/A 461 342 276 827 2.7 290
20 125-320 N/A 754 284 243 950 6 321
30 150-320 N/A 1009 339 270 1145 6 621
35 150-320 N/A 1009 335 274 1145 6 651



LiftingSafety Review:
Offered as an alternative to the YaleLift 360 though not as compact. This Hackett Hand chain block with push trolley or geared travel (Chain drive)  is good quality product that is very serviceable, not the best looking on the market though 'Does the job' at the right price. Definitely do to be confused with the Cheap and cheerful far east imports!

The Tiger Chain Blocks are manufactured from high quality steel offering a lightweight but robust and an exceptionally strong hand chain hoist at a competitive price.

The design of this lifting hoist has been developed over a number of years putting emphasis on operator safety and hoist durability.

Such features allow the manual chain hoists to meet the requirements for use by the Ministry of Defence mining and also approved / certified to be used in Deep coal mining, meeting the requirements of British Coal and commonly being used by the the UK Coal mining industry.

This hand chain hoist is also extensively used in the Offshore Oil industry.

All these industries operate in extreme environments where reliability and safety are paramount and for this reason we At Liftingsafety are now selling this range of hand chain hoists.

The hand lifting hoist hoist range meets and supersedes the latest British and European Standard EN13157 looking to achieve a light load test no greater than 2% of the rated capacity of the hoist.

  • Range from 0.5t to 35.0t.
  • Ideal for locations where headroom is limited.
  • Twin bar or single bar trolley options.
  • Extended beam width available.
  • Operating temperatures of -40° to +80°C (temperature range of -60° to +80° available as an option).
  • Meet and exceed all the requirements within BS EN 13157: 2004+A1:2009 and AS1418.2.

Dimensions & Specifications

Tiger Single Bar Push Trolley And Hoist Tiger Twin Bar Push Trolley And Hoist
Push Travel Single Bar Push Travel Single Bar
Tiger Single Bar Geared Trolley And Hoist Tiger Twin Bar Geared Trolley And Hoist
Geared Travel Single Bar Geared Travel Single Bar
20t Tiger Twin Bar Geared Trolley And Hoist 30t 35t Tiger Twin Bar Geared Trolley And Hoist
20t Geared Travel Twin Bar 30t/35t Geared Travel Twin Bar
Single Bar Push Trolley Combination Unit
Capacity (t) Range 1 Range 2 A (mm) B (mm) C (mm) H (mm) Min. Curve Ratio (m) Weight (kg)
0.5 80-128 80-203 195 106 106 310 0.8 16
1 80-128 80-203 213 113 113 340 1 19.5
2 112-154 112-230 236 136 136 420 1.3 33
3 111-153 111-230 275 146 146 504 1.5 48.5

Twin Bar Push Trolley Combination Unit
Capacity (t) Range 1 Range 2 A (mm) B (mm) C (mm) H (mm) Min. Curve Ratio (m) Weight (kg)
3 105-153 105-230 320 142 142 460 1.5 45.5
5 126-194 126-305 352 167 166 545 1.5 69
10 125-320 N/A 346 243 243 660 1.5 137
15 150-320 N/A 461 276 276 827 2.7 274

Single Bar Geared Trolley Combination Unit
Capacity (t) Range 1 Range 2 A (mm) B (mm) C (mm) H (mm) Min. Curve Ratio (m) Weight (kg)
0.5 80-128 80-203 195 180 106 310 0.8 20
1 80-128 80-203 213 180 113 340 1 23.5
2 112-154 112-230 236 195 136 420 1.3 37.5
3 111-153 111-230 275 198 146 504 1.5 53.5

Twin Bar Geared Trolley Combination Unit
Capacity (t) Range 1 Range 2 A (mm) B (mm) C (mm) H (mm) Min. Curve Ratio (m) Weight (kg)
3 105-153 105-230 320 194 142 460 1.5 58.5
5 126-194 126-305 352 218 166 545 1.5 74.5
10 125-320 N/A 346 282 243 660 1.5 144
15 150-320 N/A 461 342 276 827 2.7 290
20 125-320 N/A 754 284 243 950 6 321
30 150-320 N/A 1009 339 270 1145 6 621
35 150-320 N/A 1009 335 274 1145 6 651



LiftingSafety Review:
Offered as an alternative to the YaleLift 360 though not as compact. This Hackett Hand chain block with push trolley or geared travel (Chain drive)  is good quality product that is very serviceable, not the best looking on the market though 'Does the job' at the right price. Definitely do to be confused with the Cheap and cheerful far east imports!

Pricing

Trolley Options
Capacity
Trolley Beam Width Range
Height of Lift (m) ?
@ £18.45 (min:3) (3 included in price)
Quantity
Unit Price

£240.35
