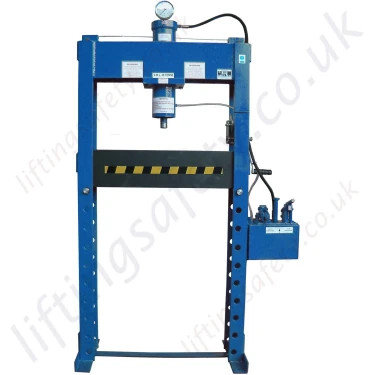

"Tall" - Heavy Duty Hydraulic Press

"Tall" - Heavy Duty Hydraulic Press

Extra tall manually operated hydraulic press. 40 to 100 tonne options.

Model:

MHPH-1198

"Tall" - Heavy Duty Hydraulic Press

Manual Hydraulic Press
More from:
Lifting Safety Logo
  • 12 Month guarantee period
  • Large 4" diameter pressure gauge
  • Precision built hydraulic pump and hydraulic cylinder
  • Long life Hydraulic Seals
  • Hard chromium-plated piston rod in pump
  • Fitted with a stroke restriction valve to prevent hydraulic cylinder damage
  • Manufactured in England
  • Excellent quality, suitable for industrial use, not to be confused with lesser quality imported presses.

Design features on all press models:

Precise guidance of the piston rod through a high quality self-lube bush gives first class pressing performance. The cylinder is manufactured from top quality hydraulic tube (all welded construction)

The hydraulic pump and cylinder are manufactured from top quality materials, giving good tolerance and long working life.

Part Number Capacity O/A frame height (mm) A Frame height (mm) B O/A Frame width (mm) C Frame width (mm) D O/A Frame depth (mm) L Min Daylight (mm) E

Max Daylight (mm) F

 Side clearance between posts (mm) J Front clearance between posts (mm) K
1198-19960 40 tonnes 2230 2030 1440 1150 800 270 1170 260 925
1198-19961 50 tonnes 2230 2030 1560 1270 800 270 1170 260 1050
1198-19962 60 tonnes 2230 2030 1560 1270 800 270 1170 260 1050
1198-19963 100 tonnes 2230 2030 1560 1270 800 240 1100 260 1065

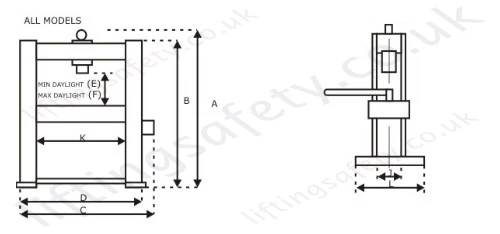

Technical Diagram
Part N° Type Capacity (tonnes) Ram Stroke (mm) Pump Type Guide Price (Ex. VAT) Quantity
1198-T19960 Floor 40 175mm Manual Hydraulic Quote Required
1198-T19961 Floor 50 175mm Manual Hydraulic Quote Required
1198-T19962 Floor 60 175mm Manual Hydraulic Quote Required
1198-T19963 Floor 100 180mm Manual Hydraulic Quote Required
NOTE: This item has separate transport costs (£ 70.00)
Description

  • 12 Month guarantee period
  • Large 4" diameter pressure gauge
  • Precision built hydraulic pump and hydraulic cylinder
  • Long life Hydraulic Seals
  • Hard chromium-plated piston rod in pump
  • Fitted with a stroke restriction valve to prevent hydraulic cylinder damage
  • Manufactured in England
  • Excellent quality, suitable for industrial use, not to be confused with lesser quality imported presses.

Design features on all press models:

Precise guidance of the piston rod through a high quality self-lube bush gives first class pressing performance. The cylinder is manufactured from top quality hydraulic tube (all welded construction)

The hydraulic pump and cylinder are manufactured from top quality materials, giving good tolerance and long working life.

Part Number Capacity O/A frame height (mm) A Frame height (mm) B O/A Frame width (mm) C Frame width (mm) D O/A Frame depth (mm) L Min Daylight (mm) E

Max Daylight (mm) F

 Side clearance between posts (mm) J Front clearance between posts (mm) K
1198-19960 40 tonnes 2230 2030 1440 1150 800 270 1170 260 925
1198-19961 50 tonnes 2230 2030 1560 1270 800 270 1170 260 1050
1198-19962 60 tonnes 2230 2030 1560 1270 800 270 1170 260 1050
1198-19963 100 tonnes 2230 2030 1560 1270 800 240 1100 260 1065
Technical Diagram
Pricing (Buy/Quote)
