Hydraulic Press, Manual Hydraulic Operation (Lightweight construction for lighter duty applications) - 15,000kg and 20,000kg

Hydraulic Press, Manual Hydraulic Operation (Lightweight construction for lighter duty applications) - 15,000kg and 20,000kg

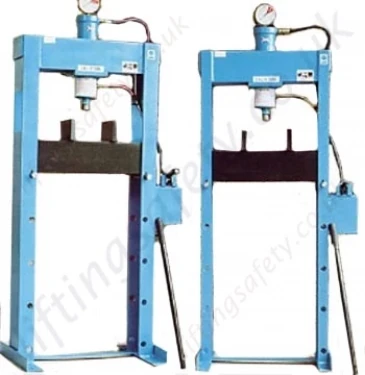

Lightweight Bench / Floor mounted hydraulic workshop press

Model:

LHP-1191

Hydraulic Press, Manual Hydraulic Operation (Lightweight construction for lighter duty applications) - 15,000kg and 20,000kg

Manual Hydraulic Press

Press Features

  • Gauge positioned for easy reading, calibrated in P.S.I and BAR for accurate control when pressing.
  • Low Pressure Hydraulic System ensuring long life.
  • Hydraulic Ram Fitted with a stroke restrictor valve to prevent damage.
  • Precision built hydraulic pump and ram.
  • All Pumps are fitted with a pressure release valve to prevent damage.
  • All welded heavy duty construction frame.
  • All Presses are compleate with a 100mm dia. pressure guage and one pair of universal "vee" blocks.
  • Each press is overload tested and a test certificate / letter of conformity supplied.
  • Each press has been individually tested as a complete unit.
  • All hydraulic cylinder piston rods are fitted with a removable end cap, the end cap is held in place by a concealed ring. This eliminates the need for external fixing screws that can interfere when using the piston rod in a confined space.
  • The press end cap cap is easily removed for fitting mandrels.
  • Mandrels can be manufactured to customer requirements.
  • Precise guidance of the piston rod through a high quality self-lubricating guide bush ensures first class pressing, the cylinder is manufactured from top quality hydraulic tube and is an all welded construction.
  • The hydraulic pump and cylinder are manufactured from top quality materials using the selective assembly method, this gives good tolerance and long working life to the press.
  • Comes with a 12 month manufacturers guarantee.

Technical Information

Part Number 1191-13412 1191-13413
Type FLOOR FLOOR
Capacity (tonnes) 15 20
O/A Frame Height (A) (mm) 1780 1780
Frame Height (B) (mm) 1510 1510
O/A Frame Width (C) (mm) 750 800
Frame Width (D) (mm) 610 660
Min.Daylight (E) (mm) 150 150
Max.Daylight (F) (mm) 960 960
Front clearance between posts (G) (mm) 510 510
Side Clearance between Posts (J) (mm) 155 155
Frame depth (K) (mm) 175 180
O/A Frame Depth (L) (mm) 510 520
Ram Stroke (mm) 100 100
Pump type Double Acting Double Acting
Approx. Weight (kg) 114 134
Part N° Type Capacity (tonnes) Overall Height (A) (mm) Overall Width (C) (mm) Guide Price (Ex. VAT) Quantity
1191-T13412 Floor 15 1780 750 Quote Required
1191-T13413 Floor 20 1780 800 Quote Required
NOTE: This item has separate transport costs (£ 70.00)
Description

Press Features

  • Gauge positioned for easy reading, calibrated in P.S.I and BAR for accurate control when pressing.
  • Low Pressure Hydraulic System ensuring long life.
  • Hydraulic Ram Fitted with a stroke restrictor valve to prevent damage.
  • Precision built hydraulic pump and ram.
  • All Pumps are fitted with a pressure release valve to prevent damage.
  • All welded heavy duty construction frame.
  • All Presses are compleate with a 100mm dia. pressure guage and one pair of universal "vee" blocks.
  • Each press is overload tested and a test certificate / letter of conformity supplied.
  • Each press has been individually tested as a complete unit.
  • All hydraulic cylinder piston rods are fitted with a removable end cap, the end cap is held in place by a concealed ring. This eliminates the need for external fixing screws that can interfere when using the piston rod in a confined space.
  • The press end cap cap is easily removed for fitting mandrels.
  • Mandrels can be manufactured to customer requirements.
  • Precise guidance of the piston rod through a high quality self-lubricating guide bush ensures first class pressing, the cylinder is manufactured from top quality hydraulic tube and is an all welded construction.
  • The hydraulic pump and cylinder are manufactured from top quality materials using the selective assembly method, this gives good tolerance and long working life to the press.
  • Comes with a 12 month manufacturers guarantee.

Technical Information

Part Number 1191-13412 1191-13413
Type FLOOR FLOOR
Capacity (tonnes) 15 20
O/A Frame Height (A) (mm) 1780 1780
Frame Height (B) (mm) 1510 1510
O/A Frame Width (C) (mm) 750 800
Frame Width (D) (mm) 610 660
Min.Daylight (E) (mm) 150 150
Max.Daylight (F) (mm) 960 960
Front clearance between posts (G) (mm) 510 510
Side Clearance between Posts (J) (mm) 155 155
Frame depth (K) (mm) 175 180
O/A Frame Depth (L) (mm) 510 520
Ram Stroke (mm) 100 100
Pump type Double Acting Double Acting
Approx. Weight (kg) 114 134
Pricing (Buy/Quote)
