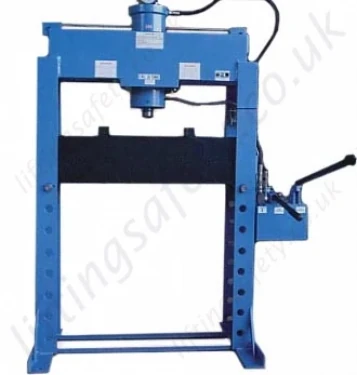

"Standard Height" - Heavy Duty Hydraulic Press, Manual Hydraulic Operation

"Standard Height" - Heavy Duty Hydraulic Press, Manual Hydraulic Operation

Excellent range from 12 tonnes to 100 tonnes.

Model:

MHWP-1194

"Standard Height" - Heavy Duty Hydraulic Press, Manual Hydraulic Operation

More from:
Lifting Safety Logo
  • Excellent range from 12 tonnes to 100 tonnes.
  • Specially placed gauge for easy reading.
  • All work tables are raised and lowered by hand winches and press over 25 tonnes.
  • Hydraulics are lower pressures to give longer working life (25t to 100t models).
  • Rams are fitted with stroke resistor.
  • To prevent damage, units are fitted with release valves.
  • Fully welded frame.
  • 12 Months Guarantee.
  • Manufactured in the UK (England).
  • Excellent quality, suitable for heavy industrial use, not to be confused with lesser quality imported presses.
  • Double Acting Pump (12t to 20t models).
  • Two Stage Pump (25t to 100t models). Low pressure for fast approach to the work piece, and High Pressure for heavy loading.

Design features on all press models:

Precise guidance of the piston rod through a high quality self-lube bush gives first class pressing performance. The cylinder is manufactured from top quality hydraulic tube (all welded construction)

The hydraulic pump and cylinder are manufactured from top quality materials, giving good tolerance and long working life

Capacity (Tonne) O/A Frame height (mm) A Frame height (mm) B O/A Frame width (mm) C Frame width (mm) D O/A Frame depth (mm) L Min. Daylight (mm) E Max. Daylight (mm) F Side clearance between posts (mm) J Front clearance between posts (mm) K
12 1600 1375 750 610 510 120 820 155 500
15 1860 1635 750 610 510 180 1080 155 500
20 1900 1630 830 650 520 100 1000 180 500
25 2020 1760 1190 900 520 110 1020 180 750
30 2020 1760 1190 900 520 110 1020 180 750
40 1920 1670 1240 940 800 160 950 260 720
50 1980 1720 1440 1150 800 100 900 260 925
60 1980 1720 1440 1150 800 100 900 260 925
100 1980 1720 1560 1270 800 100 900 260 1065

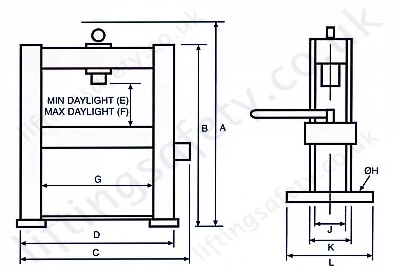

Table and diagram
Part N° Capacity Ram stroke ( mm ) Pump type Approx Weight ( Kg ) Guide Price (Ex. VAT) Quantity
1194-T13377 12 tonne 100 Double Acting 130 Quote Required
1194-T13378 15 tonne 100 Double Acting 170 Quote Required
1194-T13379 20 tonne 160 Double Acting 270 Quote Required
1194-T13380 25 tonne 165 Two Stage 290 Quote Required
1194-T13381 30 tonne 165 Two Stage 310 Quote Required
1194-T13382 40 tonne 175 Two Stage 410 Quote Required
1194-T24089 50 tonne 175 Two Stage 620 Quote Required
1194-T24090 60 tonne 175 Two Stage 640 Quote Required
1194-T24091 100 tonne 180 Two Stage 660 Quote Required
Description

  • Excellent range from 12 tonnes to 100 tonnes.
  • Specially placed gauge for easy reading.
  • All work tables are raised and lowered by hand winches and press over 25 tonnes.
  • Hydraulics are lower pressures to give longer working life (25t to 100t models).
  • Rams are fitted with stroke resistor.
  • To prevent damage, units are fitted with release valves.
  • Fully welded frame.
  • 12 Months Guarantee.
  • Manufactured in the UK (England).
  • Excellent quality, suitable for heavy industrial use, not to be confused with lesser quality imported presses.
  • Double Acting Pump (12t to 20t models).
  • Two Stage Pump (25t to 100t models). Low pressure for fast approach to the work piece, and High Pressure for heavy loading.

Design features on all press models:

Precise guidance of the piston rod through a high quality self-lube bush gives first class pressing performance. The cylinder is manufactured from top quality hydraulic tube (all welded construction)

The hydraulic pump and cylinder are manufactured from top quality materials, giving good tolerance and long working life

Capacity (Tonne) O/A Frame height (mm) A Frame height (mm) B O/A Frame width (mm) C Frame width (mm) D O/A Frame depth (mm) L Min. Daylight (mm) E Max. Daylight (mm) F Side clearance between posts (mm) J Front clearance between posts (mm) K
12 1600 1375 750 610 510 120 820 155 500
15 1860 1635 750 610 510 180 1080 155 500
20 1900 1630 830 650 520 100 1000 180 500
25 2020 1760 1190 900 520 110 1020 180 750
30 2020 1760 1190 900 520 110 1020 180 750
40 1920 1670 1240 940 800 160 950 260 720
50 1980 1720 1440 1150 800 100 900 260 925
60 1980 1720 1440 1150 800 100 900 260 925
100 1980 1720 1560 1270 800 100 900 260 1065
Table and diagram
