Hydraulic Bench Press, Manual Hydraulic Operation - 12,000kg and 15,000kg

Model:

MHBP-1193


This page has expired. Unfortunately this product is no longer available. Contact us with your requirements for a possible suitable alternative.

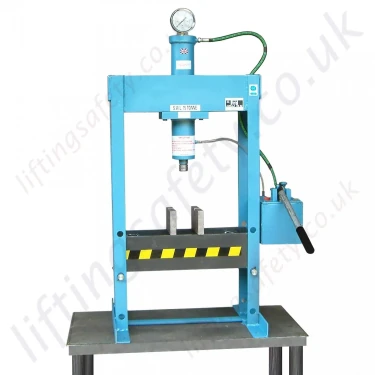

12 - 15 Tonne swl Lightweight Bench and Floor Press

  • Excellent range from 12 tonnes to 15 tonnes.
  • Specially placed guage for easy reading.
  • Hydraulics are lower pressures to give longer working life.
  • Rams are fitted with stroke resistor.
  • To prevent damage, units are fitted with release valves.
  • Fully welded frame.
  • 12 Months Guarantee.
  • Manufactured in the UK (England).
  • Excellent quality, suitable for heavy industrial use, not to be confused with lesser quality imported presses.

Design features on all press models:

Precise guidance of the piston rod through a high quality self-lube bush gives first class pressing performance. The cylinder is manufactured from top quality hydraulic tube (all welded construction).

The hydraulic pump and cylinder are manufactured from top quality materials, giving good tolerance and long working life.

All hydraulic cylinder piston rods are fitted with a removable end cap, the end cap is held in place by a concealed ring. This eleminates the need for external fixing screws that can interfere when using the piston rod in a confined space. The press end cap cap is easily removed for fitting mandrels. Mandrels can be manufactured to customer requirement.

Specifications

Part Number Capacity O/A frame height (mm) A Frame height (mm) B O/A frame width (mm) C Frame width (mm) D O/A frame depth (mm) L Min. Daylight (mm) E Max. Daylight (mm) F Side clearance between posts (mm) J Front clearance between posts (mm) L
1193-19023 12 tonne 1300 1070 750 610 510 165 510 155 500
1193-19024 15 tonne 1300 1070 750 610 510 165 510 155 500

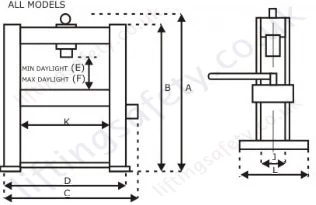

12 to 20 tonne hydraulic workshop press dimensions

Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.

This page has expired. Unfortunately this product is no longer available. Contact us with your requirements for a possible suitable alternative.

12 - 15 Tonne swl Lightweight Bench and Floor Press

  • Excellent range from 12 tonnes to 15 tonnes.
  • Specially placed guage for easy reading.
  • Hydraulics are lower pressures to give longer working life.
  • Rams are fitted with stroke resistor.
  • To prevent damage, units are fitted with release valves.
  • Fully welded frame.
  • 12 Months Guarantee.
  • Manufactured in the UK (England).
  • Excellent quality, suitable for heavy industrial use, not to be confused with lesser quality imported presses.

Design features on all press models:

Precise guidance of the piston rod through a high quality self-lube bush gives first class pressing performance. The cylinder is manufactured from top quality hydraulic tube (all welded construction).

The hydraulic pump and cylinder are manufactured from top quality materials, giving good tolerance and long working life.

All hydraulic cylinder piston rods are fitted with a removable end cap, the end cap is held in place by a concealed ring. This eleminates the need for external fixing screws that can interfere when using the piston rod in a confined space. The press end cap cap is easily removed for fitting mandrels. Mandrels can be manufactured to customer requirement.

Specifications

Part Number Capacity O/A frame height (mm) A Frame height (mm) B O/A frame width (mm) C Frame width (mm) D O/A frame depth (mm) L Min. Daylight (mm) E Max. Daylight (mm) F Side clearance between posts (mm) J Front clearance between posts (mm) L
1193-19023 12 tonne 1300 1070 750 610 510 165 510 155 500
1193-19024 15 tonne 1300 1070 750 610 510 165 510 155 500
12 to 20 tonne hydraulic workshop press dimensions

Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.
