JDN "Big Bag" Handling Air Hoist

JDN "Big Bag" Handling Air Hoist

Pneumatic lift and travel big-bag handling hoist. 1.1 Tonne to 2.2 Tonne.

Model:

JDN Big Bag Hoist / BBHH-2749

JDN "Big Bag" Handling Air Hoist

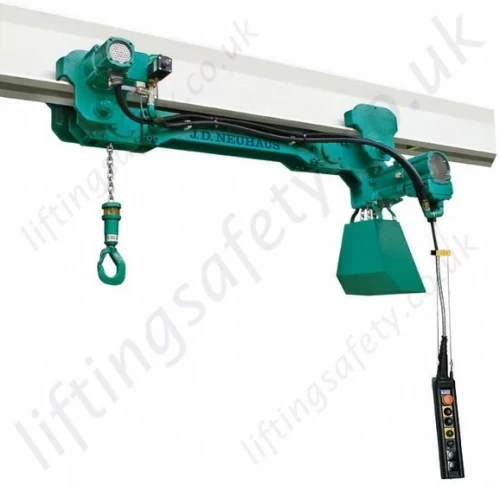

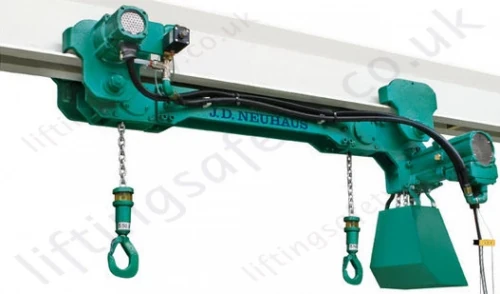

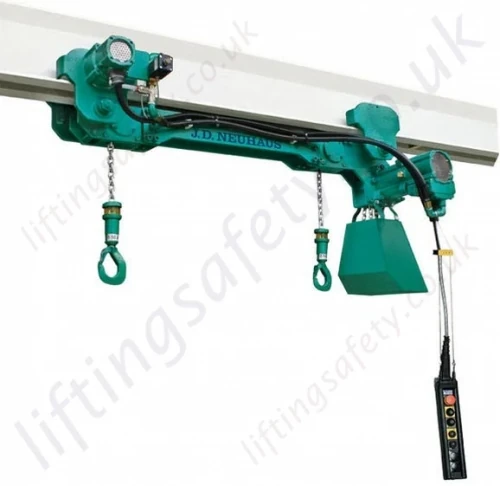

Twin Hook Big Bag Handling Hoist Single Hook Big Bag Hoist and Control Twin Hook Big Bag Handling Hoist and Control single hook technical drawing twin hook technical drawing

For big bag handling applications, J.D. Neuhaus offers innovative system solutions and thus meets the special requirements of this range of use.

JDN big bag handling air hoists are available at carrying capacities of 1100 kg and 2200 kg with an air pressure of 6 bar.

Designs with one or two load hooks

With one load hook for cross beams. The large distance between the hook and the chain box is particularly advantageous. This guarantees that there is no danger of collision between the load and the chain box. With two load hooks for more complex multi-point cross beams or simple rod cross beams with two means of suspension.

Standard Features

  • Particularly suited for use as big bag handling hoists and for the movement of all kinds of bulky loads due to the extreme low construction height.
  • Compact, modern design.
  • Usable as synchronised hoist in two-hook design.
  • Very economical and reliable due to the use of proven JDN serial components.
  • No additional motor lubrication required.
  • Fewer parts for operation free of maintenance and wear.
  • Chain box included in standard equipment.
  • Adjustable to various I-profiles; the hook distance can be adjusted later.
LiftingSafety Review:
The JDN Big Bag Hoist is a pneumatic hoist with single or tandem lifting facility, both hooks lift at the same time (Twin Hook lift) operated by the same pendant control. The hoist is low headroom with optional distances between hooks and capacities up to 2200kg SWL.

One Load Hook Specification

Type BBH 1000 BBH 2000
Number of hooks 1
Air pressure bar 6
Carrying capacity kg 1100 2200
Number of chain strands 1 2
Engine output hoist kW 0,7
Engine output trolley kW 0,2
Lifting speed at full load m/min 3,7 1,7
Lifting speed without load m/min 7,5 3,5
Lowering speed at full load m/min 10 5
Air consumption at full load - Lifting m³/min 1,4
Air consumption at full load - Lowering m³/min 1,2
Air consumption at full load - trolley m³/min 0,6
Air connection G ½
Hose dimension (Ø inside / Ø outside) mm 15 / 27
Weight at standard lift and K min kg 130 137
Chain dimension mm 7 x 21
Weight of 1 m chain kg 1
Standard lift m 3
Length of control at standard lift m 2
Sound level at full load - lifting dB(A) 76
Sound level at full load - lowering dB(A) 78
Sound level at full load - trolley dB(A) 80

One Load Hook Dimensions

Dimensions are in millimetres.

dimensions

Type BBH 1000 BBH 2000
A 332
B 163 / 220
b min 90
b max 310
C 182
E 195
F 95
G 159
H 388 438
J 192 220
K min 435 410
K max 1100
L -
M 28
N 250
P 70
R 116
t max 30



LiftingSafety Review:
The JDN Big Bag Hoist is a pneumatic hoist with single or tandem lifting facility, both hooks lift at the same time (Twin Hook lift) operated by the same pendant control. The hoist is low headroom with optional distances between hooks and capacities up to 2200kg SWL.

Two Load Hooks Specification

Type BBH 1000 BBH 2000
Number of hooks 2
Air pressure bar 6
Carrying capacity kg 1100 2200
Number of chain strands 2 4
Engine output hoist kW 0,7
Engine output trolley kW 0,2
Lifting speed at full load m/min 3,7 1,7
Lifting speed without load m/min 7,5 3,5
Lowering speed at full load m/min 10 5
Air consumption at full load - Lifting m³/min 1,4
Air consumption at full load - Lowering m³/min 1,2
Air consumption at full load - trolley m³/min 0,6
Air connection G ½
Hose dimension (Ø inside / Ø outside) mm 15 / 27
Weight at standard lift and K min kg 137 149
Chain dimension mm 7 x 21
Weight of 1 m chain kg 1
Standard lift m 3
Length of control at standard lift m 2
Sound level at full load - lifting dB(A) 76
Sound level at full load - lowering dB(A) 78
Sound level at full load - trolley dB(A) 80

Two Load Hooks Dimensions

Dimensions are in millimetres.

dimensions

Type BBH 1000 BBH 2000
A 332
B 163 / 220
b min 90
max 310
C 182
E 373 346
F 95
G 159
H 388 438
J 192 220
K min 260
max 1300
L 175 150
M 28
N 250
P 70
R 116
t max 30
LiftingSafety Review:
The JDN Big Bag Hoist is a pneumatic hoist with single or tandem lifting facility, both hooks lift at the same time (Twin Hook lift) operated by the same pendant control. The hoist is low headroom with optional distances between hooks and capacities up to 2200kg SWL.

Pricing

(min:3)
Unit Price Request Quote
Description

For big bag handling applications, J.D. Neuhaus offers innovative system solutions and thus meets the special requirements of this range of use.

JDN big bag handling air hoists are available at carrying capacities of 1100 kg and 2200 kg with an air pressure of 6 bar.

Designs with one or two load hooks

With one load hook for cross beams. The large distance between the hook and the chain box is particularly advantageous. This guarantees that there is no danger of collision between the load and the chain box. With two load hooks for more complex multi-point cross beams or simple rod cross beams with two means of suspension.

Standard Features

  • Particularly suited for use as big bag handling hoists and for the movement of all kinds of bulky loads due to the extreme low construction height.
  • Compact, modern design.
  • Usable as synchronised hoist in two-hook design.
  • Very economical and reliable due to the use of proven JDN serial components.
  • No additional motor lubrication required.
  • Fewer parts for operation free of maintenance and wear.
  • Chain box included in standard equipment.
  • Adjustable to various I-profiles; the hook distance can be adjusted later.
LiftingSafety Review:
The JDN Big Bag Hoist is a pneumatic hoist with single or tandem lifting facility, both hooks lift at the same time (Twin Hook lift) operated by the same pendant control. The hoist is low headroom with optional distances between hooks and capacities up to 2200kg SWL.
Single Hook Technical Information

One Load Hook Specification

Type BBH 1000 BBH 2000
Number of hooks 1
Air pressure bar 6
Carrying capacity kg 1100 2200
Number of chain strands 1 2
Engine output hoist kW 0,7
Engine output trolley kW 0,2
Lifting speed at full load m/min 3,7 1,7
Lifting speed without load m/min 7,5 3,5
Lowering speed at full load m/min 10 5
Air consumption at full load - Lifting m³/min 1,4
Air consumption at full load - Lowering m³/min 1,2
Air consumption at full load - trolley m³/min 0,6
Air connection G ½
Hose dimension (Ø inside / Ø outside) mm 15 / 27
Weight at standard lift and K min kg 130 137
Chain dimension mm 7 x 21
Weight of 1 m chain kg 1
Standard lift m 3
Length of control at standard lift m 2
Sound level at full load - lifting dB(A) 76
Sound level at full load - lowering dB(A) 78
Sound level at full load - trolley dB(A) 80

One Load Hook Dimensions

Dimensions are in millimetres.

dimensions

Type BBH 1000 BBH 2000
A 332
B 163 / 220
b min 90
b max 310
C 182
E 195
F 95
G 159
H 388 438
J 192 220
K min 435 410
K max 1100
L -
M 28
N 250
P 70
R 116
t max 30



LiftingSafety Review:
The JDN Big Bag Hoist is a pneumatic hoist with single or tandem lifting facility, both hooks lift at the same time (Twin Hook lift) operated by the same pendant control. The hoist is low headroom with optional distances between hooks and capacities up to 2200kg SWL.
Twin Hook Technical Information

Two Load Hooks Specification

Type BBH 1000 BBH 2000
Number of hooks 2
Air pressure bar 6
Carrying capacity kg 1100 2200
Number of chain strands 2 4
Engine output hoist kW 0,7
Engine output trolley kW 0,2
Lifting speed at full load m/min 3,7 1,7
Lifting speed without load m/min 7,5 3,5
Lowering speed at full load m/min 10 5
Air consumption at full load - Lifting m³/min 1,4
Air consumption at full load - Lowering m³/min 1,2
Air consumption at full load - trolley m³/min 0,6
Air connection G ½
Hose dimension (Ø inside / Ø outside) mm 15 / 27
Weight at standard lift and K min kg 137 149
Chain dimension mm 7 x 21
Weight of 1 m chain kg 1
Standard lift m 3
Length of control at standard lift m 2
Sound level at full load - lifting dB(A) 76
Sound level at full load - lowering dB(A) 78
Sound level at full load - trolley dB(A) 80

Two Load Hooks Dimensions

Dimensions are in millimetres.

dimensions

Type BBH 1000 BBH 2000
A 332
B 163 / 220
b min 90
max 310
C 182
E 373 346
F 95
G 159
H 388 438
J 192 220
K min 260
max 1300
L 175 150
M 28
N 250
P 70
R 116
t max 30
LiftingSafety Review:
The JDN Big Bag Hoist is a pneumatic hoist with single or tandem lifting facility, both hooks lift at the same time (Twin Hook lift) operated by the same pendant control. The hoist is low headroom with optional distances between hooks and capacities up to 2200kg SWL.
