JDN "UH" Monorail Ultra Low Air Hoists with Air Trolley

JDN "UH" Monorail Ultra Low Air Hoists with Air Trolley

Pneumatic Travel Mono-rail Hoists, 4 Tonne to 16 Tonne

Model:

JDN UL Monorail / ULMH-2748

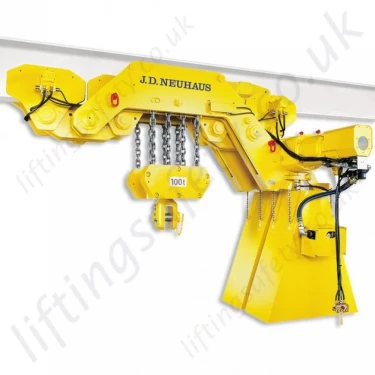

JDN "UH" Monorail Ultra Low Air Hoists with Air Trolley

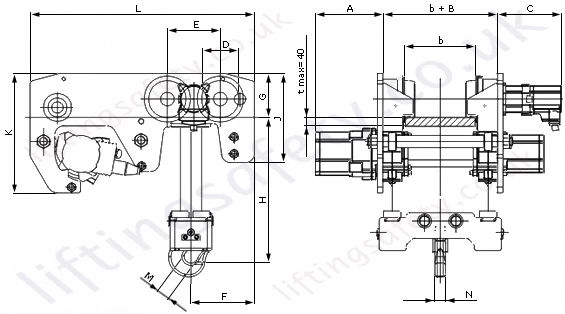

ultra low monorail hoist technical drawing
More from:
Jd Neuhaus Permanent Excellence

Where loads have to be lifted and transported in extremely reduced spaces the JDN Ultra-Low Monorail Hoists come to work. For example the monorail hoist with a load capacity of 6 t has a headroom of only 210 mm.

Standard Features

  • ideally suited for working in hazardous areas (explosion protection)
  • insensitive to humidity, dust and temperatures from -20 °C up to +70 °C
  • extremely low headroom
  • favourable air consumption
  • available also with increased spark protection
LiftingSafety Review:
JDN UL hoist offer ultra low headroom capability with capacities up to 100 tonne. This is the lowest headroom pneumatic hoist made by JDN. Obviously this is massively more expensive than the Profi range though if you location requires a low headroom design then this is a viable option. Robust design certified for offshore use and capable of operation in the most extreme weather conditions.

Specification and Dimensions

ul monorail hoist dimensions

Type   UH 4 UH 6 UH 8 UH 12 UH 16
Carrying capacity t 4,0 6,0 8,0 12,0 16,0
Number of chain strands   2 2 4 4 4
Engine output kW 2,5 2,5 2,5 2,5 2,5
Air pressure bar 6 6 6 6 6
Lifting speed at full load m/min 3,0 2,0 1,4 0,9 0,65
Lifting speed without load m/min 6,0 4,5 2,9 2,2 1,2
Lowering speed at full load m/min 7,5 5,2 3,6 2,5 1,5
Air consumption Lifting -full load- m³/min 4,0 4,0 4,0 4,0 4,0
Air consumption Lowering -full load- m³/min 5,5 5,5 5,5 5,5 5,5
Air connection   G ¾ G ¾ G ¾ G ¾ G ¾
Hose dimension (Ø inside /Ø outside) mm 19/31 19/31 19/31 19/31 19/31
Weight at standard lift without control kg 460 470 540 550 560
Chain dimension mm 13 x 36 13 x 36 13 x 36 13 x 36 13 x 36
Weight of 1 m chain kg 3,8 3,8 3,8 3,8 3,8
Standard lift m 3 3 3 3 3
Lenght of control at standard lift m 2 2 2 2 2
Dimensions UH 4 UH 6 UH 8 UH 12 UH 16
A mm 195 305 195 305 305
B mm 200 200 200 200 200
C mm 284 284 284 284 284
D mm 165 165 165 165 165
E mm 236 236 236 236 236
F mm 330 330 283 283 283
G mm 197,5 197,5 197,5 197,5 197,5
H min, 150 <=b <=310 mm 230 230
H min, 150 <=b <=230 mm     295 295 334
H min, 230 <=b <=310 mm     276 276 315
J mm 400 400 400 400 400
K mm 535 535 535 535 535
L mm 1000 1000 1000 1000 1000
M mm 40 40 44 44 53
N mm 51 51 66 66 82
LiftingSafety Review:
JDN UL hoist offer ultra low headroom capability with capacities up to 100 tonne. This is the lowest headroom pneumatic hoist made by JDN. Obviously this is massively more expensive than the Profi range though if you location requires a low headroom design then this is a viable option. Robust design certified for offshore use and capable of operation in the most extreme weather conditions.

Pricing

(min:3)
Unit Price Request Quote
Description

Where loads have to be lifted and transported in extremely reduced spaces the JDN Ultra-Low Monorail Hoists come to work. For example the monorail hoist with a load capacity of 6 t has a headroom of only 210 mm.

Standard Features

  • ideally suited for working in hazardous areas (explosion protection)
  • insensitive to humidity, dust and temperatures from -20 °C up to +70 °C
  • extremely low headroom
  • favourable air consumption
  • available also with increased spark protection
LiftingSafety Review:
JDN UL hoist offer ultra low headroom capability with capacities up to 100 tonne. This is the lowest headroom pneumatic hoist made by JDN. Obviously this is massively more expensive than the Profi range though if you location requires a low headroom design then this is a viable option. Robust design certified for offshore use and capable of operation in the most extreme weather conditions.
Technical Information

Specification and Dimensions

ul monorail hoist dimensions

Type   UH 4 UH 6 UH 8 UH 12 UH 16
Carrying capacity t 4,0 6,0 8,0 12,0 16,0
Number of chain strands   2 2 4 4 4
Engine output kW 2,5 2,5 2,5 2,5 2,5
Air pressure bar 6 6 6 6 6
Lifting speed at full load m/min 3,0 2,0 1,4 0,9 0,65
Lifting speed without load m/min 6,0 4,5 2,9 2,2 1,2
Lowering speed at full load m/min 7,5 5,2 3,6 2,5 1,5
Air consumption Lifting -full load- m³/min 4,0 4,0 4,0 4,0 4,0
Air consumption Lowering -full load- m³/min 5,5 5,5 5,5 5,5 5,5
Air connection   G ¾ G ¾ G ¾ G ¾ G ¾
Hose dimension (Ø inside /Ø outside) mm 19/31 19/31 19/31 19/31 19/31
Weight at standard lift without control kg 460 470 540 550 560
Chain dimension mm 13 x 36 13 x 36 13 x 36 13 x 36 13 x 36
Weight of 1 m chain kg 3,8 3,8 3,8 3,8 3,8
Standard lift m 3 3 3 3 3
Lenght of control at standard lift m 2 2 2 2 2
Dimensions UH 4 UH 6 UH 8 UH 12 UH 16
A mm 195 305 195 305 305
B mm 200 200 200 200 200
C mm 284 284 284 284 284
D mm 165 165 165 165 165
E mm 236 236 236 236 236
F mm 330 330 283 283 283
G mm 197,5 197,5 197,5 197,5 197,5
H min, 150 <=b <=310 mm 230 230
H min, 150 <=b <=230 mm     295 295 334
H min, 230 <=b <=310 mm     276 276 315
J mm 400 400 400 400 400
K mm 535 535 535 535 535
L mm 1000 1000 1000 1000 1000
M mm 40 40 44 44 53
N mm 51 51 66 66 82
LiftingSafety Review:
JDN UL hoist offer ultra low headroom capability with capacities up to 100 tonne. This is the lowest headroom pneumatic hoist made by JDN. Obviously this is massively more expensive than the Profi range though if you location requires a low headroom design then this is a viable option. Robust design certified for offshore use and capable of operation in the most extreme weather conditions.
