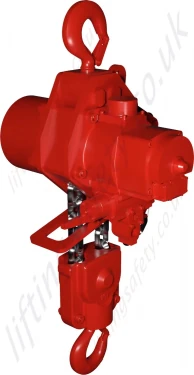

The perfect lifting solution for where the duty is high, or where a robust hoist is required to withstand harsh conditions. The TNC range of air hoists comply with the European Machinery Directive and are all CE-marked.
Standard Hoist Features
High-quality rotary vane air motor.
ATEX zone 2 specification.
Robust epicycle disc brake.
Mechanical upper & lower switches.
Cast steel housing.
Internal silencing down to 83 dB(A).
alloy safety swivel hooks with safety catch.
European manufactured load chain to EN818-7.
Automatic load limiter.
Available Options & Accessories
Marine specification.
Special paint systems.
Corrosion protection.
ATEX zone 1 specification.
Chain collectors (galvanised or stainless steel).
Air service units.
Festoon systems.
Radio control.
Main air shut off valve.
Hoist Specifications
Working Load Limit (WLL - kg)
10,000
15,000
20,000
25,000
37,500
50,000
Chain Falls
2
3
4
2
3
4
Lifting Speed With Load (m/min)
1.5
1.0
0.75
0.6
0.35
0.3
Lifting Speed Without Load (m/min)
2.5
1.6
1.25
1.0
0.6
0.4
Lowering Speed With Load (m/min)
2.3
1.5
1.15
0.7
0.5
0.35
Air Consumption When Lifting (l/sec)
90
90
90
90
90
90
Air Consumption When Lowering (l/sec)
100
100
100
100
100
100
Working Air Pressure (BAR)
6
6
6
6
6
6
Air Connection (BSP)
1”
1”
1”
1”
1”
1”
Minimum Hose Dia.
1”
1”
1”
1”
1”
1”
Weight at Standard 3m Height of Lift (kg)
210
320
470
490
870
1110
Weight Per Additional Metre of Lift (kg)
11.4
17.1
22.8
21.8
32.7
43.6
Hoist Dimensions & Specifications will be uploaded here soon..... if in the mean time if you do require these or any further information Contact us confirming the Model (in the little red box above) and Capacity and we will happily send what you need.....Thank you.
