Sala Advanced "Digital Winches". Twin Speed Man-riding Wire Rope Hoists, 204kg Capacity, Manual or Powered & Options to 91m Cable Length.
Manriding winch rated at 204 kg (450 lbs) working load limit with 2 cranking speeds.
Advanced Digital Winch / SADW-3524
The UCL Advanced Digital Series Winches are rated for a maximum working load of 204 kg (450 lbs) with an 11:1 safety factor. This winch offers 1 or 2 cranking speeds capable of retrieval/descent at average speeds from 13ft/min (4 m/min) up to 30 ft/min (9 m/min).
Available in 3 standard sizes, 100, 200 and 300 Series winches holding up to 300 feet of 3/16" (5mm) diameter cable/rope. This winch also accommodates various diameters of cables up to 3/8" and ropes up to 5/8". All cable/rope assemblies come with a double locking swivel snap hook with overload indicator.
Digital Series Winch features crank handle options: 2 speed removable or 1 speed permanent mounted handle. The removable handle can be combined with a power drive option giving the flexibility of manual or powered cranking options. A unique feature of the winch is the "digital usage indicator" system that counts the revolutions of the drum to determine service intervals and is exclusive to the Digital Series Winch.
Additional standard features include braking system with 3 independent working pawls, centrifugal back-up brake, carrying handle and cable
retainer spring.
Man Riding
For raising, lowering or supporting personnel. Working load 450 lbs (204 kg). Designed specifically for confined space entry/retrieval.
Digital Usage Indicator
The exclusive “digital usage indicator” system counts the revolutions of the drum to determine service intervals. Additional standard features include a braking system with 3 independent working pawls, centrifugal back-up brake, carrying handle and cable retainer spring.
Compliant Hardware
Double locking swivel safety snaps standard on all cables. Sealed bearings at all contact points. All hardware is Zinc plated. All components are zinc-plated steel or anodized aluminum.
Triple Redundant Braking Mechanism
A friction brake is engaged by a minimum of 5 lbs (2 kg). Brake pad wear indicator monitors the condition of the braking mechanism, which features an inertial (centrifugal) safety back up brake.
UCL Digital Winches come with a standard 5 year or 30,000 cycle count service interval.
- Man rated for raising, lowering or supporting personnel.
- Designed specifically for confined space entry/retrieval.
- Digital usage indicator monitors extent of winch use.
- The load can only move if the handle is turned. A friction brake is engaged by a minimum of 5 lbs weight.
- Triple redundant braking mechanism with inertial (centrifugal) safety back up brake.
- Brake pad wear indicator constantly monitors the condition of the braking mechanism.
- Lightweight (35 lbs)with durable, powder-coated, cast aluminum housing.
- Working load 450 lbs.
- Double locking swivel safety snaps standard on all cables.
- Sealed bearings at all contact points.
- All hardware is Zinc plated.
- All components are zinc-plated steel or anodized aluminum.
Specifications
Manual Operated Hoists, 2 Speed 4 & 9 Mtr/min
| Model | Rope Type | Actual Rope Length | Usable Working Length | Weight |
| Advanced 100 Series 2 Speed Winch, 21 or 30 metre HOL | ||||
| 8518560 | Galvanized Cable | 21 m (70 ft) | 18 m (60 ft) | 13.8 kg (30.5 lbs) |
| 8518558 | Stainless Steel | 21 m (70 ft) | 18 m (60 ft) | 13.8 kg (30.5 lbs) |
| 8518561 | Galvanized Cable | 30 m (100 ft) | 27 m (90 ft) | 14.7 kg (32.5 lbs) |
| 8518559 | Stainless Steel | 30 m (100 ft) | 27 m (90 ft) | 14.7 kg (32.5 lbs) |
| Advanced 200 Series 2 Speed Winch, 45 or 61 metre HOL | ||||
| 8518581 | Galvanized Cable | 45 m (150 ft) | 42 m (140 ft) | 18.4 kg (40 lbs) |
| 8518579 | Stainless Steel | 45 m (150 ft) | 42 m (140 ft) | 18.4 kg (40 lbs) |
| 8518582 | Galvanized Cable | 61 m (200 ft) | 58 m (190 ft) | 19.5 kg (43 lbs) |
| 8518580 | Stainless Steel | 61 m (200 ft) | 58 m (190 ft) | 19.5 kg (43 lbs) |
| Advanced 300 Series 2 Speed Winch, 76 or 91 metre HOL | ||||
| 8518603 | Galvanized Cable | 76 m (250 ft) | 73 m (240 ft) | 22.6 kg (50 lbs) |
| 8518601 | Stainless Steel | 76 m (250 ft) | 73 m (240 ft) | 22.6 kg (50 lbs) |
| 8518604 | Galvanized Cable | 91 m (300 ft) | 88 m (290 ft) | 24.3 kg (53.5 lbs) |
| 8518602 | Stainless Steel | 91 m (300 ft) | 88 m (290 ft) | 24.3 kg (53.5 lbs) |
Powered Drive Hoists, 9 mtr/min (With Manual Backup, 4 mr/min)
| Model | Rope Type | Actual Rope Length | Usable Working Length | Weight |
| Advanced 100 Series 2 Speed Winch, 21 or 30 metre HOL | ||||
| 8518567 | Galvanized Cable | 21 m (70 ft) | 18 m (60 ft) | 13.8 kg (30.5 lbs) |
| 8518565 | Stainless Steel | 21 m (70 ft) | 18 m (60 ft) | 13.8 kg (30.5 lbs) |
| 8518568 | Galvanized Cable | 30 m (100 ft) | 27 m (90 ft) | 14.7 kg (32.5 lbs) |
| 8518566 | Stainless Steel | 30 m (100 ft) | 27 m (90 ft) | 14.7 kg (32.5 lbs) |
| Advanced 200 Series 2 Speed Winch, 45 or 61 metre HOL | ||||
| 8518588 | Galvanized Cable | 45 m (150 ft) | 42 m (140 ft) | 18.4 kg (40 lbs) |
| 8518586 | Stainless Steel | 45 m (150 ft) | 42 m (140 ft) | 18.4 kg (40 lbs) |
| 8518589 | Galvanized Cable | 61 m (200 ft) | 58 m (190 ft) | 19.5 kg (43 lbs) |
| 8518587 | Stainless Steel | 61 m (200 ft) | 58 m (190 ft) | 19.5 kg (43 lbs) |
| Advanced 300 Series 2 Speed Winch, 76 or 91 metre HOL | ||||
| 8518610 | Galvanized Cable | 76 m (250 ft) | 73 m (240 ft) | 22.6 kg (50 lbs) |
| 8518608 | Stainless Steel | 76 m (250 ft) | 73 m (240 ft) | 22.6 kg (50 lbs) |
| 8518611 | Galvanized Cable | 91 m (300 ft) | 88 m (290 ft) | 24.3 kg (53.5 lbs) |
| 8518609 | Stainless Steel | 91 m (300 ft) | 88 m (290 ft) | 24.3 kg (53.5 lbs) |
Manual Drive
This manual powered Advanced Digital Series Winch includes a removable aluminum crank handle to utilize both our 9:1 and 4:1 drives.
These two drives offer the capability of retrieval/descent at average speeds from 13 ft/min (4 m/min) up to 30 ft/min (9 m/min).
Powered Drive

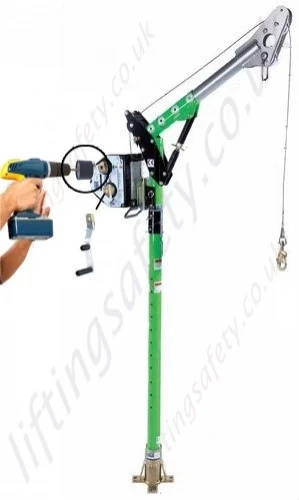

The 'drill' powered Advanced Power Drive Digital Winch features a power drive hub on the 9:1 drive. An overload protection clutch installs between this power drive hub and an electric or pneumatic drill to eliminate overloading the winch during retrieval. This clutch also protects the winch operator and the retrieved worker from injury.
The clutch is installed and removed without the use of tools when switching to the 4:1 manual crank option in emergencies.
(8512936: Overload Protection Clutch sold separately.)
Winch Accessories
 |
 |
 |
|
Winch / SRL Adapter with Flat Back To attach DBI-Sala winch / LR to structures. 8510207 |
Quick release Mounting Bracket For Advanced Upper and Lower Masts. 8516824 |
Mounting Bracket Attaches to winch, mates with 8510207. 8516285 |
 |
 |
|
Overload Protection Clutch Features a maximum working |
Padded Carrying Bag For Basic or Digital winch, |
The UCL Advanced Digital Series Winches are rated for a maximum working load of 204 kg (450 lbs) with an 11:1 safety factor. This winch offers 1 or 2 cranking speeds capable of retrieval/descent at average speeds from 13ft/min (4 m/min) up to 30 ft/min (9 m/min).
Available in 3 standard sizes, 100, 200 and 300 Series winches holding up to 300 feet of 3/16" (5mm) diameter cable/rope. This winch also accommodates various diameters of cables up to 3/8" and ropes up to 5/8". All cable/rope assemblies come with a double locking swivel snap hook with overload indicator.
Digital Series Winch features crank handle options: 2 speed removable or 1 speed permanent mounted handle. The removable handle can be combined with a power drive option giving the flexibility of manual or powered cranking options. A unique feature of the winch is the "digital usage indicator" system that counts the revolutions of the drum to determine service intervals and is exclusive to the Digital Series Winch.
Additional standard features include braking system with 3 independent working pawls, centrifugal back-up brake, carrying handle and cable
retainer spring.
Man Riding
For raising, lowering or supporting personnel. Working load 450 lbs (204 kg). Designed specifically for confined space entry/retrieval.
Digital Usage Indicator
The exclusive “digital usage indicator” system counts the revolutions of the drum to determine service intervals. Additional standard features include a braking system with 3 independent working pawls, centrifugal back-up brake, carrying handle and cable retainer spring.
Compliant Hardware
Double locking swivel safety snaps standard on all cables. Sealed bearings at all contact points. All hardware is Zinc plated. All components are zinc-plated steel or anodized aluminum.
Triple Redundant Braking Mechanism
A friction brake is engaged by a minimum of 5 lbs (2 kg). Brake pad wear indicator monitors the condition of the braking mechanism, which features an inertial (centrifugal) safety back up brake.
UCL Digital Winches come with a standard 5 year or 30,000 cycle count service interval.
- Man rated for raising, lowering or supporting personnel.
- Designed specifically for confined space entry/retrieval.
- Digital usage indicator monitors extent of winch use.
- The load can only move if the handle is turned. A friction brake is engaged by a minimum of 5 lbs weight.
- Triple redundant braking mechanism with inertial (centrifugal) safety back up brake.
- Brake pad wear indicator constantly monitors the condition of the braking mechanism.
- Lightweight (35 lbs)with durable, powder-coated, cast aluminum housing.
- Working load 450 lbs.
- Double locking swivel safety snaps standard on all cables.
- Sealed bearings at all contact points.
- All hardware is Zinc plated.
- All components are zinc-plated steel or anodized aluminum.
Specifications
Manual Operated Hoists, 2 Speed 4 & 9 Mtr/min
| Model | Rope Type | Actual Rope Length | Usable Working Length | Weight |
| Advanced 100 Series 2 Speed Winch, 21 or 30 metre HOL | ||||
| 8518560 | Galvanized Cable | 21 m (70 ft) | 18 m (60 ft) | 13.8 kg (30.5 lbs) |
| 8518558 | Stainless Steel | 21 m (70 ft) | 18 m (60 ft) | 13.8 kg (30.5 lbs) |
| 8518561 | Galvanized Cable | 30 m (100 ft) | 27 m (90 ft) | 14.7 kg (32.5 lbs) |
| 8518559 | Stainless Steel | 30 m (100 ft) | 27 m (90 ft) | 14.7 kg (32.5 lbs) |
| Advanced 200 Series 2 Speed Winch, 45 or 61 metre HOL | ||||
| 8518581 | Galvanized Cable | 45 m (150 ft) | 42 m (140 ft) | 18.4 kg (40 lbs) |
| 8518579 | Stainless Steel | 45 m (150 ft) | 42 m (140 ft) | 18.4 kg (40 lbs) |
| 8518582 | Galvanized Cable | 61 m (200 ft) | 58 m (190 ft) | 19.5 kg (43 lbs) |
| 8518580 | Stainless Steel | 61 m (200 ft) | 58 m (190 ft) | 19.5 kg (43 lbs) |
| Advanced 300 Series 2 Speed Winch, 76 or 91 metre HOL | ||||
| 8518603 | Galvanized Cable | 76 m (250 ft) | 73 m (240 ft) | 22.6 kg (50 lbs) |
| 8518601 | Stainless Steel | 76 m (250 ft) | 73 m (240 ft) | 22.6 kg (50 lbs) |
| 8518604 | Galvanized Cable | 91 m (300 ft) | 88 m (290 ft) | 24.3 kg (53.5 lbs) |
| 8518602 | Stainless Steel | 91 m (300 ft) | 88 m (290 ft) | 24.3 kg (53.5 lbs) |
Powered Drive Hoists, 9 mtr/min (With Manual Backup, 4 mr/min)
| Model | Rope Type | Actual Rope Length | Usable Working Length | Weight |
| Advanced 100 Series 2 Speed Winch, 21 or 30 metre HOL | ||||
| 8518567 | Galvanized Cable | 21 m (70 ft) | 18 m (60 ft) | 13.8 kg (30.5 lbs) |
| 8518565 | Stainless Steel | 21 m (70 ft) | 18 m (60 ft) | 13.8 kg (30.5 lbs) |
| 8518568 | Galvanized Cable | 30 m (100 ft) | 27 m (90 ft) | 14.7 kg (32.5 lbs) |
| 8518566 | Stainless Steel | 30 m (100 ft) | 27 m (90 ft) | 14.7 kg (32.5 lbs) |
| Advanced 200 Series 2 Speed Winch, 45 or 61 metre HOL | ||||
| 8518588 | Galvanized Cable | 45 m (150 ft) | 42 m (140 ft) | 18.4 kg (40 lbs) |
| 8518586 | Stainless Steel | 45 m (150 ft) | 42 m (140 ft) | 18.4 kg (40 lbs) |
| 8518589 | Galvanized Cable | 61 m (200 ft) | 58 m (190 ft) | 19.5 kg (43 lbs) |
| 8518587 | Stainless Steel | 61 m (200 ft) | 58 m (190 ft) | 19.5 kg (43 lbs) |
| Advanced 300 Series 2 Speed Winch, 76 or 91 metre HOL | ||||
| 8518610 | Galvanized Cable | 76 m (250 ft) | 73 m (240 ft) | 22.6 kg (50 lbs) |
| 8518608 | Stainless Steel | 76 m (250 ft) | 73 m (240 ft) | 22.6 kg (50 lbs) |
| 8518611 | Galvanized Cable | 91 m (300 ft) | 88 m (290 ft) | 24.3 kg (53.5 lbs) |
| 8518609 | Stainless Steel | 91 m (300 ft) | 88 m (290 ft) | 24.3 kg (53.5 lbs) |
Manual Drive
This manual powered Advanced Digital Series Winch includes a removable aluminum crank handle to utilize both our 9:1 and 4:1 drives.
These two drives offer the capability of retrieval/descent at average speeds from 13 ft/min (4 m/min) up to 30 ft/min (9 m/min).
Powered Drive
The 'drill' powered Advanced Power Drive Digital Winch features a power drive hub on the 9:1 drive. An overload protection clutch installs between this power drive hub and an electric or pneumatic drill to eliminate overloading the winch during retrieval. This clutch also protects the winch operator and the retrieved worker from injury.
The clutch is installed and removed without the use of tools when switching to the 4:1 manual crank option in emergencies.
(8512936: Overload Protection Clutch sold separately.)
Winch Accessories
|
|
|
|
Winch / SRL Adapter with Flat Back To attach DBI-Sala winch / LR to structures. 8510207 |
Quick release Mounting Bracket For Advanced Upper and Lower Masts. 8516824 |
Mounting Bracket Attaches to winch, mates with 8510207. 8516285 |
|
|
|
Overload Protection Clutch Features a maximum working |
Padded Carrying Bag For Basic or Digital winch, |
