Aluminium "Multilift" Counter Balance Lifting Crane, 250kg Capacity

Lightweight Aluminium Counterbalanced Floor Crane with Changeable Extension Arm and Lifting Forks and 2 Part Counter Balance Trolley with Counterweight.

Model:

AMFC-4732


A robust aluminium counter balance floor crane with interchangeable lifting forks and an extension arm (both provided as standard), that provides a lifting solution of many different lifting scenarios. The Multilift has been especially developed for companies that are in need of a mobile lifting device.

The Multilift's mast can be split, and the crane can be completely folded with minimum effort, making it space saving for storage, and ideal for transportation in the back of a van.

The lifting operation is performed by a manual cable winch, positioned at an ergonomical working height.

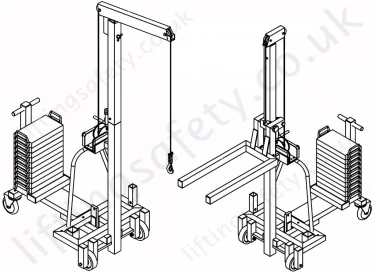

Aluminium Counter Weight Floor Crane With Extension Arm

Aluminium Counter Balance Floor Crane Fitted with Extension Arm Attachment

Aluminium Counter Weight Floor Crane With Lifting Forks

Aluminium Counter Balance Floor Crane Fitted with Lifting Fork Attachment

Product Features

  • Load Capacity: 250kg.
  • Weight: 400kg.
  • Extension Arm Reach: 600mm.
  • 2300mm Hook Travel (Extension Arm Attachment).
  • Lifting Height: 95-2000mm (Lift Fork Attachment).
  • Cable fitted with Stainless Steel Swivel Snap Hook (for Extension Arm).
  • Includes 11 Counter Weights.
  • Counter Weights can be removed and Base Unit (trolley) cam be split for ease of transportation.
  • Bespoke versions are available, contact us to discuss your requirements.

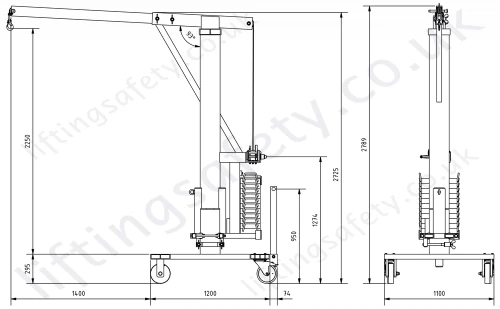

Dimensions

Aluminium Counter Weight Floor Crane With Extension Arm Dimensions

Fitted with Extension Arm Attachment

Aluminium Counter Weight Floor Crane With Lifting Forks Dimensions

Fitted with Lifting Forks

Aluminium Counter Weight Floor Crane Dimensions

Compacted for Storage

Bespoke Crane Examples

Bespoke Aluminium Counter Balance Floor Crane
Custom Aluminium Counter Balance Floor Crane

A robust aluminium counter balance floor crane with interchangeable lifting forks and an extension arm (both provided as standard), that provides a lifting solution of many different lifting scenarios. The Multilift has been especially developed for companies that are in need of a mobile lifting device.

The Multilift's mast can be split, and the crane can be completely folded with minimum effort, making it space saving for storage, and ideal for transportation in the back of a van.

The lifting operation is performed by a manual cable winch, positioned at an ergonomical working height.

Aluminium Counter Weight Floor Crane With Extension Arm

Aluminium Counter Balance Floor Crane Fitted with Extension Arm Attachment

Aluminium Counter Weight Floor Crane With Lifting Forks

Aluminium Counter Balance Floor Crane Fitted with Lifting Fork Attachment

Product Features

  • Load Capacity: 250kg.
  • Weight: 400kg.
  • Extension Arm Reach: 600mm.
  • 2300mm Hook Travel (Extension Arm Attachment).
  • Lifting Height: 95-2000mm (Lift Fork Attachment).
  • Cable fitted with Stainless Steel Swivel Snap Hook (for Extension Arm).
  • Includes 11 Counter Weights.
  • Counter Weights can be removed and Base Unit (trolley) cam be split for ease of transportation.
  • Bespoke versions are available, contact us to discuss your requirements.

Dimensions

Aluminium Counter Weight Floor Crane With Extension Arm Dimensions

Fitted with Extension Arm Attachment

Aluminium Counter Weight Floor Crane With Lifting Forks Dimensions

Fitted with Lifting Forks

Aluminium Counter Weight Floor Crane Dimensions

Compacted for Storage

Bespoke Crane Examples

Bespoke Aluminium Counter Balance Floor Crane
Custom Aluminium Counter Balance Floor Crane
