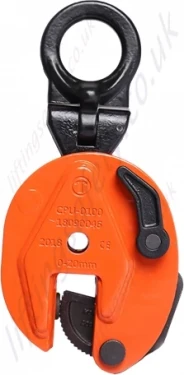

Tiger CPU Vertical Lifting Plate Clamp - Range from 500kg to 5000kg

Tiger Standard Vertical Plate Lifting Clamp, for Plate Thicknesses up to 50mm

Model:

TCVL-4942


The Tiger CPU Clamp with it articulated lifting shackle can be used for lifting and transporting steel plates and structures from all positions (horizontal, vertical and sidelong). As well as transporting plate, this clamp is well-suited to turning over steel structures and welded constructions.

It is designed to be used with a two leg chain sling for lifting longer plates without the need for a spreader beam.

The CPU is equipped with a pre-tension mechanism ensuring the clamp does not slip when lifting force is applied and when a load is being lowered.

Plate Clamps should not be used if the surface temperature of the material being lifted is above 100°C. (212°F). The ambient temperature of the operating environment should not be lower than -20°C (-4°F) and not be higher than +50°C. (122°F).

  • 0.5t to 5.0t capacities available.
  • Articulating lifting shackle.
  • No tools required – integrated adjusting handle.
  • For lifting and transporting steel plates and structures from all positions (horizontal, vertical and side loading).
  • For use with plates with surface hardness of up to 300 Brinell (HB) / 32 Rockwell C (HRC).
  • Suitable for plates ranging from 0-50mm (model dependent).

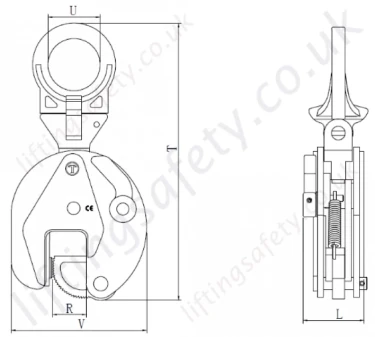

Dimensions and Specifications

Capacity R - Jaw Opening (mm) T (mm) U (mm) V (mm) L (mm) Weight (kg)
0.5t 0-15 205 30 105 48 2
1.0t 0-20 300 50 145 66 5
2.0t 0-25 385 68 175 75 8
3.2t 0-30 430 75 215 102 15
5.0t 0-50 500 68 232 112 21
Tiger Cpu Universal Plate Clamp
Part N° Capacity (t) Jaw Opening (mm) Weight (kg) Unit Price Quantity
4942-T24827 0.5t 0-15 2.0 £  108.75
4942-T24828 1.0t 0-20 5.0 £  180.00
4942-T24829 2.0t 0-25 8.0 £  220.00
4942-T24830 3.2t 0-30 15.0 £  264.75
4942-T24831 5.0t 0-50 21.0 £  300.00
Pricing Currency: Not available at the moment. Add To Quote Request   ?

The Tiger CPU Clamp with it articulated lifting shackle can be used for lifting and transporting steel plates and structures from all positions (horizontal, vertical and sidelong). As well as transporting plate, this clamp is well-suited to turning over steel structures and welded constructions.

It is designed to be used with a two leg chain sling for lifting longer plates without the need for a spreader beam.

The CPU is equipped with a pre-tension mechanism ensuring the clamp does not slip when lifting force is applied and when a load is being lowered.

Plate Clamps should not be used if the surface temperature of the material being lifted is above 100°C. (212°F). The ambient temperature of the operating environment should not be lower than -20°C (-4°F) and not be higher than +50°C. (122°F).

  • 0.5t to 5.0t capacities available.
  • Articulating lifting shackle.
  • No tools required – integrated adjusting handle.
  • For lifting and transporting steel plates and structures from all positions (horizontal, vertical and side loading).
  • For use with plates with surface hardness of up to 300 Brinell (HB) / 32 Rockwell C (HRC).
  • Suitable for plates ranging from 0-50mm (model dependent).

Dimensions and Specifications

Capacity R - Jaw Opening (mm) T (mm) U (mm) V (mm) L (mm) Weight (kg)
0.5t 0-15 205 30 105 48 2
1.0t 0-20 300 50 145 66 5
2.0t 0-25 385 68 175 75 8
3.2t 0-30 430 75 215 102 15
5.0t 0-50 500 68 232 112 21
Tiger Cpu Universal Plate Clamp
Part N° Capacity (t) Jaw Opening (mm) Weight (kg) Unit Price Quantity
4942-T24827 0.5t 0-15 2.0 £  108.75
4942-T24828 1.0t 0-20 5.0 £  180.00
4942-T24829 2.0t 0-25 8.0 £  220.00
4942-T24830 3.2t 0-30 15.0 £  264.75
4942-T24831 5.0t 0-50 21.0 £  300.00
Pricing Currency: Not available at the moment. Add To Quote Request   ?

Contact Us About This Product
