Alloy Split Top Beam Lifting Gantry, 1000kg or 1500kg x 4m Beam Length (longer available). Top Beam Splits in 2 Pieces (6 Options)
Adjustable light weight aluminium gantry crane with a top beam that splits in two pieces, has folding legs, not movable under load.
STBAG-3103
Close up of the Split Top Beam
A range of 6 top quality German made adjustable lightweight alloy lifting gantries that are designed extremely portable. The horizontal (overhead) lifting beam splits into two pieces so that is can easily be transported between locations and will fit into most small vans. This gantry style is without Castor's and not movable under load. The gantry has vertical adjustable in two positions, at the extremity legs and o the central vertical column giving a wide adjustable range and also the ability to adjust each individual leg to maintain a level top beam for use on uneven ground (rough terrain)
The Unique design of our lifting gantry also enables horizontal adjustment; quickly and infinitely adjustable.
Each of the legs / vertical supports collapses for ease of transport making the gantry easily handled and moved by the user.
Included as standard is a braked load trolley that is supported on the 'box section' top lifting beam, the trolley is low headroom design providing a smooth and safe means of traversing a load.
All the Gantries in this range can be supplied certified for manriding, fall arrest and rescue applications for persons working at height or in confined spaces.
Gantry is available in three main sizes (height ranges):
- Small Gantries (2 options)
- 1000kg and 1500kg;
- 1735mm min. height;
- 2735mm max. height;
- Beam length: 4 metres (available up to 8 metres on request).
- See the tab above labelled 'Small Sizes' for technical information on the small gantry crane.
- Medium Gantries (2 options)
- 1000kg and 1500kg;
- 2125mm min. height;
- 3375mm max. height;
- Beam length: 4 metres (available up to 8 metres on request).
- See the tab above labelled 'Medium Sizes' for technical information on the medium gantry crane.
- High Gantries (2 options)
- 1000kg and 1500kg;
- 2700mm min. height;
- 4400mm max. height;
- Beam length: 4 metres (available up to 8 metres on request).
- See the tab above labelled 'High Sizes' for technical information on the high gantry crane.
Adjustable Crane Features
Labelled Image
Small Split Top Beam Gantry Crane Technical Specifications
Small Split Top Beam Cranes
Dimensional specifications for the small aluminium gantry crane with collapsible lateral stands and fixed feet.
Please note that we are able to supply split beams up to 8 metres
Item N° | Load capacity | Total height | Beam length | Suspension point at the bolt of the trolley | Lower edge alu-beam | Adjustment range | Lateral stand | Weight | ||||||
min. | max. | Clear width | Total | min. | max. | min. | max. | beam support | telescopic foot | width | height | |||
(kg) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | |
3103-T5035 | 1000 | 1735 | 2735 | 4000** | 4164** | 1360 | 2360 | 1440 | 2440 | 600 | 400 | 1295 | 1554 | 95 |
3103-T23624 | 1500 | 1735 | 2735 | 4000** | 4164** | 1360 | 2360 | 1420 | 2420 | 600 | 400 | 1295 | 1554 | 102 |
Component Weights and Dimensions
Item n° | Load capacity (kg) | Beam length (mm) | Beam support (mm) | Beam profile (mm) | Beam sleeve (mm) | Total weight (kg) | Aluminium beam (kg) | Lateral stand (kg) | Trolley (kg) | Horizontal adjuster (kg) |
3103-T5035 | 1000 | 4000** | 60 x 60 | 200 x 50 | 82 x 82 | 95 | 30 | 2 x 27 | 7 | 4 |
3103-T23624 | 1500 | 4000** | 60 x 60 | 220 x 60 | 82 x 82 | 102 | 36 | 2 x 27 | 7 | 5 |
** Longer beams are available. Please see the 'Pricing (Buy/Quote)' tab above.
Medium Split Top Beam Gantry Crane Technical Specifications
Medium Split Top Beam Cranes
Dimensional specifications for the medium aluminium gantry crane with collapsible lateral stands and fixed feet.
Please note that we are able to supply split beams up to 8 metres
Item N° | Load capacity | Total height | Beam length | Suspension point at the bolt of the trolley | Lower edge alu-beam | Adjustment range | Lateral stand | Weight | ||||||
min. | max. | Clear width | Total | min. | max. | min. | max. | beam support | telescopic foot | width | height | |||
(kg) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | |
3103-T5043 | 1000 | 2125 | 3375 | 4000** | 4164** | 1750 | 3000 | 1830 | 3080 | 850 | 400 | 1743 | 1943 | 105 |
3103-T5048 | 1500 | 2125 | 3375 | 4000** | 4164** | 1750 | 3000 | 1810 | 3060 | 850 | 400 | 1743 | 1943 | 126 |

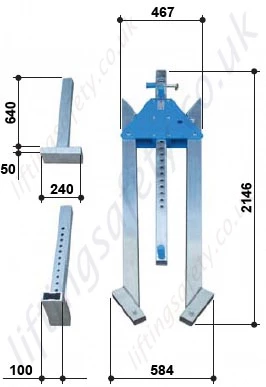

Component Weights and Dimensions
Item n° | Load capacity (kg) | Beam length (mm) | Beam support (mm) | Beam profile (mm) | Beam sleeve (mm) | Total weight (kg) | Aluminium beam (kg) | Lateral stand (kg) | Trolley (kg) | Horizontal adjuster (kg) |
3103-T5043 | 1000 | 4000** | 60 x 60 | 200 x 50 | 82 x 82 | 105 | 30 | 2 x 32 | 7 | 4 |
3103-T23630 | 1500 | 4000** | 60 x 60 | 220 x 60 | 82 x 82 | 126 | 36 | 2 x 39 | 7 | 5 |
* with larger profile thickness.
** Longer beams are available. Please see the 'Pricing (Buy/Quote)' tab above.
High Split Top Beam Gantry Crane Technical Specifications
High Split Top Beam Cranes
Dimensional specifications for the high aluminium gantry crane with collapsible lateral stands and fixed feet.
Please note that we are able to supply split beams up to 8 metres
Item N° | Load capacity | Total height | Beam length | Suspension point at the bolt of the trolley | Lower edge alu-beam | Adjustment range | Lateral stand | Weight | ||||||
min. | max. | Clear width | Total | min. | max. | min. | max. | beam support | telescopic foot | width | height | |||
(kg) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | |
3103-T5051 | 1000 | 2700 | 4400 | 4000 | 4184 | 2325 | 4025 | 2405 | 4105 | 1300 | 400 | 2238 | 2363 | 166 |
3103-T5056 | 1500 | 2700 | 4400 | 4000 | 4184 | 2325 | 4025 | 2385 | 4085 | 1300 | 400 | 2238 | 2363 | 172 |
Component Weights and Dimensions
Item n° | Load capacity (kg) | Beam length (mm) | Beam support (mm) | Beam profile (mm) | Beam sleeve (mm) | Total weight (kg) | Aluminium beam (kg) | Lateral stand (kg) | Trolley (kg) | Horizontal adjuster (kg) |
3103-T5051 | 1000 | 4000 | 70 x 70 | 200 x 50 | 92 x 92 | 166 | 30 | 2 x 57 | 7 | 15 |
3103-T5056 | 1500 | 4000 | 70 x 70 | 220 x 60 | 92 x 92 | 172 | 36 | 2 x 57 | 7 | 15 |
Optional Gantry Features
If you require any of the features below please feel free to contact us and we will be happy to assist you in finding the correct gantry and fittings for your lifting application.
Wall Bracket
Designed to fix one end of the beam to a wall.
The wall bracket is made out of steel
The beam can be rotated on the Wall Bracket through 180°.
Fixing’s, fasteners and suitability of the supporting structure is the responsibility of the customer.
See Downloads tab for bracket GA Drawing
Wheel Kits - spring loaded (not for movement under load)
Wheel kit for stationary Gantry Cranes:
The advantage of the wheel kits is that you have the stability of a stationary gantry crane combined with the flexibility to move the crane to another position. E.g. the crane will be used in a factory building and when needed in more than just one spot they can move the crane to the area that they need to do further work. As soon as load is applied to the crane the frame around the casters will be pushed onto the floor and the crane will rest on this frame and no longer on the castors. As soon as the load is taken off the gantry the crane will raise slightly once more making the gantry mobile so that it can be moved to the next working area. Without that wheel kit the crane would need to be disassembled for transport to the next working area or manually carried.
This wheel kit facilitates the moving of the assembled gantry crane, without load. (not under load)
- The spring mounted guide rolls allow the crane's lateral stands to rest directly on the supports when under greater loads.
- The leg and forks construction permits the lateral stands to remain upright when assembling and dis-assembling the crane.
- The fork legs are individually height adjustable.
- 1 wheel kit = 4 x castors (forked supports)
Wheel Kit - Polyurethane Lining
Attention:
- When using this wheel kit together with this aluminium gantry crane the minimum suspension point at the trolley pin is increased by 360mm and the maximum suspension point at the trolley pin is increases by 160mm.
- The adjustment range of the wheel kit legs is 200mm.
Kit Features:
- 4 Steel Castors.
- With integrated wheel and live ring brake.
- For indoor moving of the crane without load.
- Weight: 60kg.
Wheel Kit - Polyurethane Foam Tyres
Attention:
- When using this wheel kit together with this aluminium gantry crane the minimum suspension point at the trolley pin is increased by 400mm and the maximum suspension point at the trolley pin is increases by 200mm.
- The adjustment range of the wheel kit legs is 200mm.
Kit Features:
- 4 Steel Castors.
- With integrated wheel and live ring brake.
- For indoor and outdoor moving of the crane without load.
- Weight: 60kg.
Crane Transporter
Designed to transport this type of gantry crane around from location to location whilst packed away reducing manual effort.
If the assembly site cannot be directly reached by vehicle, the easy handling of the crane transporter makes it possible to transport the gantry crane conveniently over distance.
Where the crane is used adjacent to the site you can do without a vehicle altogether.
The accessories of the crane can also be safely carried on the crane transporter.
Weight: 30kg (small and medium cranes), 32kg (high cranes).
Chain Hoist
A choice of compact and lightweight hand chain hoists from a number of reputable manufacturers made from high quality materials.
Hoist Features
- Minimum weight, thus easy to hang up.
- Two-step spur gear.
- Safe working loads to suit your application
- High-strength, galvanised round link chain according to DIN 5684.
- Corrosion resistant option, better suited for outdoor use.
- Ball-bearing load hook.
- The closed housing protects the drive and brake against dirt.
- All mechanical parts are made from high quality steel.
- Load hook comes complete with integrated safety catch.
Electric Chain Hoist
This electric hoist is a hook suspended version and it is manufactured in accordance with EU - Machinery Directive and Equipment Safety Law. We can offer electric hoists to suit your application from a wide selection of manufacturers tailored to suit your requirements.
Hoist Features
- IP rating to your specification
- SWL to match with your choice of gantry
- Suitable for internal or exterior use.
- Power supply single phase or 3 phase, 110v, 240v or 415v.
Lifting Mechanism Specifics
- Ambient temperature rating -20 to +40°C
- Lifting speed to suit your requirements, single or dual speed
- Duty cycle to your spec
- Galvanised chain.
Electrical Features
- Operating voltage: options
- Low voltage pendant control
- Control unit including control cable.
- Control unit protection class: IP66
- Can also be delivered with radio control.
Cable System/Power Supply
Features
- Power supply 110v, 230 or 400 V / 16 Amp. 50 Hz.
- Spring recoil - PUR-coil lead (memory cable - curly wirly cable) or spring recoil power supply festoon option.
- The electrical connection for the chain hoist is made using a plug and socket connection (Protection Class DIN EN 60529 IP66).
- All electrical components can be appropriate for internal and external operating conditions.
Hand Winch
- For height adjustment. (raise and lower the vertical column)
- 1 set = 2 pieces (1 hand winch per lateral stand).
- Pertmits large lifting height.
- The load on the crank is constant and independent of the cylinder diameter.
- Durability due to the chain drive.
- Height of lift per winch rotation: 90mm
- Weight: 20kg.
Gantry for Man-riding Applications
- All the Aluminium Lifting Gantries in this range can be supplied certified for manriding, fall arrest and rescue applications
- For persons working at height or in confined spaces.
- We can supply fitted with a fall arrest inertia reel or / and manriding / rescue winch.
- As you can see on the image to the right the winch options are fitted to the vertical upright then the cable is reeved over two fixed pulley wheels so that the hook can be lowered directly above the person.
Wire Rope Lifting Hoist
- Using the same principle as above we can also supply the lifting gantry with a wire rope lifting hoist fitted (electric or pneumatic).
- By deflection of the wire rope over two pulley wheels you can create maximum height of lift.
- Lifting position on the top beam is adjustable to any required position.
- Contact our sales office for further information or for a quotation.
Close up of the Split Top Beam
A range of 6 top quality German made adjustable lightweight alloy lifting gantries that are designed extremely portable. The horizontal (overhead) lifting beam splits into two pieces so that is can easily be transported between locations and will fit into most small vans. This gantry style is without Castor's and not movable under load. The gantry has vertical adjustable in two positions, at the extremity legs and o the central vertical column giving a wide adjustable range and also the ability to adjust each individual leg to maintain a level top beam for use on uneven ground (rough terrain)
The Unique design of our lifting gantry also enables horizontal adjustment; quickly and infinitely adjustable.
Each of the legs / vertical supports collapses for ease of transport making the gantry easily handled and moved by the user.
Included as standard is a braked load trolley that is supported on the 'box section' top lifting beam, the trolley is low headroom design providing a smooth and safe means of traversing a load.
All the Gantries in this range can be supplied certified for manriding, fall arrest and rescue applications for persons working at height or in confined spaces.
Gantry is available in three main sizes (height ranges):
- Small Gantries (2 options)
- 1000kg and 1500kg;
- 1735mm min. height;
- 2735mm max. height;
- Beam length: 4 metres (available up to 8 metres on request).
- See the tab above labelled 'Small Sizes' for technical information on the small gantry crane.
- Medium Gantries (2 options)
- 1000kg and 1500kg;
- 2125mm min. height;
- 3375mm max. height;
- Beam length: 4 metres (available up to 8 metres on request).
- See the tab above labelled 'Medium Sizes' for technical information on the medium gantry crane.
- High Gantries (2 options)
- 1000kg and 1500kg;
- 2700mm min. height;
- 4400mm max. height;
- Beam length: 4 metres (available up to 8 metres on request).
- See the tab above labelled 'High Sizes' for technical information on the high gantry crane.
Adjustable Crane Features
Labelled Image
Small Split Top Beam Gantry Crane Technical Specifications
Small Split Top Beam Cranes
Dimensional specifications for the small aluminium gantry crane with collapsible lateral stands and fixed feet.
Please note that we are able to supply split beams up to 8 metres
Item N° | Load capacity | Total height | Beam length | Suspension point at the bolt of the trolley | Lower edge alu-beam | Adjustment range | Lateral stand | Weight | ||||||
min. | max. | Clear width | Total | min. | max. | min. | max. | beam support | telescopic foot | width | height | |||
(kg) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | |
3103-T5035 | 1000 | 1735 | 2735 | 4000** | 4164** | 1360 | 2360 | 1440 | 2440 | 600 | 400 | 1295 | 1554 | 95 |
3103-T23624 | 1500 | 1735 | 2735 | 4000** | 4164** | 1360 | 2360 | 1420 | 2420 | 600 | 400 | 1295 | 1554 | 102 |
Component Weights and Dimensions
Item n° | Load capacity (kg) | Beam length (mm) | Beam support (mm) | Beam profile (mm) | Beam sleeve (mm) | Total weight (kg) | Aluminium beam (kg) | Lateral stand (kg) | Trolley (kg) | Horizontal adjuster (kg) |
3103-T5035 | 1000 | 4000** | 60 x 60 | 200 x 50 | 82 x 82 | 95 | 30 | 2 x 27 | 7 | 4 |
3103-T23624 | 1500 | 4000** | 60 x 60 | 220 x 60 | 82 x 82 | 102 | 36 | 2 x 27 | 7 | 5 |
** Longer beams are available. Please see the 'Pricing (Buy/Quote)' tab above.
Medium Split Top Beam Gantry Crane Technical Specifications
Medium Split Top Beam Cranes
Dimensional specifications for the medium aluminium gantry crane with collapsible lateral stands and fixed feet.
Please note that we are able to supply split beams up to 8 metres
Item N° | Load capacity | Total height | Beam length | Suspension point at the bolt of the trolley | Lower edge alu-beam | Adjustment range | Lateral stand | Weight | ||||||
min. | max. | Clear width | Total | min. | max. | min. | max. | beam support | telescopic foot | width | height | |||
(kg) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | |
3103-T5043 | 1000 | 2125 | 3375 | 4000** | 4164** | 1750 | 3000 | 1830 | 3080 | 850 | 400 | 1743 | 1943 | 105 |
3103-T5048 | 1500 | 2125 | 3375 | 4000** | 4164** | 1750 | 3000 | 1810 | 3060 | 850 | 400 | 1743 | 1943 | 126 |
Component Weights and Dimensions
Item n° | Load capacity (kg) | Beam length (mm) | Beam support (mm) | Beam profile (mm) | Beam sleeve (mm) | Total weight (kg) | Aluminium beam (kg) | Lateral stand (kg) | Trolley (kg) | Horizontal adjuster (kg) |
3103-T5043 | 1000 | 4000** | 60 x 60 | 200 x 50 | 82 x 82 | 105 | 30 | 2 x 32 | 7 | 4 |
3103-T23630 | 1500 | 4000** | 60 x 60 | 220 x 60 | 82 x 82 | 126 | 36 | 2 x 39 | 7 | 5 |
* with larger profile thickness.
** Longer beams are available. Please see the 'Pricing (Buy/Quote)' tab above.
High Split Top Beam Gantry Crane Technical Specifications
High Split Top Beam Cranes
Dimensional specifications for the high aluminium gantry crane with collapsible lateral stands and fixed feet.
Please note that we are able to supply split beams up to 8 metres
Item N° | Load capacity | Total height | Beam length | Suspension point at the bolt of the trolley | Lower edge alu-beam | Adjustment range | Lateral stand | Weight | ||||||
min. | max. | Clear width | Total | min. | max. | min. | max. | beam support | telescopic foot | width | height | |||
(kg) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | |
3103-T5051 | 1000 | 2700 | 4400 | 4000 | 4184 | 2325 | 4025 | 2405 | 4105 | 1300 | 400 | 2238 | 2363 | 166 |
3103-T5056 | 1500 | 2700 | 4400 | 4000 | 4184 | 2325 | 4025 | 2385 | 4085 | 1300 | 400 | 2238 | 2363 | 172 |
Component Weights and Dimensions
Item n° | Load capacity (kg) | Beam length (mm) | Beam support (mm) | Beam profile (mm) | Beam sleeve (mm) | Total weight (kg) | Aluminium beam (kg) | Lateral stand (kg) | Trolley (kg) | Horizontal adjuster (kg) |
3103-T5051 | 1000 | 4000 | 70 x 70 | 200 x 50 | 92 x 92 | 166 | 30 | 2 x 57 | 7 | 15 |
3103-T5056 | 1500 | 4000 | 70 x 70 | 220 x 60 | 92 x 92 | 172 | 36 | 2 x 57 | 7 | 15 |
Optional Gantry Features
If you require any of the features below please feel free to contact us and we will be happy to assist you in finding the correct gantry and fittings for your lifting application.
Wall Bracket
Designed to fix one end of the beam to a wall.
The wall bracket is made out of steel
The beam can be rotated on the Wall Bracket through 180°.
Fixing’s, fasteners and suitability of the supporting structure is the responsibility of the customer.
See Downloads tab for bracket GA Drawing
Wheel Kits - spring loaded (not for movement under load)
Wheel kit for stationary Gantry Cranes:
The advantage of the wheel kits is that you have the stability of a stationary gantry crane combined with the flexibility to move the crane to another position. E.g. the crane will be used in a factory building and when needed in more than just one spot they can move the crane to the area that they need to do further work. As soon as load is applied to the crane the frame around the casters will be pushed onto the floor and the crane will rest on this frame and no longer on the castors. As soon as the load is taken off the gantry the crane will raise slightly once more making the gantry mobile so that it can be moved to the next working area. Without that wheel kit the crane would need to be disassembled for transport to the next working area or manually carried.
This wheel kit facilitates the moving of the assembled gantry crane, without load. (not under load)
- The spring mounted guide rolls allow the crane's lateral stands to rest directly on the supports when under greater loads.
- The leg and forks construction permits the lateral stands to remain upright when assembling and dis-assembling the crane.
- The fork legs are individually height adjustable.
- 1 wheel kit = 4 x castors (forked supports)
Wheel Kit - Polyurethane Lining
Attention:
- When using this wheel kit together with this aluminium gantry crane the minimum suspension point at the trolley pin is increased by 360mm and the maximum suspension point at the trolley pin is increases by 160mm.
- The adjustment range of the wheel kit legs is 200mm.
Kit Features:
- 4 Steel Castors.
- With integrated wheel and live ring brake.
- For indoor moving of the crane without load.
- Weight: 60kg.
Wheel Kit - Polyurethane Foam Tyres
Attention:
- When using this wheel kit together with this aluminium gantry crane the minimum suspension point at the trolley pin is increased by 400mm and the maximum suspension point at the trolley pin is increases by 200mm.
- The adjustment range of the wheel kit legs is 200mm.
Kit Features:
- 4 Steel Castors.
- With integrated wheel and live ring brake.
- For indoor and outdoor moving of the crane without load.
- Weight: 60kg.
Crane Transporter
Designed to transport this type of gantry crane around from location to location whilst packed away reducing manual effort.
If the assembly site cannot be directly reached by vehicle, the easy handling of the crane transporter makes it possible to transport the gantry crane conveniently over distance.
Where the crane is used adjacent to the site you can do without a vehicle altogether.
The accessories of the crane can also be safely carried on the crane transporter.
Weight: 30kg (small and medium cranes), 32kg (high cranes).
Chain Hoist
A choice of compact and lightweight hand chain hoists from a number of reputable manufacturers made from high quality materials.
Hoist Features
- Minimum weight, thus easy to hang up.
- Two-step spur gear.
- Safe working loads to suit your application
- High-strength, galvanised round link chain according to DIN 5684.
- Corrosion resistant option, better suited for outdoor use.
- Ball-bearing load hook.
- The closed housing protects the drive and brake against dirt.
- All mechanical parts are made from high quality steel.
- Load hook comes complete with integrated safety catch.
Electric Chain Hoist
This electric hoist is a hook suspended version and it is manufactured in accordance with EU - Machinery Directive and Equipment Safety Law. We can offer electric hoists to suit your application from a wide selection of manufacturers tailored to suit your requirements.
Hoist Features
- IP rating to your specification
- SWL to match with your choice of gantry
- Suitable for internal or exterior use.
- Power supply single phase or 3 phase, 110v, 240v or 415v.
Lifting Mechanism Specifics
- Ambient temperature rating -20 to +40°C
- Lifting speed to suit your requirements, single or dual speed
- Duty cycle to your spec
- Galvanised chain.
Electrical Features
- Operating voltage: options
- Low voltage pendant control
- Control unit including control cable.
- Control unit protection class: IP66
- Can also be delivered with radio control.
Cable System/Power Supply
Features
- Power supply 110v, 230 or 400 V / 16 Amp. 50 Hz.
- Spring recoil - PUR-coil lead (memory cable - curly wirly cable) or spring recoil power supply festoon option.
- The electrical connection for the chain hoist is made using a plug and socket connection (Protection Class DIN EN 60529 IP66).
- All electrical components can be appropriate for internal and external operating conditions.
Hand Winch
- For height adjustment. (raise and lower the vertical column)
- 1 set = 2 pieces (1 hand winch per lateral stand).
- Pertmits large lifting height.
- The load on the crank is constant and independent of the cylinder diameter.
- Durability due to the chain drive.
- Height of lift per winch rotation: 90mm
- Weight: 20kg.
Gantry for Man-riding Applications
- All the Aluminium Lifting Gantries in this range can be supplied certified for manriding, fall arrest and rescue applications
- For persons working at height or in confined spaces.
- We can supply fitted with a fall arrest inertia reel or / and manriding / rescue winch.
- As you can see on the image to the right the winch options are fitted to the vertical upright then the cable is reeved over two fixed pulley wheels so that the hook can be lowered directly above the person.
Wire Rope Lifting Hoist
- Using the same principle as above we can also supply the lifting gantry with a wire rope lifting hoist fitted (electric or pneumatic).
- By deflection of the wire rope over two pulley wheels you can create maximum height of lift.
- Lifting position on the top beam is adjustable to any required position.
- Contact our sales office for further information or for a quotation.
Products of Possible Interest
Contact Us About This Product
If you wish to receive a quote for this product, please use the 'Pricing' tab above, this form is for general enquiries regarding this product only.
You can also Request a Quote using the Buy/Quote tab above!
You can easily add more than one item to the Quote Request. This is highly recommend as we will be able to suit your needs much more efficiently.
Share this page!
Save this QR code
for use on Smart Phones
