  7. RUD "VLBG-PLUS" Metric Bolt-on Swivel Lifting Point
RUD "VLBG-PLUS" Metric Bolt-on Swivel Lifting Point

RUD "VLBG-PLUS" Metric Bolt-on Swivel Lifting Point

Rotating swivel eye bolts / load rings with link - Full WLL (0.63 tonne to 20 tonne) in all directions, with optional bolt lengths. M8-M48 thread.

Model:

VLBG-Plus / RSLP-4547

RUD "VLBG-PLUS" Metric Bolt-on Swivel Lifting Point

Standard Vlbg Plus Lifting Point VLBG-Plus Vario (long length) Lifting Point Vlbg Plus Used For Lashing VLBG-Plus Swivel Hoist Rings - Standard and Vario
More from:
Rud

Lifting Point Features

  • The superseding version of the standard RUD VLBG swivel hoist ring.
  • Quick and easy installation.
  • Capacity range 630 to 20,000kg.
  • Thread range M8 to M48.
  • Clear marking of the minimum WLL. Now 45 % higher WLL at an average (M8 – M30).
  • 4:1 Safety factor.
  • Full working load in all directions.
  • Range of rotation 360°.
  • Pivoting range suspension link 180°.
  • DGUV-approval.
  • Optimum WLL with captive but exchangeable ICE-Bolt.
  • Bracket adjustable in force direction.
  • A comprehensive range of threads.
  • Maximum operation temperature range WITHOUT reduction of WLL -40°–100°C.
  • Maximum operation temperature range WITH reduction of WLL 300°C max.

Captive but exchangeable ICE-Bolt made out of patented steel with special corrosion protection Corrud-DT. Non-hazardous deep temperature usage; higher toughness and therefore higher bending strength as well as less wear occurrence. Original ICE-Bolt is available as a spare part. Clear marking at the bolt head: RUD, ICE, thread size, batch-no., class of strength.

The clamping spring works as a noise reduction and holds the suspension ring in the requested position; therefore, a simple hinge of lifting means a possible respectively flat design if turned down.

VLBG-PLUS: Testing specifications: GS-OA-15-04:2015-12 Certificate No.: OA 1651053

Imperial Thread Version

For imperial UNC threads, please see the RUD VLBG-Z lifting point.

Dimensions & Specifications

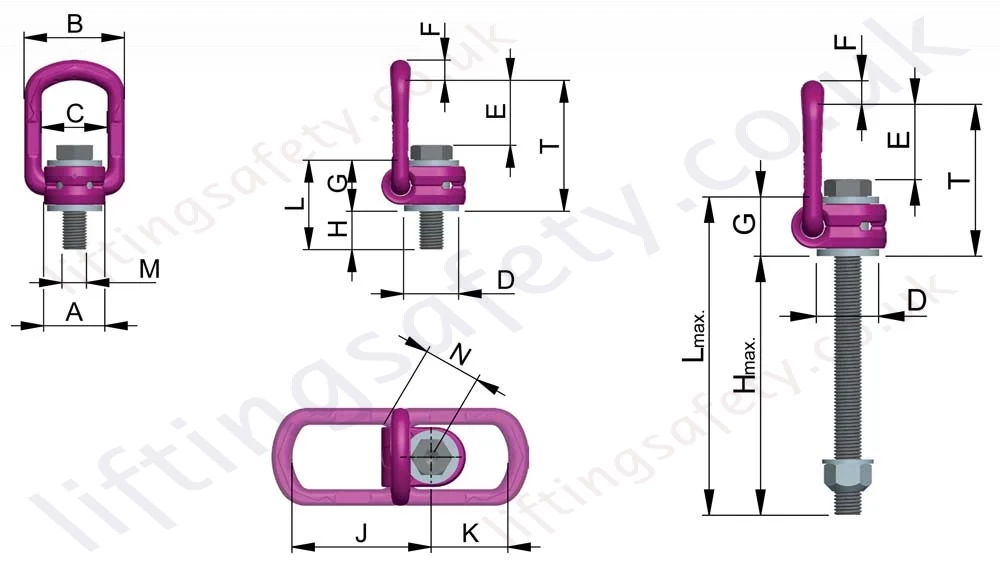

Vlbg Plus Dimensions

Type WLL (t) Weight (kg)  Dimensions (mm)  Torque
A B C D E F G H (std) H (max.) J K L (std) L (max.) M N SW ISK T
VLBG-PLUS 0.63t M8 0.63 0.3 30 52 34 24 40 10 29 11 76 75 45 40 105 8 32 13 5 75 30 Nm
VLBG-PLUS 0.9t M10 0.9 0.31 30 52 34 24 39 10 29 15 96 75 45 44 125 10 32 17 6 75 60 Nm
VLBG-PLUS 1.35t M12 1.35 0.34 32 52 34 26 38 10 29 18 116 75 45 47 145 12 32 19 8 75 150 Nm
VLBG-PLUS 1.2t M14 1.2 0.5 34.5 56 38 30 39 13.5 36 24 34 86 47 60 70 14 38 24 10 85 150 Nm
VLBG-PLUS 2t M16 2 0.55 34.5 56 38 30 39 13.5 36 22 149 86 47 58 185 16 38 24 10 85 150 Nm
VLBG-PLUS 2t M18 2 1.3 50 82 54 45 55 17 43 37 222 113 64 80 90 18 48 30 12 110 200 Nm
VLBG-PLUS 3.5t M20 3.5 1.3 50 82 54 45 55 17 43 32 187 113 64 75 230 20 48 30 12 110 400 Nm
VLBG-PLUS 4.5t M24 4.5 1.4 50 82 54 45 67 17 43 37 222 130 78 80 265 24 48 36 14 125 760 Nm
VLBG-PLUS 6.7t M30 6.7 3.2 60 103 65 60 67 22.5 61 49 279 151 80 110 340 30 67 46 17 147 1000 Nm
VLBG-PLUS 8t M36 8 6.2 77 122 82 70 97 26.5 77 63 223 205 113 140 300 36 79 55 22 196 800 Nm
VLBG-PLUS 10t M42 10 6.7 77 122 82 70 94 26.5 77 73 273 205 113 150 350 42 79 65 24 196 1000 Nm
VLBG-PLUS 15t M42 15 10.9 95 156 100 85 109 36 87 63 413 230 130 150 500 42 100 65 24* 222 1500 Nm
VLBG-PLUS 20t M48 20 11.6 95 156 100 95 105 36 87 73 303 230 130 160 350 48 100 75 27 222 2000 Nm

Subject to technical modifications.

* from L=351 mm without internal hexagon, SW = wrench size, ISK = internal hexagon

Load Capacities - Metric

Method of Lift  Loading 1 Loading 2   Loading 3 Loading 4 Loading 5 Loading 6 Loading 7 Loading 8
Number of legs  1 1 2 2 2 2 2 3 / 4 3 / 4 3 / 4
Angle of inclination <ß  0° 90° 0 ° 90° 0-45° >45-60° Un- symm. 0-45° >45-60° Un- symm.
factor  1 1 2 2 1,4 1 1 2,1 1,5 1
Type Thread WLL in tonnes, bolted and adjusted to the direction of pull
VLBG-PLUS 0.63t M 8 0.63 0.63 1.26 1.26 0.88 0.63 0.63 1.3 0.94 0.63
VLBG-PLUS 0.9t M 10 0.9 0.9 1.8 1.8 1.26 0.9 0.9 1.9 1.35 0.9
VLBG-PLUS 1.35t M 12 1.35 1.35 2.7 2.7 1.9 1.35 1.35 2.8 2 1.35
VLBG-PLUS 1.2t M 14 1.2 1.2 2.4 2.4 1.7 1.2 1.2 2.5 1.8 1.2
VLBG-PLUS 2t M 16 2 2 4 4 2.8 2 2 4.2 3 2
VLBG-PLUS 2t M 18 2 2 4 4 2.8 2 2 4.2 3 2
VLBG-PLUS 3.5t M 20 3.5 3.5 7 7 4.9 3.5 3.5 7.35 5.25 3.5
VLBG-PLUS 4.5t M 24 4.5 4.5 9 9 6.3 4.5 4.5 9.5 6.75 4.5
VLBG-PLUS 6.7t M 30 6.7 6.7 13.4 13.4 9.4 6.7 6.7 14 10 6.7
VLBG-PLUS 8t M 36 8 8 16 16 11.2 8 8 16.8 12 8
VLBG-PLUS 10t M 42 10 10 20 20 14 10 10 21 15 10
VLBG-PLUS 15t M 42 15 15 30 30 21 15 15 31.5 22.5 15
VLBG-PLUS 20t M 48 20 20 40 40 28 20 20 42 30 20

Overhead Loading Forbidden

Overhead Loading Forbidden

Forbidden turning direction at loading in the direction of the axle

Overhead Loading Forbidden
Part N° Thread Thread Length - Under Head (mm) WLL (t) Weight (kg) Sale Price (Ex. VAT) Quantity
4547-T27781
8504651 		M8 11 0.63 0.3
( £90.55 )
£70.18
4547-T27782
8504652 		M10 15 0.9 0.31
( £89.07 )
£69.03
4547-T27783
8504653 		M12 18 1.35 0.34
( £90.55 )
£70.18
4547-T27784
8504655 		M16 22 2 0.55
( £96.84 )
£75.06
4547-T27785
8504657 		M20 32 3.5 1.30
( £110.91 )
£85.96
4547-T27786
8504659 		M24 37 4.5 1.4
( £119.06 )
£92.28
4547-T27787
8504661 		M30 49 6.7 3.22
( £216.44 )
£167.75
4547-T27788
7983553 		M36 63 8 6
( £426.42 )
£330.48
4547-T27789
7983554 		M42 73 10 6.6
( £461.58 )
£357.73
4547-T27790
7982966 		M42 63 15 10.9
( £544.21 )
£421.77
4547-T27791
7982967 		M48 73 20 11.6
( £586.98 )
£454.91
Availability Usually 1-2 Working Days - 1pm cut-off
Additional Information Please note that this may be subject to change, particularly on larger capacity units or for units with custom thread lengths. For urgent orders, please contact our sales team that will gladly assist.
Add to Shopping Basket
Please Note: Buy online is only available to UK mainland customers and addresses.
Description

Lifting Point Features

  • The superseding version of the standard RUD VLBG swivel hoist ring.
  • Quick and easy installation.
  • Capacity range 630 to 20,000kg.
  • Thread range M8 to M48.
  • Clear marking of the minimum WLL. Now 45 % higher WLL at an average (M8 – M30).
  • 4:1 Safety factor.
  • Full working load in all directions.
  • Range of rotation 360°.
  • Pivoting range suspension link 180°.
  • DGUV-approval.
  • Optimum WLL with captive but exchangeable ICE-Bolt.
  • Bracket adjustable in force direction.
  • A comprehensive range of threads.
  • Maximum operation temperature range WITHOUT reduction of WLL -40°–100°C.
  • Maximum operation temperature range WITH reduction of WLL 300°C max.

Captive but exchangeable ICE-Bolt made out of patented steel with special corrosion protection Corrud-DT. Non-hazardous deep temperature usage; higher toughness and therefore higher bending strength as well as less wear occurrence. Original ICE-Bolt is available as a spare part. Clear marking at the bolt head: RUD, ICE, thread size, batch-no., class of strength.

The clamping spring works as a noise reduction and holds the suspension ring in the requested position; therefore, a simple hinge of lifting means a possible respectively flat design if turned down.

VLBG-PLUS: Testing specifications: GS-OA-15-04:2015-12 Certificate No.: OA 1651053

Imperial Thread Version

For imperial UNC threads, please see the RUD VLBG-Z lifting point.

Dimensions & Specifications

Vlbg Plus Dimensions

Type WLL (t) Weight (kg)  Dimensions (mm)  Torque
A B C D E F G H (std) H (max.) J K L (std) L (max.) M N SW ISK T
VLBG-PLUS 0.63t M8 0.63 0.3 30 52 34 24 40 10 29 11 76 75 45 40 105 8 32 13 5 75 30 Nm
VLBG-PLUS 0.9t M10 0.9 0.31 30 52 34 24 39 10 29 15 96 75 45 44 125 10 32 17 6 75 60 Nm
VLBG-PLUS 1.35t M12 1.35 0.34 32 52 34 26 38 10 29 18 116 75 45 47 145 12 32 19 8 75 150 Nm
VLBG-PLUS 1.2t M14 1.2 0.5 34.5 56 38 30 39 13.5 36 24 34 86 47 60 70 14 38 24 10 85 150 Nm
VLBG-PLUS 2t M16 2 0.55 34.5 56 38 30 39 13.5 36 22 149 86 47 58 185 16 38 24 10 85 150 Nm
VLBG-PLUS 2t M18 2 1.3 50 82 54 45 55 17 43 37 222 113 64 80 90 18 48 30 12 110 200 Nm
VLBG-PLUS 3.5t M20 3.5 1.3 50 82 54 45 55 17 43 32 187 113 64 75 230 20 48 30 12 110 400 Nm
VLBG-PLUS 4.5t M24 4.5 1.4 50 82 54 45 67 17 43 37 222 130 78 80 265 24 48 36 14 125 760 Nm
VLBG-PLUS 6.7t M30 6.7 3.2 60 103 65 60 67 22.5 61 49 279 151 80 110 340 30 67 46 17 147 1000 Nm
VLBG-PLUS 8t M36 8 6.2 77 122 82 70 97 26.5 77 63 223 205 113 140 300 36 79 55 22 196 800 Nm
VLBG-PLUS 10t M42 10 6.7 77 122 82 70 94 26.5 77 73 273 205 113 150 350 42 79 65 24 196 1000 Nm
VLBG-PLUS 15t M42 15 10.9 95 156 100 85 109 36 87 63 413 230 130 150 500 42 100 65 24* 222 1500 Nm
VLBG-PLUS 20t M48 20 11.6 95 156 100 95 105 36 87 73 303 230 130 160 350 48 100 75 27 222 2000 Nm

Subject to technical modifications.

* from L=351 mm without internal hexagon, SW = wrench size, ISK = internal hexagon

Load Charts

Load Capacities - Metric

Method of Lift  Loading 1 Loading 2   Loading 3 Loading 4 Loading 5 Loading 6 Loading 7 Loading 8
Number of legs  1 1 2 2 2 2 2 3 / 4 3 / 4 3 / 4
Angle of inclination <ß  0° 90° 0 ° 90° 0-45° >45-60° Un- symm. 0-45° >45-60° Un- symm.
factor  1 1 2 2 1,4 1 1 2,1 1,5 1
Type Thread WLL in tonnes, bolted and adjusted to the direction of pull
VLBG-PLUS 0.63t M 8 0.63 0.63 1.26 1.26 0.88 0.63 0.63 1.3 0.94 0.63
VLBG-PLUS 0.9t M 10 0.9 0.9 1.8 1.8 1.26 0.9 0.9 1.9 1.35 0.9
VLBG-PLUS 1.35t M 12 1.35 1.35 2.7 2.7 1.9 1.35 1.35 2.8 2 1.35
VLBG-PLUS 1.2t M 14 1.2 1.2 2.4 2.4 1.7 1.2 1.2 2.5 1.8 1.2
VLBG-PLUS 2t M 16 2 2 4 4 2.8 2 2 4.2 3 2
VLBG-PLUS 2t M 18 2 2 4 4 2.8 2 2 4.2 3 2
VLBG-PLUS 3.5t M 20 3.5 3.5 7 7 4.9 3.5 3.5 7.35 5.25 3.5
VLBG-PLUS 4.5t M 24 4.5 4.5 9 9 6.3 4.5 4.5 9.5 6.75 4.5
VLBG-PLUS 6.7t M 30 6.7 6.7 13.4 13.4 9.4 6.7 6.7 14 10 6.7
VLBG-PLUS 8t M 36 8 8 16 16 11.2 8 8 16.8 12 8
VLBG-PLUS 10t M 42 10 10 20 20 14 10 10 21 15 10
VLBG-PLUS 15t M 42 15 15 30 30 21 15 15 31.5 22.5 15
VLBG-PLUS 20t M 48 20 20 40 40 28 20 20 42 30 20

Overhead Loading Forbidden

Overhead Loading Forbidden

Forbidden turning direction at loading in the direction of the axle

Overhead Loading Forbidden
Downloads

VLBG Plus Instructions.pdf

VLBG Plus Instructions

(approx. 1.4Mb)
