Crosby G-408 Open Pattern Thimble - for Rope Sizes Ranging from 6mm to 16mm
Model:
Crosby G-408 / OPT-2695

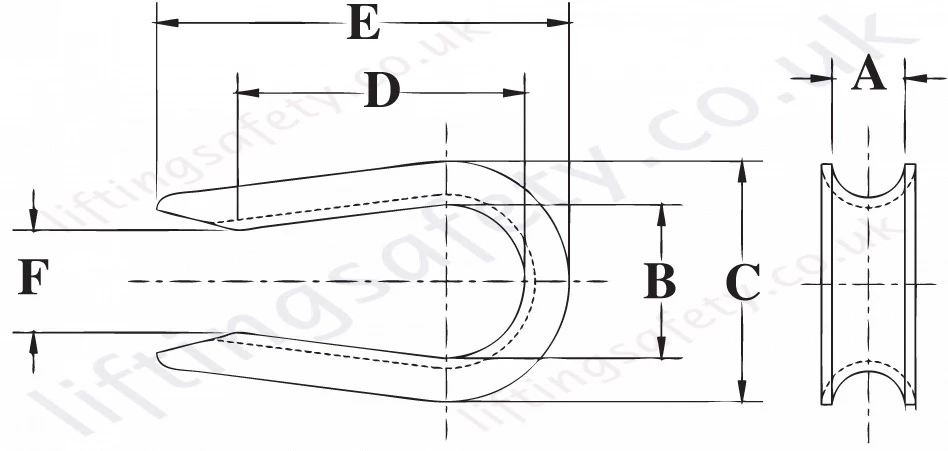

Crosby Open Pattern Wire Rope Thimbles.
Metric Table
| Rope Dia. | G-408 Stock No. | Weight Per 100 (kg) | Dimensions (mm) | ||||||
| (mm) | (in.) | A | B | C | D | E | F | ||
| 6-7 | 1/4 | 1037531 | 1.36 | 7.10 | 17.5 | 26.9 | 35.8 | 51.5 | 9.65 |
| 8 | 5/16 | 1037559 | 1.72 | 8.65 | 20.6 | 31.8 | 38.9 | 55.0 | 12.7 |
| 9-10 | 3/8 | 1037577 | 3.18 | 11.2 | 23.9 | 37.3 | 43.7 | 62.5 | 15.7 |
| 11-13 | 1/2 | 1037595 | 5.67 | 13.5 | 28.4 | 44.5 | 37.3 | 72.0 | 19.1 |
| 16 | 5/8 | 1037611 | 11.3 | 16.8 | 35.1 | 60.5 | 59.5 | 91.0 | 25.4 |
Imperial Table
| Rope Dia. | G-408 Stock No. | Weight Per 100 (lbs.) | Dimensions (in.) | ||||||
| (in.) | (mm) | A | B | C | D | E | F | ||
| 1/4 | 6-7 | 1037531 | 3.00 | .28 | .69 | 1.06 | 1.41 | 2.03 | .38 |
| 5/16 | 8 | 1037559 | 3.80 | .34 | .81 | 1.25 | 1.53 | 2.16 | .50 |
| 3/8 | 9-10 | 1037577 | 7.00 | .44 | .94 | 1.47 | 1.72 | 2.47 | .62 |
| 1/2 | 11-13 | 1037595 | 12.50 | .53 | 1.12 | 1.75 | 1.47 | 2.84 | .75 |
| 5/8 | 16 | 1037611 | 25.00 | .66 | 1.38 | 2.38 | 2.34 | 3.59 | 1.00 |
As advertised in Crosby General Catalogue 2009 Page 135, and previously in Crosby General Catalogue 2006 Page 131.
