Niko Scaffolding Runway System - 125kg to 2000kg Options

Runway beam system that connects directly to scaffolding poles enabling the movement of heavy items around a scaffolding structure.

Model:

NSRS-5468


The Scaffolding Runway System is unique to Niko Ltd and provides a solution for lifting and moving loads throughout a scaffolding support structure.

Features

  • Clamps to existing scaffolding structure.
  • Lift (lifting device not included as standard) and move loads up to 2000kg
  • Cantilever over the end of the scaffolding
  • Available in straight and curved sections (curved sections are not available for 2000kg systems). For available track bends, see the 'Track bends' PDF on the downloads tab or contact us for more details.
  • Change direction with junction switches
  • Can be used to suspend a bridge from 2 runways to create a crane system
  • Supplied in kit form for ease of installation, extension and relocation
  • 1.5m maximum distance between support points (less for higher capacity systems - See product range table below)
  • 0.5m maximum unsupported cantilever distance (less for higher capacity systems - See product range table below)
  • Must be installed in accordance with Niko Scaffolding Runway Handbook - See downloads tab above.

Kit Includes

  • Track (supplied in 3m lengths). As standard, straight only. Please contact us for more information if track sections with a bend are required.
  • Joints (as required by system length)
  • Intermediate support brackets (as required by system length), to be located in the centre of every track length and at either end of every system
  • One load trolley to suspend a hoist from (hoist not included). For multiple trolleys, please get in touch.
  • End stops and ultimate stop cross bolts at either end of the system.

Product Range



Safe Working Load
125kg 250kg 500kg 1000kg 1600kg * 2000kg
Track profile 24.000 25.000 26.000 27.000 27.000 27.000
Trolley type T48 T48 T48 T48 T24 T49
Track lengths 3m 3m 3m 3m 3m 3m
Track support centres 1.5m 1.5m 1.5m 1.5m 1m 0.75
Max. cantilever length 0.36m 0.4m 0.5m 0.5m 0.31m 0.25m
Bend radius (bends not included in standard kits) 580mm 580mm 770mm 1035mm 1035mm N/A **

* Requires double load trolley (type T24)

** Bends are not available

The Standard Trolley Types

Other trolley types are available but have lower safe working loads. See the Niko scaffold runway handbook for more details.

T48 Trolley

T48 Load Trolley with Clevis Pin
125kg, 250kg, 500kg & 1000kg Systems

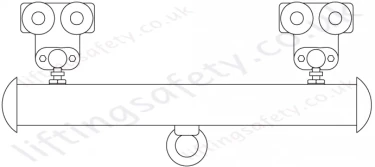

T24 Trolley

T24 Double Load Trolley with Eye
1600kg Systems

T49 Trolley

T49 Double Load Trolley with Clevis Pin
2000kg Systems

Track Weights and Dimensions

Track Profile Track Weight Per Metre (kg) System Weight Per Metre (kg) * h (mm) b (mm) d (mm) s (mm) Wheel Ø (mm)
24.000 3.59 5.11 43.5 48.5 15.5 3.2 35
25.000 5.62 7.92 60 65 18.5 3.6 42.5
26.000 8.72 12.59 75 80 22 4.5 54
27.000 16.38 23.68 110 90 25 6.5 60

* Based on 3m track lengths and 1.5m support centres

Track Dimensions
Scaffolding Runway Handbook (04-2021).pdf

Niko Scaffold Runway Handbook

Includes installation procedures and requirements.
(approx. 1.8Mb)
Track bends.pdf

Track Bends

Available track bends for the Niko Scaffold Runway Systems
(approx. 1.0Mb)

The Scaffolding Runway System is unique to Niko Ltd and provides a solution for lifting and moving loads throughout a scaffolding support structure.

Features

  • Clamps to existing scaffolding structure.
  • Lift (lifting device not included as standard) and move loads up to 2000kg
  • Cantilever over the end of the scaffolding
  • Available in straight and curved sections (curved sections are not available for 2000kg systems). For available track bends, see the 'Track bends' PDF on the downloads tab or contact us for more details.
  • Change direction with junction switches
  • Can be used to suspend a bridge from 2 runways to create a crane system
  • Supplied in kit form for ease of installation, extension and relocation
  • 1.5m maximum distance between support points (less for higher capacity systems - See product range table below)
  • 0.5m maximum unsupported cantilever distance (less for higher capacity systems - See product range table below)
  • Must be installed in accordance with Niko Scaffolding Runway Handbook - See downloads tab above.

Kit Includes

  • Track (supplied in 3m lengths). As standard, straight only. Please contact us for more information if track sections with a bend are required.
  • Joints (as required by system length)
  • Intermediate support brackets (as required by system length), to be located in the centre of every track length and at either end of every system
  • One load trolley to suspend a hoist from (hoist not included). For multiple trolleys, please get in touch.
  • End stops and ultimate stop cross bolts at either end of the system.

Product Range



Safe Working Load
125kg 250kg 500kg 1000kg 1600kg * 2000kg
Track profile 24.000 25.000 26.000 27.000 27.000 27.000
Trolley type T48 T48 T48 T48 T24 T49
Track lengths 3m 3m 3m 3m 3m 3m
Track support centres 1.5m 1.5m 1.5m 1.5m 1m 0.75
Max. cantilever length 0.36m 0.4m 0.5m 0.5m 0.31m 0.25m
Bend radius (bends not included in standard kits) 580mm 580mm 770mm 1035mm 1035mm N/A **

* Requires double load trolley (type T24)

** Bends are not available

The Standard Trolley Types

Other trolley types are available but have lower safe working loads. See the Niko scaffold runway handbook for more details.

T48 Trolley

T48 Load Trolley with Clevis Pin
125kg, 250kg, 500kg & 1000kg Systems

T24 Trolley

T24 Double Load Trolley with Eye
1600kg Systems

T49 Trolley

T49 Double Load Trolley with Clevis Pin
2000kg Systems

Track Weights and Dimensions

Track Profile Track Weight Per Metre (kg) System Weight Per Metre (kg) * h (mm) b (mm) d (mm) s (mm) Wheel Ø (mm)
24.000 3.59 5.11 43.5 48.5 15.5 3.2 35
25.000 5.62 7.92 60 65 18.5 3.6 42.5
26.000 8.72 12.59 75 80 22 4.5 54
27.000 16.38 23.68 110 90 25 6.5 60

* Based on 3m track lengths and 1.5m support centres

Track Dimensions
Scaffolding Runway Handbook (04-2021).pdf

Niko Scaffold Runway Handbook

Includes installation procedures and requirements.
(approx. 1.8Mb)
Track bends.pdf

Track Bends

Available track bends for the Niko Scaffold Runway Systems
(approx. 1.0Mb)

Pricing

Guide Price

£275.00


Contact Us About This Product
