Hadef 9/12 VA Stainless Steel Hand Chain Hoist, 500kg to 3000kg

Fully stainless steel manual chain block with spur gear drive.

Model:

HSSH-4895


Suitable for a cleanroom environment the basic hoist unit completely made of stainless steel, load and suspension hook, bottom block, load and hand chain, which ensures maximum protection against corrosion and also good protection in a humid environment.

This Hadef Stainless Steel hoist range is perfect for Plant construction, shipping, sewage treatment and Chemical plants and the food industry.

Dimensions and Specifications

Capacity (t) No. of Chain Falls Load Chain (mm) Hand Chain Pull (N) H (mm) L1 (mm) L2 (mm) W1 (mm) W2 (mm) D (mm) T (mm) Weight @ 3m Standard HOL (kg) Per Additional Metre (kg)
0.5 1 6.3 x 19.1 760 355 65 85 84.5 62 38 27 12.5 0.86
1 1 7.9 x 23 555 425 82.5 110.5 91.8 72.8 46 32 20.5 1.4
2 2 7.9 x 23 278 586 64.2 173 91.8 78 64 51 38 2.8
3 2 10 x 28 218 655 75.1 201 95.5 80.5 64 51 50 4.4

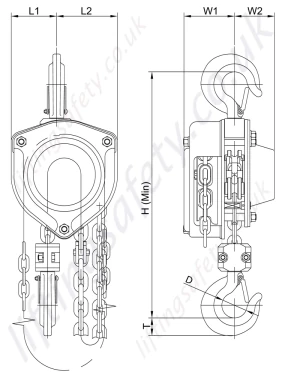

Hadef Stainless Steel Manual Chain Hoist Dimensions

Suitable for a cleanroom environment the basic hoist unit completely made of stainless steel, load and suspension hook, bottom block, load and hand chain, which ensures maximum protection against corrosion and also good protection in a humid environment.

This Hadef Stainless Steel hoist range is perfect for Plant construction, shipping, sewage treatment and Chemical plants and the food industry.

Dimensions and Specifications

Capacity (t) No. of Chain Falls Load Chain (mm) Hand Chain Pull (N) H (mm) L1 (mm) L2 (mm) W1 (mm) W2 (mm) D (mm) T (mm) Weight @ 3m Standard HOL (kg) Per Additional Metre (kg)
0.5 1 6.3 x 19.1 760 355 65 85 84.5 62 38 27 12.5 0.86
1 1 7.9 x 23 555 425 82.5 110.5 91.8 72.8 46 32 20.5 1.4
2 2 7.9 x 23 278 586 64.2 173 91.8 78 64 51 38 2.8
3 2 10 x 28 218 655 75.1 201 95.5 80.5 64 51 50 4.4

Hadef Stainless Steel Manual Chain Hoist Dimensions

Pricing

Capacity
Height of Lift (metres)
(min:3) (3 included in price)
Quantity
Unit Price Quote Only

Contact Us About This Product
