Hadef 66/04 AKS Electric Chain Hoist with Eye Suspension

Hadef 66/04 AKS Electric Chain Hoist with Eye Suspension

Compact design electric hoist with overload protection built-in as standard. Atex option available. 250kg to 30 tonne.

Model:

66/04 AKS / HAPE-4318

Manufacturing Standard: EN 818-7-T

Features & Benefits

Compact Design
IP 55 Enclosure
Mechanic Hoist Protection by slipping clutch (AKS4-8)
Overload Protection by current cut-off (AKS9,10)
Plug-in Connection for power supply and pendant control
Zin plated high quality RUD load chain acc. to EN 818-7-T
Large variety of accessories available (upon special request)
German certificate of origin
Capacity Range from 250kg to 30,000kg as standard, but up to 100 tonne on request.

AKS 8-10

Phase Monitoring Relay
Low Voltage Control (42v)
Motor protection by thermal detector
Operational limit switch for lifting/lowering

Dimensions -AKS 4-8


Model	Chain Falls	Load Chain (mm)	Dimensions in mm
Model	Chain Falls	Load Chain (mm)	A	A1	B1	B2	B3	C	C1	D	H	M	M1
AKS 402 - AKS 406	1	5x15	290	235	225	330	12	40	465	40	400	23	17
AKS 410 AKS 412	2	5x15	290	210	225	330	12	40	465	40	460	29	22
AKS 610 AKS 312	1	7x21	320	260	265	390	15	80	560	55	540	29	22
AKS 716	1	9x27	365	300	312	430	15	75	635	55	620	39	29
AKS 620 AKS 625	2	7x21	320	225	265	390	15	80	560	55	640	39	29
AKS 820	1	11.3x31	365	307	312	430	20	70	630	55	590	32	38
AKS 725 AKS 732	2	9x27	365	256	312	430	20	70	635	55	710	48	36
AKS 825	1	11.3x31	365	307	312	430	20	70	630	55	590	32	38
AKS 832 - AKS 850	2	11.3x31	365	256	312	430	20	70	630	55	690	38	45

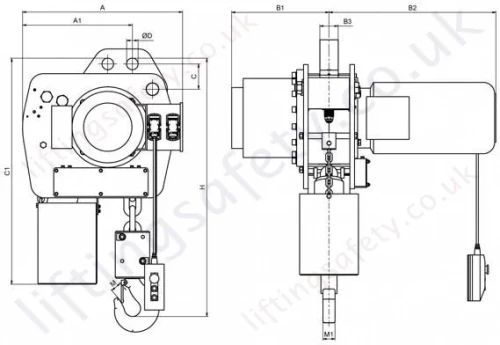

Dimensions - AKS 9 / 10


AKS 9							AKS 10
Model	Chain Falls	Load Chain (mm)	Dimensions in mm
Model	Chain Falls	Load Chain (mm)	A	A1	B1	B2	B3	C	C1	D	H	M	M1
AKS 905	1	16x45	635	412	290 (360)	520 (562)	80	70	993	52	755	40	45
AKS 906	1	16x45	635	412	290 (360)	520 (562)	80	70	993	52	755	40	45
AKS 910	2	16x45	635	486	290 (360)	520 (562)	80	148	1075	61	940	49	63
AKS 1010	1	23.5x66	707	477	424	727	80	110	983	50	980	57	53
AKS 912	2	16x45	635	486	290 (360)	520 (562)	80	148	1075	61	940	49	63
AKS 1012	1	23.5x66	707	477	424	727	80	110	983	50	980	57	53
AKS 915	3	16x45	760	567	290 (360)	520 (562)	80	157	110	61	1130	55	67
AKS 920	4	16x45	940	640	290 (360)	520 (562)	80	185	1230	71	1170	55	67
AKS 1020	2	23.5x66	773	584	424	727	80	148	1084	76	1255	71	80
AKS 925	5	16x45	1120	710	290 (360)	520 (562)	80	205	1360	76	1270	62	75
AKS 1025	2	23.5x66	773	584	424	727	80	148	1084	76	1255	71	80
AKS 930	6	16x45	1290	790	290 (360)	520 (562)	80	205	1385	76	1270	70	85

The Hadef AK Series Electric Chain Hoist Range

The Hadef AK Series of Electric chain hoists offer great durability and are incredibly reliable, They are available in a wide range and can accomodate almost any application when it comes to Lifting heavy materials safely and efficiently.

Top Quality Parts

The Hadef hoist provides 4 main guarentees of effective longevity of chain drive:

Precision feed of chain with twist protection

High quality RUD load chain with optimised tolerances

Precisely matched chain wheel

Hardened chain guide with low wear

a). Compared to a standard chain acc. to DIN 818
b). High quality RUD load chain of identical size as a) but with improved tolerances.

Ak Hooks

There are also a number of Chain Fall options available, please see the Buy/Quote tab for more information.

Hadef Hoist In Use

Technical Specifications for the AK Range of Hoists

For other Hadef hoists, please check out our Hadef Electric Chain Hoists & Trolley Hoists Category here.

AKS Stationery with suspended eye			AKR Push Travel Trolley			AKH Hand Geared Trolley				AKE Electric Trolley

Capacity (kg)	Chain Falls	Lifting Speed (m/min)	Output (kW)	Duty Cycle (%)	Current (A)	cos. phi	Model	FEM 9.511/ ISO 4301	Load Chain (mm)	Weight (kg)
Capacity (kg)	Chain Falls	Lifting Speed (m/min)	Output (kW)	Duty Cycle (%)	Current (A)	cos. phi	Model	FEM 9.511/ ISO 4301	Load Chain (mm)	AKS	AKH/AKR	AKE	+1m Lift
250	1	16/4	0.68/0.18	40/25	1.6/1.1	0.76/0.58	AK 402 DT80 N8/2	3m/M6	5x15	65	79	91	0.8
500	1	6	0.63	100	1.85	0.70	AK 405 DT80 K4		5x15	65	79	91	0.8
500	1	9.4/2.3	0.75/0.18	40/25	2.4/1.1	0.76/0.58	AK 405 DT80 N8/2		5x15	65	79	91	0.8
630	1	6	0.63	60	2.1	0.73	AK 406 DT80 K4		5x15	65	79	91	0.8
630	1	9.4/2.3	1.0/0.25	25/15	2.6/1.4	0.76/0.58	AK 406 DT80 N8/2		5x15	65	79	91	0.8
1000	2	3	0.63	100	1.85	0.70	AK 410 DT80 K4		5x15	75	89	101	1.4
1000	2	4.5/1.1	0.75/0.18	40/25	2.4/1.1	0.76/0.58	AK 410 DT80 N8/2		5x15	75	89	101	1.4
1000	1	8/2	1.5/0.37	30/20	4.1/2.1	0.9/0.67	AK 610 DT90 L8/2		7x21	100	126	141	1.3
1250	2	4.5/1.1	1.0/0.25	25/15	2.6/1.4	0.76/0.58	AK 412 DT80 N8/2		5x15	75	89	101	1.4
1250	1	8/2	1.8/0.44	25/15	4.4/2.1	0.9/0.67	AK 612 DT90 L8/2		7x21	100	126	141	1.3
1600	1	8/2	2.1/0.55	40/40	4.6/2.1	0.88/0.68	AK 716 DT100L8/2		9x27	125	167	181	2.1
1600	1	11/2.6	3.2/0.8	30/20	6.4/2.7	0.88/0.68	AK 716 DT100L8/2		9x27	130	172	186	2.1
2000	2	4/1	1.5/0.37	30/20	4.1/2.0	0.9/0.67	AK 620 DT90 L8/2		7x21	105	131	146	2.5
2000	1	10/2.5	3.2/0.75	40/25	7.8/4.1	0.85/0.64	AK 820FN100M8/2		11.3x31	130	172	186	3.1
2500	2	4/1	1.8/0.44	25/15	4.4/2.1	0.9/0.67	AK 625 DT90 L8/2		7x21	105	131	146	2.5
2500	2	5.5/1.3	2.6/0.65	40/25	5.4/2.5	0.88/0.68	AK 725 DT100L8/2		9x27	130	172	186	3.9
2500	1	8/2	4.0/1.1	40/25	10.0/6.0	0.85/0.64	AK 825FN100M8/2		11.3x31	130	172	186	3.1
3200	2	4/1	2.5/0.6	40/40	6.2/3.3	0.88/0.68	AK 732DT100L8/2		9x27	130	172	186	3.9
3200	2	5/1.25	2.5/0.6	40/25	6.2/3.3	0.85/0.64	AK 832FN100M8/2		11.3x31	135	177	191	5.6
4000	2	5/1.25	3.2/0.75	40/25	7.8/4.1	0.85/0.64	AK 840FN100M8/2		11.3x31	135	177	191	5.6
5000	2	4/1	4.0/1.1	40/25	10.0/6.0	0.85/0.64	AK 850FN100M8/2		11.3x31	135	177	203	5.6
5000	1	5.4/1.35	5.5/1.4	40	12.5/6.4	0.82/0.62	AK 905FN112M8/2		16x45	260	345	358	6
5000	1	8/2	8.5/2	40/25	18.2/6.5	0.89/0.67	AK 905FN132M8/2		16x45	300	385	398	6
6300	1	5.4/1.35	6.0/1.5	30/15	13.8/7.0	0.84/0.64	AK 906FN112M8/2		16x45	260	345	358	6
6300	1	8/2	9/2.5	40/25	19/7.0	0.89/0.67	AK 906FN132M8/2		16x45	300	385	398	6
10000	1	5.8/1.4	12/2.5	40/25	28/9.0	0.85/0.60	AK 1010FN160M8/2		23.5x66	-	-	-	-
10000	2	2.8/0.7	5.5/1.4	40	12.5/6.4	0.82/0.62	AK 910FN112M8/2		16x45	350	437	450	11.7
10000	2	4/1	8.5/2	40/25	18.2/6.5	0.89/0.67	AK 910FN132M8/2		16x45	390	477	490	11.7
12000	2	2.8/0.7	6.0/1.5	30/15	13.8/7.0	0.84/0.64	AK 912FN112M8/2		16x45	350	437	450	11.7
12000	2	4/1	9/2.5	40/25	19/7.0	0.89/0.67	AK 912FN132M8/2		16x45	390	477	490	11.7
12500	1	5.8/1.4	13/3.2	30/15	30/10	0.85/0.60	AK 1012FN160M8/2		23.5x66	-	-	-	-
15000	3	1.8/0.45	5.5/1.4	40	12.5/6.4	0.82/0.62	AK 915FN112M8/2		16x45	450	890	850	17.4
15000	3	2.6/0.6	8.5/2	40/25	18.2/6.5	0.89/0.67	AK 915FN132M8/2		16x45	490	870	890	17.4
20000	2	2.9/0.7	12/2.5	40/25	28/4	0.85/0.60	AK 1020FN160M8/2		23.5x66	-	-	-	-
20000	4	1.35/0.35	5.5/1.4	40	12.5/6.4	0.82/0.62	AK 920FN112M8/2		16x45	565	1015	1040	23.1
20000	4	2/0.5	8.5/2	40/25	18.2/6.5	0.89/0.67	AK 920FN132M8/2		16x45	605	1055	1080	23.1
25000	2	2.9/0.7	13/3.2	30/15	30/10	0.89/0.67	AK 1025FN160M8/2		23.5x66	-	-	-	-
25000	5	1.1/0.27	5.5/1.4	40	12.5/6.4	0.82/0.62	AK 925FN112M8/2		16x45	605	1135	1165	28.8
25000	5	1.6/0.4	8.5/2	40/25	18.2/6.5	0.89/0.67	AK 925FN132M8/2		16x45	645	1175	1205	28.8
30000	6	1.0/0.2	5.5/1.4	40	12.5/6.4	0.82/0.62	AK 930FN112M8/2		16x45	665	-	-	32.5
30000	6	1.3/0.3	8.5/	40/25	18.2/6.5	0.89/0.67	AK 930FN132M8/2		16x45	705	-	-	32.5

**Blank Information is available upon request

Atex Certification

Capacity

Height of Lift (m)

(min:3) (3 included in price)

Guide Price Request Quote

Quantity

Add to Quote Request

Features & Benefits

Compact Design
IP 55 Enclosure
Mechanic Hoist Protection by slipping clutch (AKS4-8)
Overload Protection by current cut-off (AKS9,10)
Plug-in Connection for power supply and pendant control
Zin plated high quality RUD load chain acc. to EN 818-7-T
Large variety of accessories available (upon special request)
German certificate of origin
Capacity Range from 250kg to 30,000kg as standard, but up to 100 tonne on request.

AKS 8-10

Phase Monitoring Relay
Low Voltage Control (42v)
Motor protection by thermal detector
Operational limit switch for lifting/lowering

Dimensions -AKS 4-8


Model	Chain Falls	Load Chain (mm)	Dimensions in mm
Model	Chain Falls	Load Chain (mm)	A	A1	B1	B2	B3	C	C1	D	H	M	M1
AKS 402 - AKS 406	1	5x15	290	235	225	330	12	40	465	40	400	23	17
AKS 410 AKS 412	2	5x15	290	210	225	330	12	40	465	40	460	29	22
AKS 610 AKS 312	1	7x21	320	260	265	390	15	80	560	55	540	29	22
AKS 716	1	9x27	365	300	312	430	15	75	635	55	620	39	29
AKS 620 AKS 625	2	7x21	320	225	265	390	15	80	560	55	640	39	29
AKS 820	1	11.3x31	365	307	312	430	20	70	630	55	590	32	38
AKS 725 AKS 732	2	9x27	365	256	312	430	20	70	635	55	710	48	36
AKS 825	1	11.3x31	365	307	312	430	20	70	630	55	590	32	38
AKS 832 - AKS 850	2	11.3x31	365	256	312	430	20	70	630	55	690	38	45

Dimensions - AKS 9 / 10


AKS 9							AKS 10
Model	Chain Falls	Load Chain (mm)	Dimensions in mm
Model	Chain Falls	Load Chain (mm)	A	A1	B1	B2	B3	C	C1	D	H	M	M1
AKS 905	1	16x45	635	412	290 (360)	520 (562)	80	70	993	52	755	40	45
AKS 906	1	16x45	635	412	290 (360)	520 (562)	80	70	993	52	755	40	45
AKS 910	2	16x45	635	486	290 (360)	520 (562)	80	148	1075	61	940	49	63
AKS 1010	1	23.5x66	707	477	424	727	80	110	983	50	980	57	53
AKS 912	2	16x45	635	486	290 (360)	520 (562)	80	148	1075	61	940	49	63
AKS 1012	1	23.5x66	707	477	424	727	80	110	983	50	980	57	53
AKS 915	3	16x45	760	567	290 (360)	520 (562)	80	157	110	61	1130	55	67
AKS 920	4	16x45	940	640	290 (360)	520 (562)	80	185	1230	71	1170	55	67
AKS 1020	2	23.5x66	773	584	424	727	80	148	1084	76	1255	71	80
AKS 925	5	16x45	1120	710	290 (360)	520 (562)	80	205	1360	76	1270	62	75
AKS 1025	2	23.5x66	773	584	424	727	80	148	1084	76	1255	71	80
AKS 930	6	16x45	1290	790	290 (360)	520 (562)	80	205	1385	76	1270	70	85

The Hadef AK Series Electric Chain Hoist Range

Top Quality Parts

a). Compared to a standard chain acc. to DIN 818
b). High quality RUD load chain of identical size as a) but with improved tolerances.

There are also a number of Chain Fall options available, please see the Buy/Quote tab for more information.

Technical Specifications for the AK Range of Hoists

For other Hadef hoists, please check out our Hadef Electric Chain Hoists & Trolley Hoists Category here.

AKS Stationery with suspended eye			AKR Push Travel Trolley			AKH Hand Geared Trolley				AKE Electric Trolley

Capacity (kg)	Chain Falls	Lifting Speed (m/min)	Output (kW)	Duty Cycle (%)	Current (A)	cos. phi	Model	FEM 9.511/ ISO 4301	Load Chain (mm)	Weight (kg)
Capacity (kg)	Chain Falls	Lifting Speed (m/min)	Output (kW)	Duty Cycle (%)	Current (A)	cos. phi	Model	FEM 9.511/ ISO 4301	Load Chain (mm)	AKS	AKH/AKR	AKE	+1m Lift
250	1	16/4	0.68/0.18	40/25	1.6/1.1	0.76/0.58	AK 402 DT80 N8/2	3m/M6	5x15	65	79	91	0.8
500	1	6	0.63	100	1.85	0.70	AK 405 DT80 K4		5x15	65	79	91	0.8
500	1	9.4/2.3	0.75/0.18	40/25	2.4/1.1	0.76/0.58	AK 405 DT80 N8/2		5x15	65	79	91	0.8
630	1	6	0.63	60	2.1	0.73	AK 406 DT80 K4		5x15	65	79	91	0.8
630	1	9.4/2.3	1.0/0.25	25/15	2.6/1.4	0.76/0.58	AK 406 DT80 N8/2		5x15	65	79	91	0.8
1000	2	3	0.63	100	1.85	0.70	AK 410 DT80 K4		5x15	75	89	101	1.4
1000	2	4.5/1.1	0.75/0.18	40/25	2.4/1.1	0.76/0.58	AK 410 DT80 N8/2		5x15	75	89	101	1.4
1000	1	8/2	1.5/0.37	30/20	4.1/2.1	0.9/0.67	AK 610 DT90 L8/2		7x21	100	126	141	1.3
1250	2	4.5/1.1	1.0/0.25	25/15	2.6/1.4	0.76/0.58	AK 412 DT80 N8/2		5x15	75	89	101	1.4
1250	1	8/2	1.8/0.44	25/15	4.4/2.1	0.9/0.67	AK 612 DT90 L8/2		7x21	100	126	141	1.3
1600	1	8/2	2.1/0.55	40/40	4.6/2.1	0.88/0.68	AK 716 DT100L8/2		9x27	125	167	181	2.1
1600	1	11/2.6	3.2/0.8	30/20	6.4/2.7	0.88/0.68	AK 716 DT100L8/2		9x27	130	172	186	2.1
2000	2	4/1	1.5/0.37	30/20	4.1/2.0	0.9/0.67	AK 620 DT90 L8/2		7x21	105	131	146	2.5
2000	1	10/2.5	3.2/0.75	40/25	7.8/4.1	0.85/0.64	AK 820FN100M8/2		11.3x31	130	172	186	3.1
2500	2	4/1	1.8/0.44	25/15	4.4/2.1	0.9/0.67	AK 625 DT90 L8/2		7x21	105	131	146	2.5
2500	2	5.5/1.3	2.6/0.65	40/25	5.4/2.5	0.88/0.68	AK 725 DT100L8/2		9x27	130	172	186	3.9
2500	1	8/2	4.0/1.1	40/25	10.0/6.0	0.85/0.64	AK 825FN100M8/2		11.3x31	130	172	186	3.1
3200	2	4/1	2.5/0.6	40/40	6.2/3.3	0.88/0.68	AK 732DT100L8/2		9x27	130	172	186	3.9
3200	2	5/1.25	2.5/0.6	40/25	6.2/3.3	0.85/0.64	AK 832FN100M8/2		11.3x31	135	177	191	5.6
4000	2	5/1.25	3.2/0.75	40/25	7.8/4.1	0.85/0.64	AK 840FN100M8/2		11.3x31	135	177	191	5.6
5000	2	4/1	4.0/1.1	40/25	10.0/6.0	0.85/0.64	AK 850FN100M8/2		11.3x31	135	177	203	5.6
5000	1	5.4/1.35	5.5/1.4	40	12.5/6.4	0.82/0.62	AK 905FN112M8/2		16x45	260	345	358	6
5000	1	8/2	8.5/2	40/25	18.2/6.5	0.89/0.67	AK 905FN132M8/2		16x45	300	385	398	6
6300	1	5.4/1.35	6.0/1.5	30/15	13.8/7.0	0.84/0.64	AK 906FN112M8/2		16x45	260	345	358	6
6300	1	8/2	9/2.5	40/25	19/7.0	0.89/0.67	AK 906FN132M8/2		16x45	300	385	398	6
10000	1	5.8/1.4	12/2.5	40/25	28/9.0	0.85/0.60	AK 1010FN160M8/2		23.5x66	-	-	-	-
10000	2	2.8/0.7	5.5/1.4	40	12.5/6.4	0.82/0.62	AK 910FN112M8/2		16x45	350	437	450	11.7
10000	2	4/1	8.5/2	40/25	18.2/6.5	0.89/0.67	AK 910FN132M8/2		16x45	390	477	490	11.7
12000	2	2.8/0.7	6.0/1.5	30/15	13.8/7.0	0.84/0.64	AK 912FN112M8/2		16x45	350	437	450	11.7
12000	2	4/1	9/2.5	40/25	19/7.0	0.89/0.67	AK 912FN132M8/2		16x45	390	477	490	11.7
12500	1	5.8/1.4	13/3.2	30/15	30/10	0.85/0.60	AK 1012FN160M8/2		23.5x66	-	-	-	-
15000	3	1.8/0.45	5.5/1.4	40	12.5/6.4	0.82/0.62	AK 915FN112M8/2		16x45	450	890	850	17.4
15000	3	2.6/0.6	8.5/2	40/25	18.2/6.5	0.89/0.67	AK 915FN132M8/2		16x45	490	870	890	17.4
20000	2	2.9/0.7	12/2.5	40/25	28/4	0.85/0.60	AK 1020FN160M8/2		23.5x66	-	-	-	-
20000	4	1.35/0.35	5.5/1.4	40	12.5/6.4	0.82/0.62	AK 920FN112M8/2		16x45	565	1015	1040	23.1
20000	4	2/0.5	8.5/2	40/25	18.2/6.5	0.89/0.67	AK 920FN132M8/2		16x45	605	1055	1080	23.1
25000	2	2.9/0.7	13/3.2	30/15	30/10	0.89/0.67	AK 1025FN160M8/2		23.5x66	-	-	-	-
25000	5	1.1/0.27	5.5/1.4	40	12.5/6.4	0.82/0.62	AK 925FN112M8/2		16x45	605	1135	1165	28.8
25000	5	1.6/0.4	8.5/2	40/25	18.2/6.5	0.89/0.67	AK 925FN132M8/2		16x45	645	1175	1205	28.8
30000	6	1.0/0.2	5.5/1.4	40	12.5/6.4	0.82/0.62	AK 930FN112M8/2		16x45	665	-	-	32.5
30000	6	1.3/0.3	8.5/	40/25	18.2/6.5	0.89/0.67	AK 930FN132M8/2		16x45	705	-	-	32.5

**Blank Information is available upon request
