- Hadef 22/90 Premium Monorail Geared Travel Trolley, Range 500kg to 25,000kg
Hadef 22/90 Premium Monorail Geared Travel Trolley, Range 500kg to 25,000kg
Multiple Traversing Options Available
Model:
22/90 / HPMG-4353
- Easily installed
- Excellent traverse travel ability due to wheels in ball bearing
- Adjustable to all standard beam sizes
- Integrated derailment and bumping protection
- Manufactured in Germany
Specifications
| Capacity (kg) | Flange Width (mm) | Load Bar Size | Travel Distance @ 30m Hand Chain (m) | Hand Chain Pull (daN) | Weight (without hand chain) (kg) |
| 500 | 50 - 146 147 - 302 |
1N 2V |
7.8 | 6.5 | 6 7,5 |
| 1000 | 50 - 179 180 - 310 |
1N 2V |
10.0 | 10.0 | 11,5 14 |
| 1500 | 50 - 173 174 - 316 |
1N 2V |
10.0 | 15.0 | 17 20,5 |
| 2000 | 50 - 173 174 - 316 |
1N 2V |
10.0 | 20.0 | 17 20,5 |
| 2500 | 66 - 186 187 - 310 |
1N 2V |
6.5 | 12.0 | 30 34,5 |
| 3200 | 66 - 186 187 - 310 |
1N 2V |
6.5 | 16.0 | 30 34,5 |
| 5000 | 74 - 182 183 - 310 |
1N 2V |
6.3 | 17.0 | 53,5 58,5 |
| 6300 | 74 - 164 165 - 310 |
1N 2V |
6.3 | 21.0 | 53,5 58,5 |
| 7500 | 119 - 189 190 - 310 |
1N 2V |
6.4 | 21.0 | 102 113 |
| 10,000 | 119 - 160 161 - 310 |
1N 2V |
3.2 | 14.0 | 102 113 |
| 12,500 | 130 - 310 | 1N | 4.8 | 17.0 | 220 |
| 16,000 | 130 - 310 | 1N | 4.8 | 21.0 | 220 |
| 20,000 | 160 - 310 | 1N | 3.7 | 17.0 | 430 |
| 25,000 | 160 - 310 | 1N | 3.7 | 17.0 | 500 |

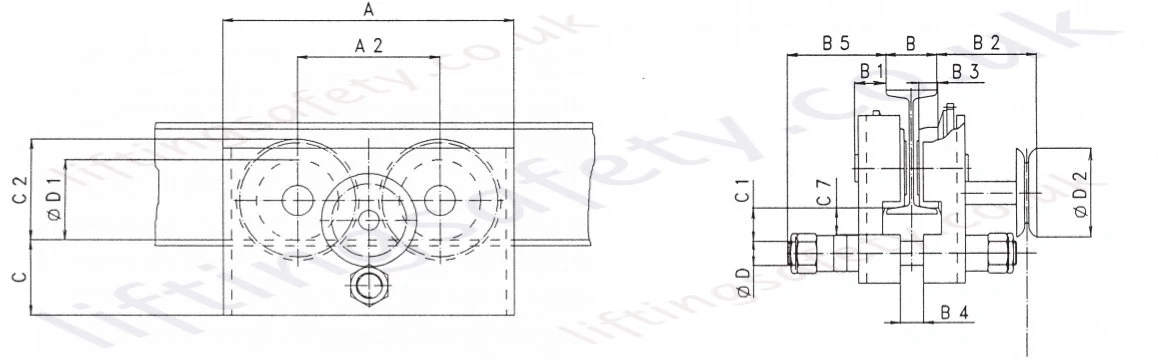

Dimensions
 |
|||||||||||||||||||||
| Load Bar Size = 1N | |||||||||||||||||||||
| Capacity (kg) | Flange Width (mm) | Load Bar Size | Dimensions in mm | ||||||||||||||||||
| A | A1 | A2 | B1 | B2 | B3 | B4 | B5 | B6 | C | C1 | C2 | C3 | C4 | C5 | C7 | D | D1 | D2 | |||
| 500 | 50 - 146 147 - 302 |
1N 2V |
165 | - 10 |
75 | 24 | 99 | 20 | 26 | 127 157 |
7 | 75 113 |
46 39 |
59 | - 96 |
- 28 |
- 17 |
28 | 18 | 50 | 135 |
| 1000 | 50 - 179 180 - 310 |
1N 2V |
232 | - 12 |
110 | 31 | 116 | 20 | 32 | 156 | 7 | 118 151 |
69 56 |
83 | - 134 |
- 33 |
- 17 |
40 | 24 | 65 | 135 |
| 1500 | 50 - 173 174 - 316 |
1N 2V |
240 | - 12 |
110 | 33 | 112 | 20 | 36 | 171 | 7 | 118 166 |
65 54 |
83 | - 144 |
- 40 |
- 22 |
38 | 30 | 65 | 135 |
| 2000 | 50 - 173 174 - 316 |
1N 2V |
240 | - 12 |
110 | 35 | 121 | 20 | 36 | 171 | 7 | 118 166 |
65 54 |
83 | - 144 |
- 40 |
- 22 |
38 | 30 | 65 | 135 |
| 2500 | 66 - 186 187 - 310 |
1N 2V |
315 | - 15 |
148 | 44 | 146 | 23 | 46 | 179 182 |
10 | 134 200 |
76 63 |
107 | - 170 |
- 52 |
- 30 |
43 | 36 | 83 | 195 |
| 3200 | 66 - 186 187 - 310 |
1N 2V |
315 | - 15 |
148 | 44 | 146 | 23 | 46 | 179 182 |
10 | 134 200 |
76 63 |
107 | - 170 |
- 52 |
- 30 |
43 | 36 | 83 | 195 |
| 5000 | 74 - 182 183 - 310 |
1N 2V |
435 | - 20 |
211 | 53 | 145 | 28 | 52 | 183 197 |
13 | 150 229 |
85 73 |
151 | - 194 |
- 62 |
- 35 |
40 | 39 | 120 | 195 |
| 6300 | 74 - 164 165 - 310 |
1N 2V |
435 | - 20 |
211 | 53 | 145 | 28 | 52 | 183 197 |
13 | 150 229 |
85 73 |
151 | - 194 |
- 62 |
- 35 |
40 | 39 | 120 | 195 |
| 7500 | 119 - 189 190 - 310 |
1N 2V |
494 | - 30 |
230 | 69 | 250 | 40 | 74 | 213 241 |
15 | 220 323 |
136 115 |
186 | - 278 |
- 80 |
- 45 |
45 | 48 | 150 | 270 |
| 10,000 | 119 - 160 161 - 310 |
1N 2V |
494 | - 30 |
230 | 69 | 250 | 40 | 74 | 231 241 |
15 | 220 323 |
136 115 |
186 | - 278 |
- 80 |
- 45 |
45 | 48 | 150 | 270 |
| 12,500 | 130 - 310 | 1N | 630 | - | 286 | 91 | 318 | 45 | 84 | 210 | 15 | 246 | 128 | 267 | - | - | - | 50 | 75 | 200 | 365 |
| 16,000 | 130 - 310 | 1N | 630 | - | 286 | 91 | 318 | 45 | 84 | 194 | 15 | 246 | 128 | 267 | - | - | - | 50 | 75 | 200 | 365 |
| 20,000 | 160 - 310 | 1N | 736 | - | 350 | 95 | 321 | 55 | 100 | 199 | 20 | 280 | 150 | 292 | - | - | - | 45 | 80 | 250 | 555 |
| 25,000 | 160 - 310 | 1N | 834 | - | 400 | 97 | 298 | 60 | 106 | 135 | 20 | 318 | 180 | 347 | - | - | - | 50 | 85 | 300 | 555 |
| Load Bar Size = 2V | |||||||||||||||||||||
 |
|||||||||||||||||||||
- Easily installed
- Excellent traverse travel ability due to wheels in ball bearing
- Adjustable to all standard beam sizes
- Integrated derailment and bumping protection
- Manufactured in Germany
Specifications
| Capacity (kg) | Flange Width (mm) | Load Bar Size | Travel Distance @ 30m Hand Chain (m) | Hand Chain Pull (daN) | Weight (without hand chain) (kg) |
| 500 | 50 - 146 147 - 302 |
1N 2V |
7.8 | 6.5 | 6 7,5 |
| 1000 | 50 - 179 180 - 310 |
1N 2V |
10.0 | 10.0 | 11,5 14 |
| 1500 | 50 - 173 174 - 316 |
1N 2V |
10.0 | 15.0 | 17 20,5 |
| 2000 | 50 - 173 174 - 316 |
1N 2V |
10.0 | 20.0 | 17 20,5 |
| 2500 | 66 - 186 187 - 310 |
1N 2V |
6.5 | 12.0 | 30 34,5 |
| 3200 | 66 - 186 187 - 310 |
1N 2V |
6.5 | 16.0 | 30 34,5 |
| 5000 | 74 - 182 183 - 310 |
1N 2V |
6.3 | 17.0 | 53,5 58,5 |
| 6300 | 74 - 164 165 - 310 |
1N 2V |
6.3 | 21.0 | 53,5 58,5 |
| 7500 | 119 - 189 190 - 310 |
1N 2V |
6.4 | 21.0 | 102 113 |
| 10,000 | 119 - 160 161 - 310 |
1N 2V |
3.2 | 14.0 | 102 113 |
| 12,500 | 130 - 310 | 1N | 4.8 | 17.0 | 220 |
| 16,000 | 130 - 310 | 1N | 4.8 | 21.0 | 220 |
| 20,000 | 160 - 310 | 1N | 3.7 | 17.0 | 430 |
| 25,000 | 160 - 310 | 1N | 3.7 | 17.0 | 500 |
Dimensions
|
|||||||||||||||||||||
| Load Bar Size = 1N | |||||||||||||||||||||
| Capacity (kg) | Flange Width (mm) | Load Bar Size | Dimensions in mm | ||||||||||||||||||
| A | A1 | A2 | B1 | B2 | B3 | B4 | B5 | B6 | C | C1 | C2 | C3 | C4 | C5 | C7 | D | D1 | D2 | |||
| 500 | 50 - 146 147 - 302 |
1N 2V |
165 | - 10 |
75 | 24 | 99 | 20 | 26 | 127 157 |
7 | 75 113 |
46 39 |
59 | - 96 |
- 28 |
- 17 |
28 | 18 | 50 | 135 |
| 1000 | 50 - 179 180 - 310 |
1N 2V |
232 | - 12 |
110 | 31 | 116 | 20 | 32 | 156 | 7 | 118 151 |
69 56 |
83 | - 134 |
- 33 |
- 17 |
40 | 24 | 65 | 135 |
| 1500 | 50 - 173 174 - 316 |
1N 2V |
240 | - 12 |
110 | 33 | 112 | 20 | 36 | 171 | 7 | 118 166 |
65 54 |
83 | - 144 |
- 40 |
- 22 |
38 | 30 | 65 | 135 |
| 2000 | 50 - 173 174 - 316 |
1N 2V |
240 | - 12 |
110 | 35 | 121 | 20 | 36 | 171 | 7 | 118 166 |
65 54 |
83 | - 144 |
- 40 |
- 22 |
38 | 30 | 65 | 135 |
| 2500 | 66 - 186 187 - 310 |
1N 2V |
315 | - 15 |
148 | 44 | 146 | 23 | 46 | 179 182 |
10 | 134 200 |
76 63 |
107 | - 170 |
- 52 |
- 30 |
43 | 36 | 83 | 195 |
| 3200 | 66 - 186 187 - 310 |
1N 2V |
315 | - 15 |
148 | 44 | 146 | 23 | 46 | 179 182 |
10 | 134 200 |
76 63 |
107 | - 170 |
- 52 |
- 30 |
43 | 36 | 83 | 195 |
| 5000 | 74 - 182 183 - 310 |
1N 2V |
435 | - 20 |
211 | 53 | 145 | 28 | 52 | 183 197 |
13 | 150 229 |
85 73 |
151 | - 194 |
- 62 |
- 35 |
40 | 39 | 120 | 195 |
| 6300 | 74 - 164 165 - 310 |
1N 2V |
435 | - 20 |
211 | 53 | 145 | 28 | 52 | 183 197 |
13 | 150 229 |
85 73 |
151 | - 194 |
- 62 |
- 35 |
40 | 39 | 120 | 195 |
| 7500 | 119 - 189 190 - 310 |
1N 2V |
494 | - 30 |
230 | 69 | 250 | 40 | 74 | 213 241 |
15 | 220 323 |
136 115 |
186 | - 278 |
- 80 |
- 45 |
45 | 48 | 150 | 270 |
| 10,000 | 119 - 160 161 - 310 |
1N 2V |
494 | - 30 |
230 | 69 | 250 | 40 | 74 | 231 241 |
15 | 220 323 |
136 115 |
186 | - 278 |
- 80 |
- 45 |
45 | 48 | 150 | 270 |
| 12,500 | 130 - 310 | 1N | 630 | - | 286 | 91 | 318 | 45 | 84 | 210 | 15 | 246 | 128 | 267 | - | - | - | 50 | 75 | 200 | 365 |
| 16,000 | 130 - 310 | 1N | 630 | - | 286 | 91 | 318 | 45 | 84 | 194 | 15 | 246 | 128 | 267 | - | - | - | 50 | 75 | 200 | 365 |
| 20,000 | 160 - 310 | 1N | 736 | - | 350 | 95 | 321 | 55 | 100 | 199 | 20 | 280 | 150 | 292 | - | - | - | 45 | 80 | 250 | 555 |
| 25,000 | 160 - 310 | 1N | 834 | - | 400 | 97 | 298 | 60 | 106 | 135 | 20 | 318 | 180 | 347 | - | - | - | 50 | 85 | 300 | 555 |
