Tiger "AGT" Adjustable Geared Travel Trolleys - Range from 1000kg to 10,000kg

Geared travel beam trolley with screw spindle for adjustment.

Model:

TAGT-5123


Description

+

High quality, heavy duty, and easy to adjust girder trolleys with geared / hand chain traversing, which allow you to suspend a lifting appliance or load and easily transport it along the length of the beam.

  • Range from 1t to 10t.
  • Fitted with a screw spindle which allows lockable adjustment to the various flange sizes within it capacity.
  • Locking device with high clamping force.
  • Anti-drop plates ensure extra safety and prevents wheel damage when contacting end stops.
  • Wheels run on sealed bearings for smoother rolling with less effort and maintenance.
  • Operating temp of -30°C to +50°C.
  • 5:1 factor of safety allows for use with manual or powered hoists.
  • Deration to apply when using at angles off the vertical.
  • Meet and exceed all the requirements within BS EN 13157: 2004+A1:2009 and AS1418.2.

Dimensions & Specifications

1-0 6-0t Agt Dimensions 10t Agt Dimensions

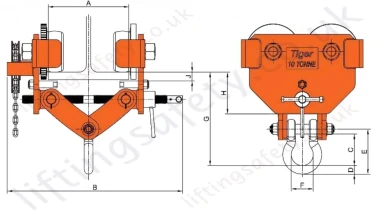

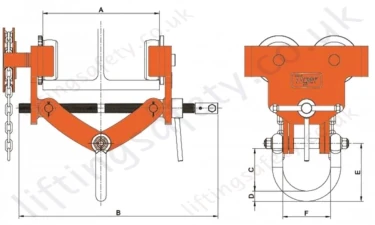

1.0t - 6.0t Tiger AGT Geared Beam Trolley 10t Tiger AGT Geared Beam Trolley
 Model  Capacity (t) A - Beam Width Dimensions (mm) Min. Curve Ratio (m) Weight (kg)
B C D E F G H J
AGT-0100 1 75-210 391 83 16 110 81 255-208 73 27 1 13
AGT-0200 2 75-210 391 94 18 123 89 276-227 79 38 1.3 17
AGT-0300 3 75-210 403 105 22 141 112 288-241 99 35 1.5 28.5
AGT-0600 6 105-305 521 111 27 152 125 358-290 115 46 1.5 40
AGT-1000 10 160-305 606 119 32 170 83 407-352 157 33 2.7 135.5



Pricing

+
Part N° Capacity (t) A - Beam Width Min. Curve Ratio (m) Weight (kg) Guide Price Quantity
5123-T25368 1 75-210 1 13 £  243.00
5123-T25364 2 75-210 1.3 17 £  291.60
5123-T25365 3 75-210 1.5 28.5 £  353.16
5123-T25370 6 105-305 1.5 40 £  525.00
5123-T25367 10 160-305 2.7 135.5 £  1107.00
Pricing Currency: Not available at the moment. Add To Quote Request   ?

High quality, heavy duty, and easy to adjust girder trolleys with geared / hand chain traversing, which allow you to suspend a lifting appliance or load and easily transport it along the length of the beam.

  • Range from 1t to 10t.
  • Fitted with a screw spindle which allows lockable adjustment to the various flange sizes within it capacity.
  • Locking device with high clamping force.
  • Anti-drop plates ensure extra safety and prevents wheel damage when contacting end stops.
  • Wheels run on sealed bearings for smoother rolling with less effort and maintenance.
  • Operating temp of -30°C to +50°C.
  • 5:1 factor of safety allows for use with manual or powered hoists.
  • Deration to apply when using at angles off the vertical.
  • Meet and exceed all the requirements within BS EN 13157: 2004+A1:2009 and AS1418.2.

Dimensions & Specifications

1-0 6-0t Agt Dimensions 10t Agt Dimensions
1.0t - 6.0t Tiger AGT Geared Beam Trolley 10t Tiger AGT Geared Beam Trolley
 Model  Capacity (t) A - Beam Width Dimensions (mm) Min. Curve Ratio (m) Weight (kg)
B C D E F G H J
AGT-0100 1 75-210 391 83 16 110 81 255-208 73 27 1 13
AGT-0200 2 75-210 391 94 18 123 89 276-227 79 38 1.3 17
AGT-0300 3 75-210 403 105 22 141 112 288-241 99 35 1.5 28.5
AGT-0600 6 105-305 521 111 27 152 125 358-290 115 46 1.5 40
AGT-1000 10 160-305 606 119 32 170 83 407-352 157 33 2.7 135.5



Part N° Capacity (t) A - Beam Width Min. Curve Ratio (m) Weight (kg) Guide Price Quantity
5123-T25368 1 75-210 1 13 £  243.00
5123-T25364 2 75-210 1.3 17 £  291.60
5123-T25365 3 75-210 1.5 28.5 £  353.16
5123-T25370 6 105-305 1.5 40 £  525.00
5123-T25367 10 160-305 2.7 135.5 £  1107.00
Pricing Currency: Not available at the moment. Add To Quote Request   ?
