Gunnebo Grade 8 Master Link Assembly "MT Series", for Chain Sizes 6mm to 32mm

Gunnebo Grade 8 Master Link Assembly "MT Series", for Chain Sizes 6mm to 32mm

Gunnebo alloy steel quad assembly suitbale for 7mm to 32mm chain diamaters, designed for use with chain or wire Rope, 3 or 4 Leg slings

Model:

GMML-4213

Gunnebo Grade 8 Master Link Assembly "MT Series", for Chain Sizes 6mm to 32mm

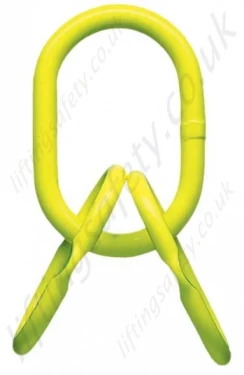

Gunnebo Master Link Quad Assy
More from:
Gunnebo
  • Designed for use with chain or wire rope, for 3 & 4 leg slings.
  • Flattened section on all sublinks for sizes up to MT-16-10, except for size MT-9-10, which not have the flattened section.
  • Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M, ASME B30.26, AS 3775:2014 and AS 3776:2015.

Dimensions & Specifications

Type WLL (t) For Chain mm, 3-4-Leg L1 (mm) L (mm) E (mm) D (mm) (l) (mm) e (mm) d (mm) Weight (kg)
MT-6-10 3.5 6 270 150 90 19 120 70 14 1.97
MT-8-10 5.2 7,8 300 160 95 22 140 80 17 3.02
MT-10-10 11.5 10 360 200 120 30 160 95 22 6.36
MT-13-10 17 13 440 250 150 40 200 110 28 13.6
MT-16-10 28 16 500 300 200 50 200 120 32 22.77
MT-20-10 35 19,20 550 300 200 55 250 150 40 33.5
MT-22-10 53 22 610 350 200 60 260 140 45 44.5
MT-26-10 70 26 730 450 250 70 280 160 50 69
MT-32-10 90 32 750 450 260 80 280 160 55 89.5
Grade8 Master Link MT Dimensions



Part N° Type WLL (t) For Chain mm, 3-4-Leg L1 (mm) L (mm) E (mm) D (mm) (l) (mm) e (mm) d (mm) Weight (kg) Guide Price (Ex. VAT) Quantity
4213-T22297
Z100902 		MT-6-10 3.5 6 270 150 90 19 120 70 14 1.97 Quote Required
4213-T22298
Z100903 		MT-8-10 5.2 8 300 160 95 22 140 80 17 3.02 Quote Required
4213-T22299
Z100904 		MT-10-10 11.5 10 360 200 120 30 160 95 22 6.36 Quote Required
4213-T22300
Z100905 		MT-13-10 17.0 13 440 250 150 40 200 110 28 13.6 Quote Required
4213-T22301
Z100906 		MT-16-10 28.0 16 500 300 200 50 200 120 32 22.77 Quote Required
4213-T22302
Z101074 		MT-20-10 35.0 20 550 300 200 55 250 150 40 33.5 Quote Required
4213-T22303
Z101281 		MT-22-10 53.0 22 610 350 200 60 260 140 45 44.5 Quote Required
4213-T22304
Z101282 		MT-26-10 70.0 26 730 450 250 70 280 160 50 69 Quote Required
4213-T22305
Z101283 		MT-32-10 90.0 32 750 450 260 80 280 160 55 89.5 Quote Required
Description

  • Designed for use with chain or wire rope, for 3 & 4 leg slings.
  • Flattened section on all sublinks for sizes up to MT-16-10, except for size MT-9-10, which not have the flattened section.
  • Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M, ASME B30.26, AS 3775:2014 and AS 3776:2015.

Dimensions & Specifications

Type WLL (t) For Chain mm, 3-4-Leg L1 (mm) L (mm) E (mm) D (mm) (l) (mm) e (mm) d (mm) Weight (kg)
MT-6-10 3.5 6 270 150 90 19 120 70 14 1.97
MT-8-10 5.2 7,8 300 160 95 22 140 80 17 3.02
MT-10-10 11.5 10 360 200 120 30 160 95 22 6.36
MT-13-10 17 13 440 250 150 40 200 110 28 13.6
MT-16-10 28 16 500 300 200 50 200 120 32 22.77
MT-20-10 35 19,20 550 300 200 55 250 150 40 33.5
MT-22-10 53 22 610 350 200 60 260 140 45 44.5
MT-26-10 70 26 730 450 250 70 280 160 50 69
MT-32-10 90 32 750 450 260 80 280 160 55 89.5
Grade8 Master Link MT Dimensions



Pricing (Buy/Quote)
