Cromox CAK Stainless Steel Master Link Sub Assembly - 0.6t up to 23.1t

Cromox CAK Stainless Steel Master Link Sub Assembly - 0.6t up to 23.1t

Grade 60 stainless steel master ring sub-assembly for use with 3 or 4 leg lifting chain slings.

Model:

Cromox CAK / CCML-5537

Cromox CAK Stainless Steel Master Link Sub Assembly - 0.6t up to 23.1t

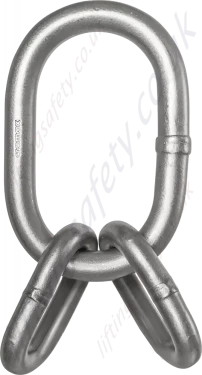

Cromox CAK Masterlink Sub Assembly

Cromox® stainless steel master links and sub-assemblies are manufactured by machine with the utmost precision.

With their corrosion resistance and high-quality surface, they are ideal for use in clean rooms, the food industry, meat processing, the chemical industry, and the pharmaceutical sector. But the oval rings made of AISI 318LN stainless steel also impress with their long-term resistance in offshore applications when used in salt water or in pickling plants in contact with acids. cromox® master links are available in "1-leg" and "2-leg" versions.

Also available are Cromox® master rings for 1-leg or 2-leg chain sling assemblies (See the Cromox CAG master link or CAGF master link with flat).

Features

  • Made from 1.4462 Duplex / AISI 318LN stainless steel
  • Optionally with flat point for mounting connecting shackles (Cromox CAKF)
  • Correspond to Grade 60

Advantages Cromox master links

With a long-standing market presence and internationally recognised expertise in the lifting and industrial sector, the Cromox brand has established itself as a reliable partner for master links and sub-assemblies.

The cromox® master links and sub-assemblies are testament to in-depth industry knowledge and extensive experience in lifting and conveyor technology. We offer solutions that not only fulfil the high demands of the industry, but also impress with their reliability and functionality. These products are in line with our commitment to quality, safety, and innovation, which makes our products an indispensable part of efficient system solutions.

Specifications

Type  WLL (t) For Chain Dia. (mm) Dimensions (mm) Weight (kg, approx.)
β = 45° β = 60° d t b
CAK 10/8 0.80 0.6 4 A 10
B 8
80
35
50
19
0.24
CAK 13/10 1.30 0.9 5 A 13
B 10
110
44
60
25
0.52
CAK 16/13 2.65 1.85 6/7 A 16
B 13
110
54
60
25
0.97
CAK 18/16 3.25 2.3 8 A 18
B 16
135
70
75
34
1.6
CAK 22/18 5.15 3.65 10 A 22
B 18
160
85
90
40
2.76
CAK 26/22 8.15 5.75 13 A 26
B 22
180
115
100
50
4.45
CAK 32/26 12.60 9.0 16 A 32
B 26
200
140
110
65
7.55
CAK 45/32 16.80 12.0 18 A 45
B 32
320
140
175
70
17.8
CAK 50/36 23.10 16.5 22 A 50
B 36
340
160
190
80
24.4

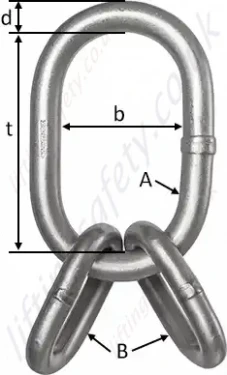

Dimensional Drawing

Corrosion-resistant master links and sub-assemblies offer safety and durability in challenging environmental conditions

The use of corrosion-resistant materials is essential in environments with high corrosion resistance requirements, such as chemical plants, in the maritime or offshore industry or in areas exposed to severe weather conditions. Master links and sub-assemblies made of stainless steel play an important role here, as they ensure the stable and secure suspension of objects.

These components must be made of materials that can withstand these conditions, especially when exposed to high loads, such as chemicals, salt water or high temperatures.

The stainless steel chosen for the cromox® product line is a material that is particularly suitable for these applications. The alloys with a high chromium and nickel content are particularly noteworthy here. They form a thin but very dense and stable layer of chromium oxide on the surface, which protects the underlying material from corrosion.

When selecting the right material for a sub-assembly or master link, it is important to precisely define the environment and load to which the components will be exposed. This is the only way to ensure safe, reliable, and long-term function.

System solutions for industrial lifting applications – everything from a single source

System solutions in the lifting industry refer to integrated and comprehensive solutions that cover all aspects of lifting operations and are ideally offered by one manufacturer in a coordinated manner. In addition to the lifting equipment itself (such as chains, lifting links and heads, load hooks, connecting links and other lifting points), this can also include the maintenance and repair of these products, training for operators and other services.

The advantage of system solutions ("everything from a single source") is that customers have a single supplier for all their product requirements in relation to lifting operations. Especially when it comes to customised system solutions, it is an advantage to have a single point of contact and manufacturer. The individual components are harmonised with each other. This can improve the efficiency and effectiveness of lifting operations and production processes, reduce the risk of problems or errors, and cut costs.

Part N° WLL (t) - β = 45° WLL (t) - β = 60° For Chain Dia. (mm) Weight (kg, approx.) Unit Price Quantity
5537-T28725
CAK-10/8
0.80 0.6 4 0.24 Quote Required
5537-T28726
CAK-13/10
1.30 0.9 5 0.52 Quote Required
5537-T28727
CAK-16/13
2.65 1.85 6/7 0.97 Quote Required
5537-T28728
CAK-18/16
3.25 2.3 8 1.6 Quote Required
5537-T28729
CAK-22/18
5.15 3.65 10 2.76 Quote Required
5537-T28730
CAK-26/22
8.15 5.75 13 4.45 Quote Required
5537-T28731
CAK-32/26
12.60 9.0 16 7.55 Quote Required
5537-T28732
CAK-45/32
16.80 12.0 18 17.8 Quote Required
5537-T28733
CAK-50/36
23.10 16.5 22 24.4 Quote Required


Cromox® stainless steel master links and sub-assemblies are manufactured by machine with the utmost precision.

With their corrosion resistance and high-quality surface, they are ideal for use in clean rooms, the food industry, meat processing, the chemical industry, and the pharmaceutical sector. But the oval rings made of AISI 318LN stainless steel also impress with their long-term resistance in offshore applications when used in salt water or in pickling plants in contact with acids. cromox® master links are available in "1-leg" and "2-leg" versions.

Also available are Cromox® master rings for 1-leg or 2-leg chain sling assemblies (See the Cromox CAG master link or CAGF master link with flat).

Features

  • Made from 1.4462 Duplex / AISI 318LN stainless steel
  • Optionally with flat point for mounting connecting shackles (Cromox CAKF)
  • Correspond to Grade 60

Advantages Cromox master links

With a long-standing market presence and internationally recognised expertise in the lifting and industrial sector, the Cromox brand has established itself as a reliable partner for master links and sub-assemblies.

The cromox® master links and sub-assemblies are testament to in-depth industry knowledge and extensive experience in lifting and conveyor technology. We offer solutions that not only fulfil the high demands of the industry, but also impress with their reliability and functionality. These products are in line with our commitment to quality, safety, and innovation, which makes our products an indispensable part of efficient system solutions.

Specifications

Type  WLL (t) For Chain Dia. (mm) Dimensions (mm) Weight (kg, approx.)
β = 45° β = 60° d t b
CAK 10/8 0.80 0.6 4 A 10
B 8
80
35
50
19
0.24
CAK 13/10 1.30 0.9 5 A 13
B 10
110
44
60
25
0.52
CAK 16/13 2.65 1.85 6/7 A 16
B 13
110
54
60
25
0.97
CAK 18/16 3.25 2.3 8 A 18
B 16
135
70
75
34
1.6
CAK 22/18 5.15 3.65 10 A 22
B 18
160
85
90
40
2.76
CAK 26/22 8.15 5.75 13 A 26
B 22
180
115
100
50
4.45
CAK 32/26 12.60 9.0 16 A 32
B 26
200
140
110
65
7.55
CAK 45/32 16.80 12.0 18 A 45
B 32
320
140
175
70
17.8
CAK 50/36 23.10 16.5 22 A 50
B 36
340
160
190
80
24.4
Dimensional Drawing

Corrosion-resistant master links and sub-assemblies offer safety and durability in challenging environmental conditions

The use of corrosion-resistant materials is essential in environments with high corrosion resistance requirements, such as chemical plants, in the maritime or offshore industry or in areas exposed to severe weather conditions. Master links and sub-assemblies made of stainless steel play an important role here, as they ensure the stable and secure suspension of objects.

These components must be made of materials that can withstand these conditions, especially when exposed to high loads, such as chemicals, salt water or high temperatures.

The stainless steel chosen for the cromox® product line is a material that is particularly suitable for these applications. The alloys with a high chromium and nickel content are particularly noteworthy here. They form a thin but very dense and stable layer of chromium oxide on the surface, which protects the underlying material from corrosion.

When selecting the right material for a sub-assembly or master link, it is important to precisely define the environment and load to which the components will be exposed. This is the only way to ensure safe, reliable, and long-term function.

System solutions for industrial lifting applications – everything from a single source

System solutions in the lifting industry refer to integrated and comprehensive solutions that cover all aspects of lifting operations and are ideally offered by one manufacturer in a coordinated manner. In addition to the lifting equipment itself (such as chains, lifting links and heads, load hooks, connecting links and other lifting points), this can also include the maintenance and repair of these products, training for operators and other services.

The advantage of system solutions ("everything from a single source") is that customers have a single supplier for all their product requirements in relation to lifting operations. Especially when it comes to customised system solutions, it is an advantage to have a single point of contact and manufacturer. The individual components are harmonised with each other. This can improve the efficiency and effectiveness of lifting operations and production processes, reduce the risk of problems or errors, and cut costs.
