The Gebuwin battery drill powered worm gear winch has a robust build and provides an effective solution for locations without electricity, as well in situations where hoisting of a load is needed for a limited distance. The winch has a flexible coupling for connecting a battery drilling machine or an electric drilling machine.
The hoisting capacity of the winch is 200kg which is calculated according to the first cable layer on the cable drum. The closed worm gear box has a transmission with a self braking capacity. This self braking capacity ensures a hold of the load at any required height during hoisting and lowering.
All rotating parts run in maintenance free bearings. The winch can be wall mounted or console mounted, and is available in grey/black paint.
Product features
- Robust construction.
- Used for hoisting and pulling loads on locations without electricity.
- Used for limited hoisting and pulling distances.
- Flexible coupling for easy connection of a cordless battery machine.
- Also suitable for an electric drilling machine.
- Wall and floor (console) mounted option.
- The closed worm gear box has a self-braking transmission.
- Maintenance free aluminium closed gear box.
- Zinc plated cable drum finish.
- Static safety minimum factor 4.
- Standard paint finish in grey (RAL 7035) according to DIN 12944, C1M.
- Drill not included.
Dimensions
Dimensions when wall mounted

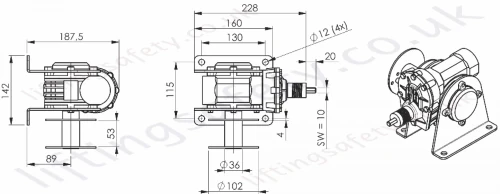

Dimensions with floor mounted
Technical Specifications
Capacity: 1st Cable Layer |
200kg |
Capacity: Last Cable Layer (7th) |
90kg |
Max. Drill / Driver Speed |
1400rpm |
Hexagon Adapter |
10mm |
Max. Hoisting Speed |
800mm/min |
Hoist Length with 200kg and Cordless Drill 14,4V -3Ah |
8m |
Cable Capacity |
18m |
Cable Dia. |
4mm |
Cable Min. Breaking Load |
9kN |
Floor or Wall Mount Fixings |
4 x M10 Class 8.8 |
Weight |
6kg |
May be subject to change
Wall/Side Mounting Example
Floor/Console Mounting Example
