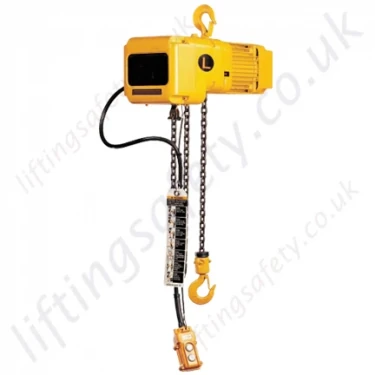

Kito SNER Extreme Duty Electric Chain Hoist - Range from 250kg to 3000kg

Heavy duty rated electric hoist, a revolutionary 220v unmatched single phase hoist.

Model:

Kito SNER / EDEC-3095


Description

+

The Kito SNER electric chain hoists are built for extreme duty applications which require a single phase power supply. The Kito SNER is an electric hoist with a 60 minute, H4 duty rated motor which is revolutionary and unmatched by any other single phase electric chain hoist. Maintenance friendly features include a unique chain guide, hinged control panel, sealed housing and durable load sheave.

Hoist Features

  • 60 minute, H4 rated, fan cooled motor for the most demanding applications.
  • Ability to accommodate long lifts.
  • Advanced fail-safe pull rotor brake is self-adjusting and virtually maintenance free.
  • Compact, low headroom design for work in tight spaces.
  • Standard upper limit switch protects the hoist from overlifting.
  • Spur gears immersed in oil bath ensure quiet, smooth operation and long life.
  • Unique chain guide design for smooth chain travel.
  • Friction clutch protects the hoist against over travel and overload damage.
  • 360° swivel bottom hook with built-in bearing, for easy positioning.
  • Weathertight construction resists dust and water.
  • Tested to 125% of rated capacity.

Options

  • Custom lift lengths to suit your requirements.
  • Chain bag to keep chain clean and out of the way.
  • Plain or Geared trolley mount for improved load control.

Specifications

Duty Ratings Single Speed
ASME Class H4
Max. Starts /hr 360
%ED 60
Short Time Rating 60 min

Standards

  • CSA Electrical Approval.
  • ASME B30.16 Safety Standard.
  • ASME HST-1 Performance Standard.
  • Grade 80, Nickel-plated Load Chain.
  • IP55 Environmental Protection.
Capacity (kg) Model Lift Speed Hoist Motor H.P. Rated Current (amps) Headroom (in) Load Chain Falls Ship Weight Weight per Additional 5 ft (1.5m) of Lift
ft/min (m/min) @
115V		 @
230V		 Hook Mount Plain Trolley Geared Trolley lbs / (kg) lbs / (kg)
250 SNER003S 14 (4.27) 0.34 7.7 3.9 13.8 (351mm) 15.4 (391mm) 16.1 (409mm) 1 82 (37.2) 1.85 (0.84)
500 SNER005L 7 (2.13) 0.34 7.7 3.9 14 (356mm) 15.4 (391mm) 16.1 (409mm) 1 84 (38.1) 2.85 (1.29)
500 SNER005S 15 (4.57) 0.6 16.9 8.5 14.6 (371mm) 16.1 (409mm) 16.9 (429mm) 1 104 (47.2) 2.85 (1.29)
1000 SNER010L 7 (2.13) 0.6 16.9 8.5 16.1 (409mm) 18.1 (460mm) 18.1 (460mm) 1 110 (49.9) 4.65 (2.11)
1000 SNER010S 14 (4.27) 1.2 23.9 12 17.3 (439mm) 19.5 (495mm) 19.5 (495mm) 1 159 (72.1) 4.65 (2.11)
2000 SNER020L 7 (2.13) 1.2 23.9 12 22.6 (574mm) 24.6 (625mm) 24.6 (625mm) 1 174 (78.9) 7.5 (3.40)
3000 SNER030C 3.5 (1.07) 1.2 23.9 12 29.5 (749mm) 29.3 (744mm) 29.3 (744mm) 2 207 (93.9) 15.5 (7.03)

The Kito SNER electric chain hoists are built for extreme duty applications which require a single phase power supply. The Kito SNER is an electric hoist with a 60 minute, H4 duty rated motor which is revolutionary and unmatched by any other single phase electric chain hoist. Maintenance friendly features include a unique chain guide, hinged control panel, sealed housing and durable load sheave.

Hoist Features

  • 60 minute, H4 rated, fan cooled motor for the most demanding applications.
  • Ability to accommodate long lifts.
  • Advanced fail-safe pull rotor brake is self-adjusting and virtually maintenance free.
  • Compact, low headroom design for work in tight spaces.
  • Standard upper limit switch protects the hoist from overlifting.
  • Spur gears immersed in oil bath ensure quiet, smooth operation and long life.
  • Unique chain guide design for smooth chain travel.
  • Friction clutch protects the hoist against over travel and overload damage.
  • 360° swivel bottom hook with built-in bearing, for easy positioning.
  • Weathertight construction resists dust and water.
  • Tested to 125% of rated capacity.

Options

  • Custom lift lengths to suit your requirements.
  • Chain bag to keep chain clean and out of the way.
  • Plain or Geared trolley mount for improved load control.

Specifications

Duty Ratings Single Speed
ASME Class H4
Max. Starts /hr 360
%ED 60
Short Time Rating 60 min

Standards

  • CSA Electrical Approval.
  • ASME B30.16 Safety Standard.
  • ASME HST-1 Performance Standard.
  • Grade 80, Nickel-plated Load Chain.
  • IP55 Environmental Protection.
Capacity (kg) Model Lift Speed Hoist Motor H.P. Rated Current (amps) Headroom (in) Load Chain Falls Ship Weight Weight per Additional 5 ft (1.5m) of Lift
ft/min (m/min) @
115V		 @
230V		 Hook Mount Plain Trolley Geared Trolley lbs / (kg) lbs / (kg)
250 SNER003S 14 (4.27) 0.34 7.7 3.9 13.8 (351mm) 15.4 (391mm) 16.1 (409mm) 1 82 (37.2) 1.85 (0.84)
500 SNER005L 7 (2.13) 0.34 7.7 3.9 14 (356mm) 15.4 (391mm) 16.1 (409mm) 1 84 (38.1) 2.85 (1.29)
500 SNER005S 15 (4.57) 0.6 16.9 8.5 14.6 (371mm) 16.1 (409mm) 16.9 (429mm) 1 104 (47.2) 2.85 (1.29)
1000 SNER010L 7 (2.13) 0.6 16.9 8.5 16.1 (409mm) 18.1 (460mm) 18.1 (460mm) 1 110 (49.9) 4.65 (2.11)
1000 SNER010S 14 (4.27) 1.2 23.9 12 17.3 (439mm) 19.5 (495mm) 19.5 (495mm) 1 159 (72.1) 4.65 (2.11)
2000 SNER020L 7 (2.13) 1.2 23.9 12 22.6 (574mm) 24.6 (625mm) 24.6 (625mm) 1 174 (78.9) 7.5 (3.40)
3000 SNER030C 3.5 (1.07) 1.2 23.9 12 29.5 (749mm) 29.3 (744mm) 29.3 (744mm) 2 207 (93.9) 15.5 (7.03)
