Yale "TKR" Crane Weigher with Remote Handset, Large 20.5mm LCD Display, Big Top Ring, Swivel Hook - Range from 1000kg to 12,000kg

Tigrip compact crane weighers.

Model:

Yale TKR / CWWR-3105


The TKR crane weigher can be operated by radio control. The displayed values can be taken off the remote control device and can be easily transferred to a PC. The system can be combined with an easy-to-read display. Several measured values can be totalled and saved.

Measuring range: 0 - 12 tonnes

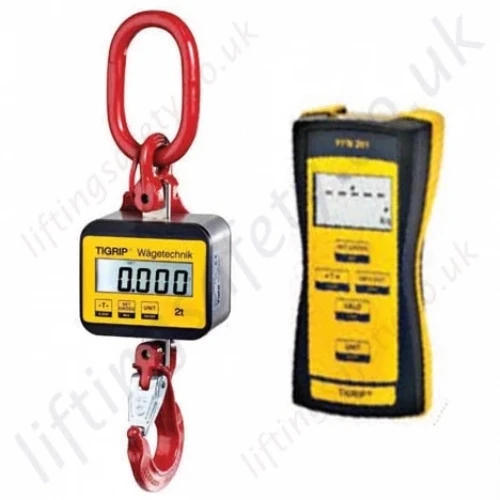

The new Tigrip crane weighers, TKR, are compact measuring devices for the weighing of loads. The TKR model comes complete with a radio remote control.

Use appropriate attachments like grade 8 forgings between the hook of the hoist or crane, the crane weigher, and the load. They are very simple and straight forward to use!

The crane weighers have a liquid crystal display (LCD), which can tare as well as show either the gross or the net load. It also indicates overload at 110% of the rated capacity and the status of the battery.

Features and benefits include

  • High accuracy.
  • Lightweight design.
  • Easy-to-read display.
  • Easy to use.
  • Robust design.
  • Housing can be rotated 180°
  • Retains the peak value to memory.
  • The battery capacity provides for around 200 operating hours.
  • Automatic setting to zero when crane weigher is switched on.
  • Use of rechargeable batteries possible (external battery charger*).
  • Display of maximum weight (gross/net).
  • Display of measuring units at the load indicator.
  • Measuring units: kg, tonnes, lbs, and kN.
  • Automatic stand-by for a prolonged battery lifetime.
  • Simple change of batteries.
  • Warning, if batteries are low.
  • Overload warning.
  • Remote control and data exchange via radio transmission.
  • USB interface.
  • Accumulation memory.

Included in delivery of TKL

  • Crane weigher

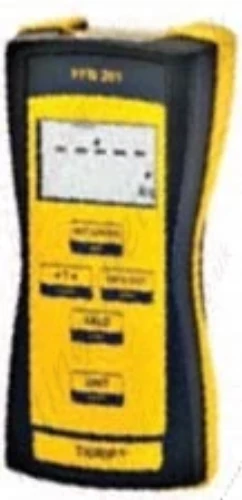

  • Remote control with display.
  • 7 x 1.5 V AA batteries.
  • Test certificate.
  • PC cable.
  • User software.
  • Carrying case.

*NB. External battery charger is not supplied as standard, but must be specified as an optional extra.

Technical Information

  • Operation time, approximately 200 hours with 4 x 1.5V AA batteries.
  • Temperature range when in operation -100C to +500C.
  • Temperature range when in storage -200C to +700C.
  • IP 54 protection.
  • 20.5mm high LCD display (4.5 digits).
  • Tare range is 100% of rated capacity.
  • Overload warning at 110% of the rated capacity.

Technical Specifications

Model Measuring Range Nominal Load Limit Load Braking Load Complete Unit Weight Accuracy of the end value Resolution step (partition) Availability Note
tonnes tonnes tonnes tonnes (kg) % kg
TKR 1.0 0 - 1 1 1.1 >4 3 0.1 0.5
TKR 2.0 0 - 2 2 2.2 >8 3.5 0.1 1  Model No Longer Available
TKR 3.2 0 - 3.2 3.2 3.5 >13 6 0.1 1
TKR 5.0 0 - 5 5 5.5 >20 7.5 0.1 1
TKR 8.0 0 - 8 8 8.8 >32 10.5 0.1 2   Model No Longer Available
TKR 12.0 0 - 12 12 13.2 >48 20 0.1 5   Model No Longer Available

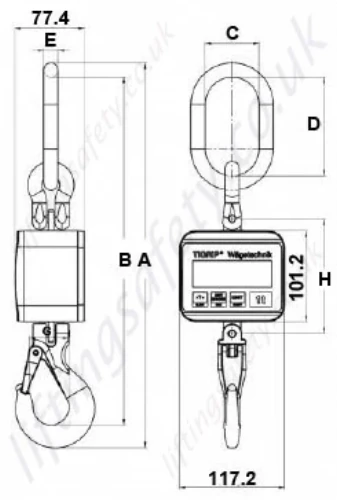

Dimensions

Dimensional Drawing Model A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) J (mm)
TKL 1.0 389 356 60 110 13 20 70 128 77.4
TKL 2.0 417 379 60 110 16 25 81 136 77.4
TKL 3.2 488 441 75 125 18 32 103 140 84.4
TKL 5.0 571 514 90 160 22 40 126 148 84.4
TKL 8.0 657 588 100 180 26 49 152 158 97.4
TKL 12.0 804 709 140 260 35 45 190 176 97.4
TKL-TZR-BA-GB.pdf

Operating manual

Full product specifications and operating manual.
(approx. 0.7Mb)
Part N° Measuring Range (tonnes) Nominal Load (tonnes) Limit Load (tonnes) Braking Load (tonnes) Complete Unit Weight (kg) Accuracy of the end value (%) Resolution step (partition) (kg) Unit Price Quantity
3105-T20202
TKR 1.0
0 - 1 1 1.1 >4 3 0.1 0.5 £ 3289.48
3105-T20204
TKR 3.2
0 - 3.2 3.2 3.5 >13 6 0.1 1 £ 3378.22
3105-T20205
TKR 5.0
0 - 5 5 5.5 >20 7.5 0.1 1 £ 3487.23
Add To Quote Request   ?
