William Hackett ATEX Push Travel Girder Trolley - Range 500kg to 2000kg

William Hackett ATEX Push Travel Girder Trolley - Range 500kg to 2000kg

Hackett ATEX manual push / pull travel beam trolley.

Model:

044.Atex Series / WHAP-4574

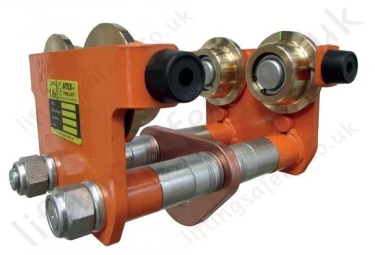

William Hackett ATEX Push Travel Girder Trolley - Range 500kg to 2000kg

Hackett Atex Trolley
More from:
William Hackett

The high quality trolley range is precision engineered in capacities from 500kg to 2 tonne.

Enabling exact positioning or easy traversing of large loads incorporating manual hoists, the Hackett series push trolley can be supplied to suit various track widths.

The trolley wheels are precision machined and they rotate on maintenance sealed ball bearings and as with all Hackett push trolleys are fitted with anti-jump bars and rubber end stops as standard.

  • In accordance with: ATEX Directive 2014/34/EU and Machinery Directive 2006/42/EC.
  • Standard Range 0.5 tonne to 2.0 tonne (Other sizes available upon request).
  • 1 & 2 tonne models available to suite various beam widths (see "Beam Range 1" & "Beam Range 2" on table below)
  • Fitted with solid bronze wheels.
  • Copper plated hanging plate.
  • Fitted with rubber end stops.
  • Capacity options are available up to 5 tonne upon request, to suit beam widths up to 305mm.

Dimensions and Specifications

Capacity (tonnes) Min. Radius of Curve (m) a (mm) b (mm) c (mm) d (mm) e (mm) F (mm) Beam Range 1 (mm) Beam Range 2 (mm) Mass (Kg)
0.5 0.8 200 166 22 203 34 289 50 - 203 - 6.5
1 0.9 232 196 30 203 34.6 309 64 - 203 64 - 305 10.0
2 1 260 226 37 203 34.5 318 88 - 203 88 - 305 15.5
3.2  TBC  TBC TBC  TBC  TBC  TBC TBC  100 - 203 100 - 305 26.5
5  TBC  TBC  TBC TBC  TBC  TBC TBC  114 - 203 114 - 305 38.0

*Installation clearance - Beam flange to trolley wheel: 500kg - 5t = 1.5mm - 3mm per side; 10t = 2mm - 3.5mm per side

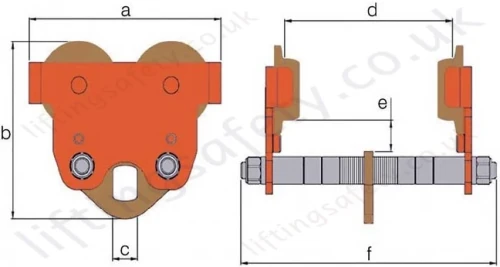

Hackett Atex Trolley Dimensions
Part N° Capacity (t) Beam Range (mm) Weight (kg) Unit Price (Ex. VAT) Quantity
4574-T28816
044.ATEX.050 		0.5 50-203 6.5 £609.15
4574-T28817
044.ATEX.100 Range 1 		1 64-203 10 £663.83
4574-T28818
044.ATEX.100 Range 2 		1 64-305 10 £763.40
4574-T28819
044.ATEX.200 Range 1 		2 88-203 15.5 £911.40
4574-T28820
044.ATEX.200 Range 2 		2 88-305 15.5 £1,002.54
4574-T28821
044.ATEX.320 Range 1 		3.2 100-203 26.5 £1,250.00
4574-T28822
044.ATEX.320 Range 2 		3.2 100-305 26.5 £1,350.00
4574-T28823
044.ATEX.500 Range 1 		5 114-203 38 £1,650.00
4574-T28824
044.ATEX.500 Range 2 		5 114-305 38 £1,780.00
Availability Usually 1-2 Working Days - 1pm cut-off
Add to Shopping Basket
Please Note: Buy online is only available to UK mainland customers and addresses.
Description

The high quality trolley range is precision engineered in capacities from 500kg to 2 tonne.

Enabling exact positioning or easy traversing of large loads incorporating manual hoists, the Hackett series push trolley can be supplied to suit various track widths.

The trolley wheels are precision machined and they rotate on maintenance sealed ball bearings and as with all Hackett push trolleys are fitted with anti-jump bars and rubber end stops as standard.

  • In accordance with: ATEX Directive 2014/34/EU and Machinery Directive 2006/42/EC.
  • Standard Range 0.5 tonne to 2.0 tonne (Other sizes available upon request).
  • 1 & 2 tonne models available to suite various beam widths (see "Beam Range 1" & "Beam Range 2" on table below)
  • Fitted with solid bronze wheels.
  • Copper plated hanging plate.
  • Fitted with rubber end stops.
  • Capacity options are available up to 5 tonne upon request, to suit beam widths up to 305mm.

Dimensions and Specifications

Capacity (tonnes) Min. Radius of Curve (m) a (mm) b (mm) c (mm) d (mm) e (mm) F (mm) Beam Range 1 (mm) Beam Range 2 (mm) Mass (Kg)
0.5 0.8 200 166 22 203 34 289 50 - 203 - 6.5
1 0.9 232 196 30 203 34.6 309 64 - 203 64 - 305 10.0
2 1 260 226 37 203 34.5 318 88 - 203 88 - 305 15.5
3.2  TBC  TBC TBC  TBC  TBC  TBC TBC  100 - 203 100 - 305 26.5
5  TBC  TBC  TBC TBC  TBC  TBC TBC  114 - 203 114 - 305 38.0

*Installation clearance - Beam flange to trolley wheel: 500kg - 5t = 1.5mm - 3mm per side; 10t = 2mm - 3.5mm per side

Hackett Atex Trolley Dimensions
