- Riley Superclamp "B" Adjustable Runway Beam Trolley - Range from of 3000kg to 10,000kg

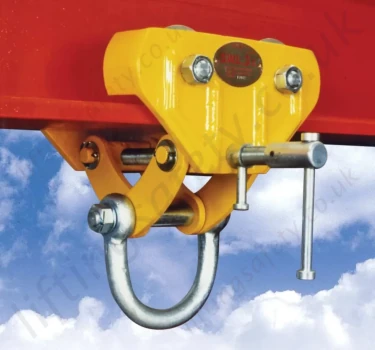

Riley Superclamp "B" Adjustable Runway Beam Trolley - Range from of 3000kg to 10,000kg
Incorporating Wheelguarding Anti-Drop Plates, Width Adjusting and Lifting Shackle.
ARBT-3366
These adjustable beam trolleys are of acknowledged and experienced design. The unique quality features of this new range of manual traveling gear are the wheel guarding anti-drop plates, which are incorporated into the practical design of these transferable and mobile securing attachments. To compliment this range, reference is made to SUPERCLAMP geared runway beam trolleys which allow additional ease of load conveyance.
The left and right hand threaded adjusting bar only requires turning so as to ensure appropriate adaptation to a beam width, and the trolley is ready for use.
No additional tools or width adjusting components are required.
Fitted with a width adjustment locking mechanism and wheel guarding anti-drop plates, this range of products could well be one of the great innovations to secure safety and health in the home workshop and at work.

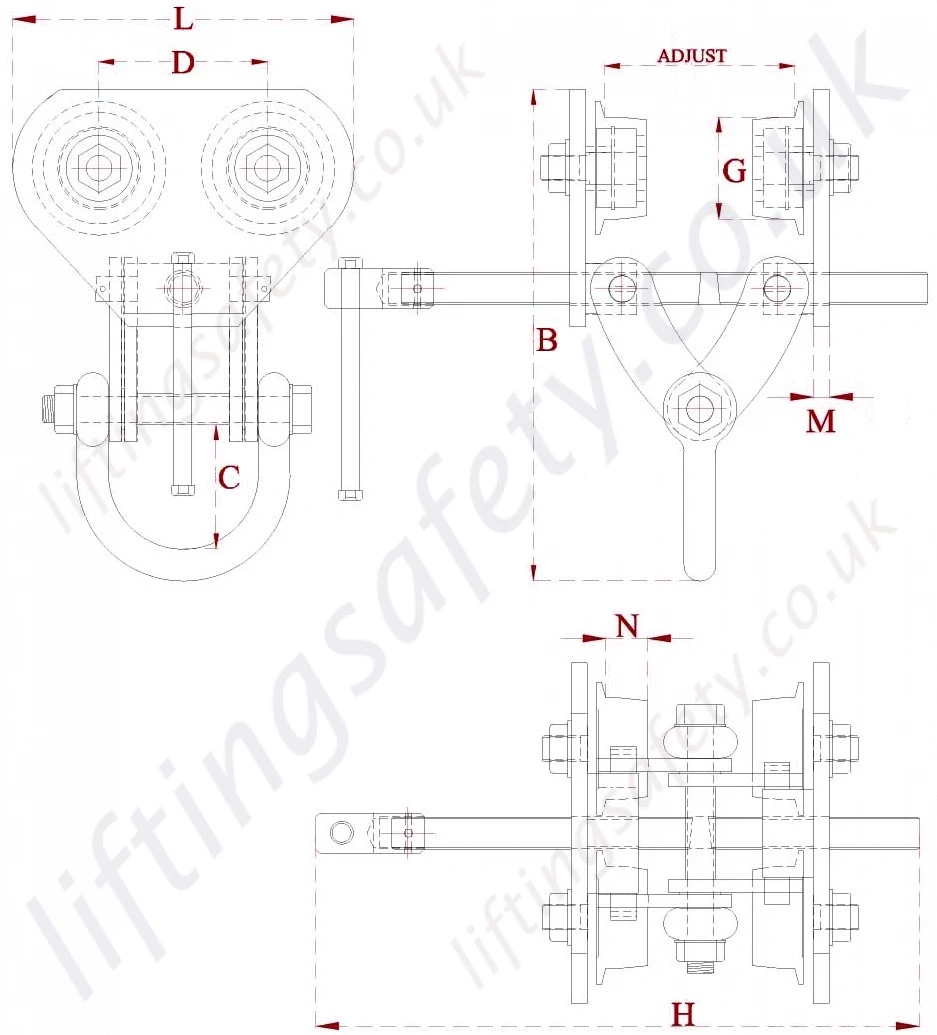

Dimensions & Specifications
| Part No: | Capacity (kg) | Adjust (mm) | Max flange Thickness | Dimensions (mm) | Weight (kg) | |||||||
| B | C | D | G | H |
L |
M | N | |||||
| 20996 | 3048 | 76 - 203 | 28mm | 395 | 112 | 133 | 82 | 480 | 269 | 12.5 | 33 | 23.5 |
| 20997 | 6096 | 105 - 305 | 32mm | 515 | 100 | 176 | 125 | 560 | 356 | 15 | 34 | 50.0 |
| 20998 | 10160 | 160 -305 | 38mm | 570 | 130 | 200 | 145 | 785 | 430 | 15 | 41 | 74.5 |
These adjustable beam trolleys are of acknowledged and experienced design. The unique quality features of this new range of manual traveling gear are the wheel guarding anti-drop plates, which are incorporated into the practical design of these transferable and mobile securing attachments. To compliment this range, reference is made to SUPERCLAMP geared runway beam trolleys which allow additional ease of load conveyance.
The left and right hand threaded adjusting bar only requires turning so as to ensure appropriate adaptation to a beam width, and the trolley is ready for use.
No additional tools or width adjusting components are required.
Fitted with a width adjustment locking mechanism and wheel guarding anti-drop plates, this range of products could well be one of the great innovations to secure safety and health in the home workshop and at work.
Dimensions & Specifications
| Part No: | Capacity (kg) | Adjust (mm) | Max flange Thickness | Dimensions (mm) | Weight (kg) | |||||||
| B | C | D | G | H |
L |
M | N | |||||
| 20996 | 3048 | 76 - 203 | 28mm | 395 | 112 | 133 | 82 | 480 | 269 | 12.5 | 33 | 23.5 |
| 20997 | 6096 | 105 - 305 | 32mm | 515 | 100 | 176 | 125 | 560 | 356 | 15 | 34 | 50.0 |
| 20998 | 10160 | 160 -305 | 38mm | 570 | 130 | 200 | 145 | 785 | 430 | 15 | 41 | 74.5 |
