Tiger "BCU" Universal Beam Clamp - 3000kg to 10,000kg
Model:
BCU / TBBC-4785

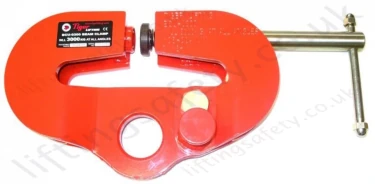

Tiger universal clamp with suspension eye suitable for vertical and side load applications.
The Tiger Universal Beam Clamp Model N° BCU has been designed not only for vertical use, but also for side load applications, where conventional clamps are not suitable, it can be loaded at any angle and eliminates the use of spreader beams in various lifting operations.
This clamp is highly flexible in application and can be used for lifting, pulling or as a semi-permanent anchor point.
Warning: Do not exceed working load limits or use this equipment for lifting flat plate sections.
Product Features
- Quick and versatile rigging point for hoisting equipment.
- Suitable for pulling and lifting at angles across the beam.
- Designed for both vertical and side loading applications - can be loaded at any angle.
- Full rated capacity at any lifting angle. e.g. no loss of WLL (working load limit) at 90° loading.
- Low headroom design.
- Operating temperature of -50°C to +50°C.
- Highly flexible – for lifting, pulling or as a semi-permanent anchor point.
- Designed to accommodate a wide range of beam widths.
- 4:1 factor of safety.
- Multidirectional adjusting screw spindle ensures a high clamping force to beam web.
- Complies with ASME B30.20 and EN13155 : 2003+A2 : 2009.
- Certification: Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.
Operation

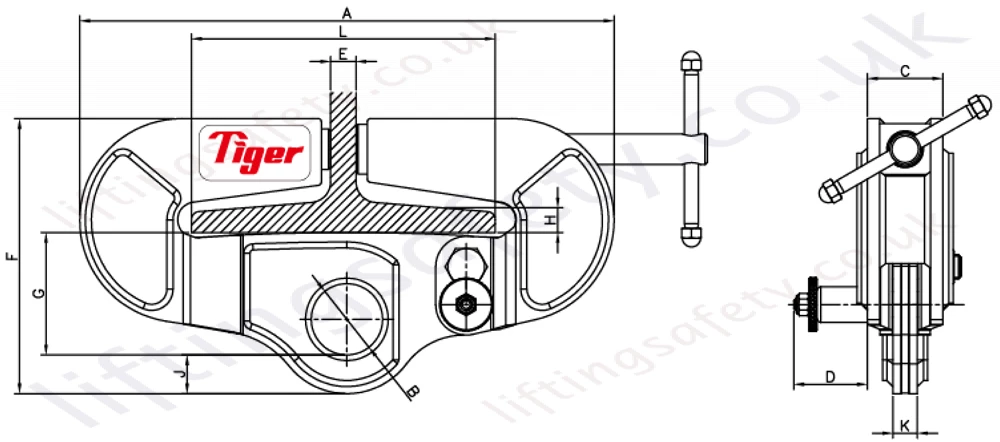

Dimensions
| Capacity (t) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | J (mm) | K (mm) | L (mm) | Weight (kg) |
| 3.0 | 387 | 60 | 70 | 63 | 32 | 235 | 100 | 25.4 | 28 | 20 | 125-204 | 15.5 |
| 5.0 | 524 | 70 | 74 | 72 | 32 | 270 | 120 | 25.4 | 38 | 24 | 125-305 | 27 |
| 10.0 | 524 | 70 | 75 | 82 | 32 | 278 | 120 | 25 | 38 | 25 | 125-305 | 31 |
