Hadef 14/25 VA Stainless Steel Hand Chain Block

Hadef 14/25 VA Stainless Steel Hand Chain Block

Stainless steel manual spur gear chain hoist suitable for cleanroom environments. Lifting capacity options from 250kg up to 5 tonnes.

Model:

14/25 VA / SSHC-5585

Hadef 14/25 VA Stainless Steel Hand Chain Block

Hadef 14/25 VA Stainless Steel Spur Gear Hoist
More from:
Hadef

Hoist Features

  • Ensuring maximum protection against corrosion
  • Good protection against a humid environment
  • Suitable for a cleanroom environment
  • Body, hooks and bottom block made of stainless steel
  • Inner gear parts are made from high-quality material
  • Stainless steel load and hand chain
  • Hoist protection by slipping clutch

Specifications

Capacity (kg) / Chain Falls Load Chain (mm) Lift per 30 metres of hand chain pulled (mm) Hand chain pull force (daN) Weight at 3m Lifting Height (kg) Weight per additional metre (kg)
250 / 1 4 x 12 1920 20 4.5 0.4
500 / 1 7.1 x 21 750 20 12.0 2.0
1000 / 1 7.1 x 21 750 30 12.8 2.0
2000 / 2 7.1 x 21 375 31 19.2 3.1
3000 / 2 9 x 27 195 32 29.8 4.1
5000 / 3 9 x 27 129 38 43.5 5.5

Dimensional Information

Capacity (kg) / Chain Falls A (mm) B (mm) M (mm) M1 (mm) H (mm)
250 / 1 105 109 27 32 250
500 / 1 152 160 27 41 350
1000 / 1 152 160 29 50 370
2000 / 2 152 185 38 51 475
3000 / 2 167 230 41 57 565
5000 / 3 167 350 60 67 760

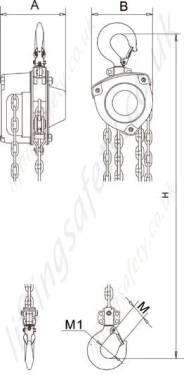

250-1000kg Dimensions
250kg to 1 tonne

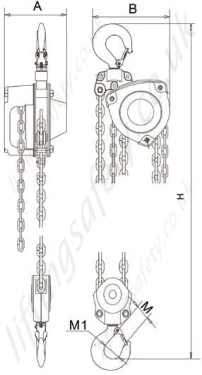

2000-3000kg Dimensions
2 to 3 tonnes

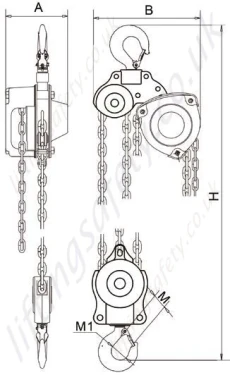

5000kg Dimensions
5 tonne

Pricing

(min:3) (3 included in price)
Unit Price Request Quote
Description

Hoist Features

  • Ensuring maximum protection against corrosion
  • Good protection against a humid environment
  • Suitable for a cleanroom environment
  • Body, hooks and bottom block made of stainless steel
  • Inner gear parts are made from high-quality material
  • Stainless steel load and hand chain
  • Hoist protection by slipping clutch

Specifications

Capacity (kg) / Chain Falls Load Chain (mm) Lift per 30 metres of hand chain pulled (mm) Hand chain pull force (daN) Weight at 3m Lifting Height (kg) Weight per additional metre (kg)
250 / 1 4 x 12 1920 20 4.5 0.4
500 / 1 7.1 x 21 750 20 12.0 2.0
1000 / 1 7.1 x 21 750 30 12.8 2.0
2000 / 2 7.1 x 21 375 31 19.2 3.1
3000 / 2 9 x 27 195 32 29.8 4.1
5000 / 3 9 x 27 129 38 43.5 5.5

Dimensional Information

Capacity (kg) / Chain Falls A (mm) B (mm) M (mm) M1 (mm) H (mm)
250 / 1 105 109 27 32 250
500 / 1 152 160 27 41 350
1000 / 1 152 160 29 50 370
2000 / 2 152 185 38 51 475
3000 / 2 167 230 41 57 565
5000 / 3 167 350 60 67 760
250-1000kg Dimensions
250kg to 1 tonne
2000-3000kg Dimensions
2 to 3 tonnes
5000kg Dimensions
5 tonne
Downloads

14-25-VA-HADEF-Data-Sheet-Stainless-Steel-Spur-Gear-Hoist.pdf

Hadef 14/25 VA Hoist Datasheet

(approx. 0.3Mb)
