RUD "INOX-STAR" Stainless Steel Swivel Eye Bolt, Metric Thread, WLL Range from 0.5 tonne to 2.5 tonne

RUD "INOX-STAR" Stainless Steel Swivel Eye Bolt, Metric Thread, WLL Range from 0.5 tonne to 2.5 tonne

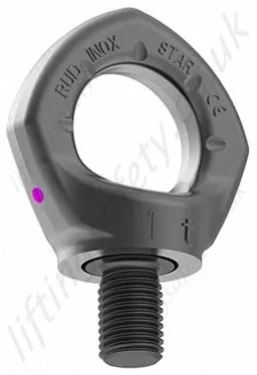

Rud INOX-STAR Stainless Steel Eyebolt.

Model:

INOX-STAR / SSEB-2840

RUD "INOX-STAR" Stainless Steel Swivel Eye Bolt, Metric Thread, WLL Range from 0.5 tonne to 2.5 tonne

  • Quick and easy installation.
  • Thread range: M12 to M24.
  • Capacity range: 500kg to 2500kg.
  • 4:1 Safety factor.
  • RUD-ID-System®.
  • Full working load in all directions.
  • Range of rotation 360°.
  • Maximum operation temperature range WITHOUT reduction of WLL -40°–280°C.
  • Maximum operation temperature WITH reduction of WLL 280°C max.
  • Material: duplex steel 1.4462.
  • Component according to the test criteria of BG/DGUV “GS-OA-15-04”.

Clear marking of the minimum WLL for all loading directions. Higher WLL possible when location and installation is optimised (compare WLL chart / product information).

Body and bolt made out of Duplex Steel 1.4462 (high resistance in sea water and in environment with a high concentration of chlorine ions.

Non removable special bolt (this reduces the risk of non standard bolts). Clear marking at the bolt head: RUD, thread size, batch-no., class of strength.

Variable thread lengths are available for usage at thread holes and at through hole fixtures.

Dimensions & Specifications

Type WLL
(t)
Weight
(kg)
Dimensions (mm) Torque
(Nm)
Ref
T B C D E G I K L M N
INOX-STAR M12 0.5 0.19 43 14 12 30 30 32 20 56 18 M12 25 25 7993835
INOX-STAR M16 1 0.31 50 16 14 35 36 38 23.5 65 24 M16 10 60 7993836
INOX-STAR M20 2 0.53 57 19 16 40 42 47 29 74 30 M20 12 115 7993837
INOX-STAR M24 2.5 0.92 69 24 19 48 50 56 35 92 36 M24 14 190 7993838

INOX-STAR M12 L=50 0.5 0.22 43 14 12 30 30 32 20 56 50 M12 8 25 7997822
INOX-STAR M20 L=60 2 0.6 57 19 16 40 42 47 29 74 60 M20 12 115 7998714
Subject to technical modifications
Inox Star Dimensions

Loadings Table

Method of Lift Loading 1 Loading 2 Loading 3 Loading 4 Loading 5  Loading 6 Loading 7 Loading 8
Number of strands 1 1 2 2 2 2 2 3 / 4 3 / 4 3 / 4
Inclination angle
90° 0 ° 90° 0-45° >45-60° Un- symm. 0-45° >45-60° Un- symm.
Factor   1   2 1.4 1 1 2.1 1.5 1
 INOX-STAR- for max. load weight t in Tons, tightened and adjusted to the load direction
Type metric F2 F1
INOX-STAR M12 1.2 t 0.5 t 2.4 t 1.0 t 0.71 t 0.5 t 0.5 t 1.06 t 0.75 t 0.5 t
INOX-STAR M16 2.4 t 1.0 t 4.8 t 2.0 t 1.4 t 1.0 t 1.0 t 2.1 t 1.50 t 1.0 t
INOX-STAR M20 3.6 t 2.0 t 7.2 t 4.0 t 2.8 t 2.0 t 2.0 t 4.25 t 3.0 t 2.0 t
INOX-STAR M24 5.2 t 2.5 t 10.4 t 5.0 t 3.5 t 2.5 t 2.5 t 5.25 t 3.75 t 2.5 t
INOX-STAR-additional information.pdf

Additional Information Inox Star

(approx. 0.5Mb)

Pricing

Guide Price

£72.89

  • Quick and easy installation.
  • Thread range: M12 to M24.
  • Capacity range: 500kg to 2500kg.
  • 4:1 Safety factor.
  • RUD-ID-System®.
  • Full working load in all directions.
  • Range of rotation 360°.
  • Maximum operation temperature range WITHOUT reduction of WLL -40°–280°C.
  • Maximum operation temperature WITH reduction of WLL 280°C max.
  • Material: duplex steel 1.4462.
  • Component according to the test criteria of BG/DGUV “GS-OA-15-04”.

Clear marking of the minimum WLL for all loading directions. Higher WLL possible when location and installation is optimised (compare WLL chart / product information).

Body and bolt made out of Duplex Steel 1.4462 (high resistance in sea water and in environment with a high concentration of chlorine ions.

Non removable special bolt (this reduces the risk of non standard bolts). Clear marking at the bolt head: RUD, thread size, batch-no., class of strength.

Variable thread lengths are available for usage at thread holes and at through hole fixtures.

Dimensions & Specifications

Type WLL
(t)
Weight
(kg)
Dimensions (mm) Torque
(Nm)
Ref
T B C D E G I K L M N
INOX-STAR M12 0.5 0.19 43 14 12 30 30 32 20 56 18 M12 25 25 7993835
INOX-STAR M16 1 0.31 50 16 14 35 36 38 23.5 65 24 M16 10 60 7993836
INOX-STAR M20 2 0.53 57 19 16 40 42 47 29 74 30 M20 12 115 7993837
INOX-STAR M24 2.5 0.92 69 24 19 48 50 56 35 92 36 M24 14 190 7993838

INOX-STAR M12 L=50 0.5 0.22 43 14 12 30 30 32 20 56 50 M12 8 25 7997822
INOX-STAR M20 L=60 2 0.6 57 19 16 40 42 47 29 74 60 M20 12 115 7998714
Subject to technical modifications
Inox Star Dimensions

Loadings Table

Method of Lift Loading 1 Loading 2 Loading 3 Loading 4 Loading 5  Loading 6 Loading 7 Loading 8
Number of strands 1 1 2 2 2 2 2 3 / 4 3 / 4 3 / 4
Inclination angle
90° 0 ° 90° 0-45° >45-60° Un- symm. 0-45° >45-60° Un- symm.
Factor   1   2 1.4 1 1 2.1 1.5 1
 INOX-STAR- for max. load weight t in Tons, tightened and adjusted to the load direction
Type metric F2 F1
INOX-STAR M12 1.2 t 0.5 t 2.4 t 1.0 t 0.71 t 0.5 t 0.5 t 1.06 t 0.75 t 0.5 t
INOX-STAR M16 2.4 t 1.0 t 4.8 t 2.0 t 1.4 t 1.0 t 1.0 t 2.1 t 1.50 t 1.0 t
INOX-STAR M20 3.6 t 2.0 t 7.2 t 4.0 t 2.8 t 2.0 t 2.0 t 4.25 t 3.0 t 2.0 t
INOX-STAR M24 5.2 t 2.5 t 10.4 t 5.0 t 3.5 t 2.5 t 2.5 t 5.25 t 3.75 t 2.5 t
INOX-STAR-additional information.pdf

Additional Information Inox Star

(approx. 0.5Mb)
