William Hackett SS C4 QP Subsea Hand Chain Hoist - Range from 500kg to 50,000kg

Hacketts offshore/underwater manual chain hoist with quad pawls (QP) for finer adjustment and increased safety.

Model:

WH SS C4 QP / SCQS-5195


The William Hackett SS-C4 QP (Quad Pawl) Chain Hoist meets and exceeds the requirements of the following  international standards:

  • British Standard BS EN13157:2004 + AI:2009
  • American Standard ASME B30.16-2014
  • Australian Standard AS1418.2-1997
  • South African Standard SANS 1594:2007
  • NORSOK R-002: 2017.

The William Hackett SS-C4 QP chain hoist incorporates the four-pawl mechanical engagement functionality. The unique and patented pawl design enhances the capabilities of the hoist allowing all four pawls to engage with the ratchet gear in an offset configuration allowing finer adjustment and tensioning capability while maintaining pawl/ratchet engagement. This improves the hoist's:

  • Resilience to failure.
  • Capability to provide finer adjustment and tensioning operations.
    - SAFE JUST BECAME SAFER!

The design and specification of the William Hackett SS-C4 QP chain hoist includes

  • WORKING LOAD LIMIT RANGE: 500kg to 50 tonnes.
  • LIGHT LOAD CAPABILITY: tested and certified at 2% of the chain hoist rated capacity.
  • QUAD PAWL (QP): Endurance tested to twice the industry norm.
  • SAFETY FACTOR: 4:1
  • STAINLESS STEEL FIXINGS: used throughout the hoist
  • BRAKE COMPONENTS: corrosion protected.
  • SAFETY LATCHES: hooks are fitted with heavy duty cast steel latches. The latch and hook tip are integrated creating a strong and robust hook closure.
  • HOOK OVERLOAD AND TRACEABILITY MARKS: hooks have overload indicator marks either side of the hook throat (500kg to 10t). Both top and bottom hooks are embossed with a batch code, manufacturer's mark and the working load limit for full traceability and compliance to international standards.
  • HAND CHAIN JOINER: a unique hand chain joiner is used as a quick and secure method of joining the hand chain.
  • HOOK HOUSING: secured with socket head cap screws/hex head bolts and nyloc insert locking nuts to allow full inspection.
  • FLEETING/CROSS HAULING: independently tested (test report 2550-7615) for fleeting or cross hauling applications up to 45° from the vertical without deration of the WLL.
  • LOAD CHAIN:  corrosion protected Grade 8 load chain offered as standard, with the option of calibrated Grade S (6) 316L stainless steel load chain, hand chain and bottom hook (stainless steel bottom hooks are only available for 500kg and 1 tonne units).
  • TEMPERATURE RANGE: -40°C to +120°C.
  • MARINE PAINT:
    - AkzoNobel Interpon D1010 Premium
    - Corrosion Resistance 1,000 hours according to DIN EN ISO 9227.
  • PROOF TESTED: 500kg to 10 tonne hoists are proof tested to 1.5 times the Working Load Limit. 15 tonne to 50 tonne hoists are proof tested to 1.25 times the Working Load Limit.
  • OVERLOAD LIMITER: available as an option upon request.
  • MANUFACTURED AND PROOF TESTED in the U.K.

Dimensions and Specifications

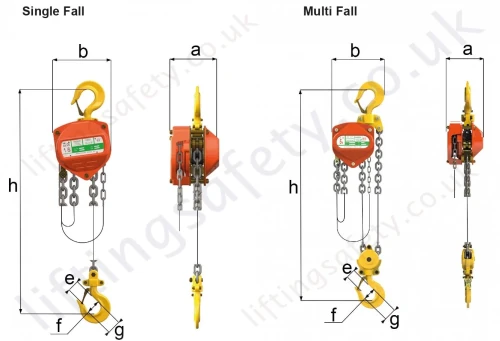

Dimensional Drawing
Part Code WLL
(tonnes)
No. of Falls Load Chain
Size (mm)
a
(mm)
b
(mm)
e
(mm)
f
(mm)
g
(mm)
h min
(mm)
Mass (kg)
3m HOL
Extra Weight
(per m) (kg)
025.SS.053 0.5 1 6.0 x 18 134 155 31.5 40 44 306 11.1 1.71
025.SS.103 1.0 1 6.0 x 18 134 155 31.5 40 44 306 11.1 1.71
025.SS.163 1.6 1 8.0 x 24 157 185 36.5 46 52 445 16.8 2.24
025.SS.203 2.0 1 8.0 x 24 157 185 36.5 46 52 445 16.8 2.24
025.SS.32D3 3.2 2 8.0 x 24 157 235 43.5 52 62 520 24.2 3.58
025.SS.503 5.0 2 10.0 x 30 180 262 51.0 60 77 600 38.4 5.24
025.SS.753 7.5 3 10.0 x 30 180 373 69.0 85 86 740 58.2 7.51
025.SS/1003 10.0 4 10.0 x 30 180 406 69.0 85 86 760 68.9 9.58
025.SS/1503 15.0 6 10.0 x 30 210 406 90.0 100 - 1000 116.7 13.92
025.SS/2003 20.0 8 10.0 x 30 225 550 80.0 110 - 1150 149.5 19.16
025.SS/3003 30.0 12 10.0 x 30 360 680 80.0 110 - 1250 230.0 27.84
025.SS/5003 50.0 20 10.0 x 30 585 832 133.0 170 - 1700 750.0 45.20

The William Hackett SS-C4 QP (Quad Pawl) Chain Hoist meets and exceeds the requirements of the following  international standards:

  • British Standard BS EN13157:2004 + AI:2009
  • American Standard ASME B30.16-2014
  • Australian Standard AS1418.2-1997
  • South African Standard SANS 1594:2007
  • NORSOK R-002: 2017.

The William Hackett SS-C4 QP chain hoist incorporates the four-pawl mechanical engagement functionality. The unique and patented pawl design enhances the capabilities of the hoist allowing all four pawls to engage with the ratchet gear in an offset configuration allowing finer adjustment and tensioning capability while maintaining pawl/ratchet engagement. This improves the hoist's:

  • Resilience to failure.
  • Capability to provide finer adjustment and tensioning operations.
    - SAFE JUST BECAME SAFER!

The design and specification of the William Hackett SS-C4 QP chain hoist includes

  • WORKING LOAD LIMIT RANGE: 500kg to 50 tonnes.
  • LIGHT LOAD CAPABILITY: tested and certified at 2% of the chain hoist rated capacity.
  • QUAD PAWL (QP): Endurance tested to twice the industry norm.
  • SAFETY FACTOR: 4:1
  • STAINLESS STEEL FIXINGS: used throughout the hoist
  • BRAKE COMPONENTS: corrosion protected.
  • SAFETY LATCHES: hooks are fitted with heavy duty cast steel latches. The latch and hook tip are integrated creating a strong and robust hook closure.
  • HOOK OVERLOAD AND TRACEABILITY MARKS: hooks have overload indicator marks either side of the hook throat (500kg to 10t). Both top and bottom hooks are embossed with a batch code, manufacturer's mark and the working load limit for full traceability and compliance to international standards.
  • HAND CHAIN JOINER: a unique hand chain joiner is used as a quick and secure method of joining the hand chain.
  • HOOK HOUSING: secured with socket head cap screws/hex head bolts and nyloc insert locking nuts to allow full inspection.
  • FLEETING/CROSS HAULING: independently tested (test report 2550-7615) for fleeting or cross hauling applications up to 45° from the vertical without deration of the WLL.
  • LOAD CHAIN:  corrosion protected Grade 8 load chain offered as standard, with the option of calibrated Grade S (6) 316L stainless steel load chain, hand chain and bottom hook (stainless steel bottom hooks are only available for 500kg and 1 tonne units).
  • TEMPERATURE RANGE: -40°C to +120°C.
  • MARINE PAINT:
    - AkzoNobel Interpon D1010 Premium
    - Corrosion Resistance 1,000 hours according to DIN EN ISO 9227.
  • PROOF TESTED: 500kg to 10 tonne hoists are proof tested to 1.5 times the Working Load Limit. 15 tonne to 50 tonne hoists are proof tested to 1.25 times the Working Load Limit.
  • OVERLOAD LIMITER: available as an option upon request.
  • MANUFACTURED AND PROOF TESTED in the U.K.

Dimensions and Specifications

Dimensional Drawing
Part Code WLL
(tonnes)
No. of Falls Load Chain
Size (mm)
a
(mm)
b
(mm)
e
(mm)
f
(mm)
g
(mm)
h min
(mm)
Mass (kg)
3m HOL
Extra Weight
(per m) (kg)
025.SS.053 0.5 1 6.0 x 18 134 155 31.5 40 44 306 11.1 1.71
025.SS.103 1.0 1 6.0 x 18 134 155 31.5 40 44 306 11.1 1.71
025.SS.163 1.6 1 8.0 x 24 157 185 36.5 46 52 445 16.8 2.24
025.SS.203 2.0 1 8.0 x 24 157 185 36.5 46 52 445 16.8 2.24
025.SS.32D3 3.2 2 8.0 x 24 157 235 43.5 52 62 520 24.2 3.58
025.SS.503 5.0 2 10.0 x 30 180 262 51.0 60 77 600 38.4 5.24
025.SS.753 7.5 3 10.0 x 30 180 373 69.0 85 86 740 58.2 7.51
025.SS/1003 10.0 4 10.0 x 30 180 406 69.0 85 86 760 68.9 9.58
025.SS/1503 15.0 6 10.0 x 30 210 406 90.0 100 - 1000 116.7 13.92
025.SS/2003 20.0 8 10.0 x 30 225 550 80.0 110 - 1150 149.5 19.16
025.SS/3003 30.0 12 10.0 x 30 360 680 80.0 110 - 1250 230.0 27.84
025.SS/5003 50.0 20 10.0 x 30 585 832 133.0 170 - 1700 750.0 45.20

Pricing

Capacity
Overload Limiter
Height of Lift (m)
@ £25.18 (min:3) (3 included in price)
Quantity
Unit Price

£263.24



Contact Us About This Product
