Socket Mounted Jib Crane / Davit Arm With Optional Hand Winch - 500kg or 1000kg

Socket Mounted Swing Jib Crane complete with socket. Top quality made in the UK

Model:

SMJ-1203


Socket mounted cranes are designed for situations where space is minimal and there is difficulty with access.

  • Ideal for machinery workshops, where many sockets can be used, and the same crane can be transported from one workstation to the other.
  • Full rotation through 360 degrees.
  • Heavy Duty Construction.
  • Sockets use heavy duty bearings for easy rotation.
  • Very high quality hydraulic system with chrome plating on the ram and pump.

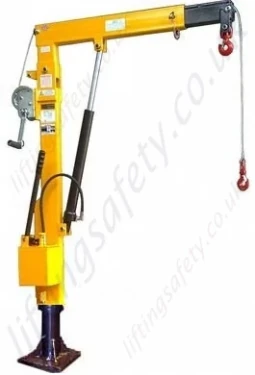

  • Yellow unit below shows twin hook hand winch version

Specification - 500KG Unit

Specification - 1000KG Unit

Capacity Position 1: 508kg Capacity Position 1: 1000kg
Capacity Position 2: 381kg Capacity Position 2: 750kg
Capacity Position 3: 254kg Capacity Position 3: 500kg
Min Height Hook to Ground (pos.1): 620mm Min Height Hook to Ground (pos.1): 620mm
Min Height Hook to Ground (pos.2): 430mm Min Height Hook to Ground (pos.2): 430mm
Min Height Hook to Ground (pos.3): 340mm Min Height Hook to Ground (pos.3): 340mm
Max Height hook to Ground (pos.1) : 2285mm Max Height hook to Ground (pos.1): 2285mm
Max Height hook to Ground (pos.2): 2410mm Max Height hook to Ground (pos.2): 2410mm
Max Height hook to Ground (pos.3): 2540mm Max Height hook to Ground (pos.3): 2540mm
Column Height (3): 1750mm Column Height (3): 1750mm
Overall Base Length : 260mm Overall Base Length : 260mm
Overall Base Width : 260mm Overall Base Width : 260mm
Height of socket : 160mm Height of socket : 160mm

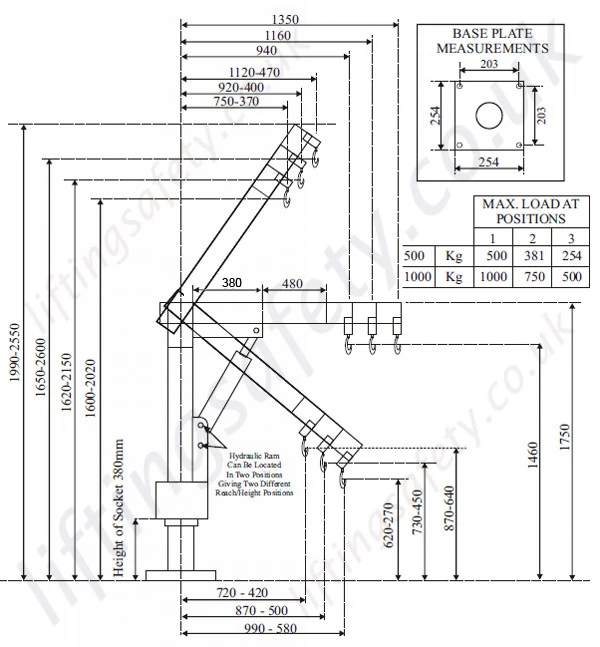

Dimensional drawing

Please Note: the 2 different dimensional values are for the 2 mounting points for the ram, NOT for the 2 different SWL's as the dimensions remain the same

Davit Cranes With Spark Resistant Features / Explosion proof.

SELS can include any anti-sparking features our customers specify on Davit lifting arms that we manufacture which are intended to be used in potentially explosive areas / atmospheres (Zone 1 & 2 etc...) – These features will the davit’s anti-sparking properties and therefore make the crane more suitable for use in such potentially explosive environments.

SELS will not to take the responsibility of supplying our Davit cranes described as 'spark proof' or ‘Explosion Proof’ as this is ‘too broad’ a term. We believe that total compliance is probably impossible because of the mechanical operation and movement of a davit crane; i.e. we cannot offer a 100% guarantee that no part of the assembly is capable of generating a spark capable of igniting a flame. We supply / manufacture our cranes with anti sparking features according to the requirements and specification of our customers and therefore we ask our customers to provide a detailed specification and not just ask for Sparkproof or explosion proof . Our cranes have been successfully supplied to customers in the offshore Oil and Gas industry in the UK on this basis.

socket-mounted-jib-SMJ1203.pdf

Complete Socket Mounted Jib Crane Specifications

(approx. 0.8Mb)

Socket mounted cranes are designed for situations where space is minimal and there is difficulty with access.

  • Ideal for machinery workshops, where many sockets can be used, and the same crane can be transported from one workstation to the other.
  • Full rotation through 360 degrees.
  • Heavy Duty Construction.
  • Sockets use heavy duty bearings for easy rotation.
  • Very high quality hydraulic system with chrome plating on the ram and pump.
  • Yellow unit below shows twin hook hand winch version

Specification - 500KG Unit

Specification - 1000KG Unit

Capacity Position 1: 508kg Capacity Position 1: 1000kg
Capacity Position 2: 381kg Capacity Position 2: 750kg
Capacity Position 3: 254kg Capacity Position 3: 500kg
Min Height Hook to Ground (pos.1): 620mm Min Height Hook to Ground (pos.1): 620mm
Min Height Hook to Ground (pos.2): 430mm Min Height Hook to Ground (pos.2): 430mm
Min Height Hook to Ground (pos.3): 340mm Min Height Hook to Ground (pos.3): 340mm
Max Height hook to Ground (pos.1) : 2285mm Max Height hook to Ground (pos.1): 2285mm
Max Height hook to Ground (pos.2): 2410mm Max Height hook to Ground (pos.2): 2410mm
Max Height hook to Ground (pos.3): 2540mm Max Height hook to Ground (pos.3): 2540mm
Column Height (3): 1750mm Column Height (3): 1750mm
Overall Base Length : 260mm Overall Base Length : 260mm
Overall Base Width : 260mm Overall Base Width : 260mm
Height of socket : 160mm Height of socket : 160mm

Dimensional drawing

Please Note: the 2 different dimensional values are for the 2 mounting points for the ram, NOT for the 2 different SWL's as the dimensions remain the same

Davit Cranes With Spark Resistant Features / Explosion proof.

SELS can include any anti-sparking features our customers specify on Davit lifting arms that we manufacture which are intended to be used in potentially explosive areas / atmospheres (Zone 1 & 2 etc...) – These features will the davit’s anti-sparking properties and therefore make the crane more suitable for use in such potentially explosive environments.

SELS will not to take the responsibility of supplying our Davit cranes described as 'spark proof' or ‘Explosion Proof’ as this is ‘too broad’ a term. We believe that total compliance is probably impossible because of the mechanical operation and movement of a davit crane; i.e. we cannot offer a 100% guarantee that no part of the assembly is capable of generating a spark capable of igniting a flame. We supply / manufacture our cranes with anti sparking features according to the requirements and specification of our customers and therefore we ask our customers to provide a detailed specification and not just ask for Sparkproof or explosion proof . Our cranes have been successfully supplied to customers in the offshore Oil and Gas industry in the UK on this basis.

socket-mounted-jib-SMJ1203.pdf

Complete Socket Mounted Jib Crane Specifications

(approx. 0.8Mb)

Pricing

Capacity
Number of sockets
(min:1) (1 included in price)
Quantity
Unit Price Quote Only

NOTE: This item has separate transport costs (£ 80.00)

Contact Us About This Product
