MANUAL OR POWERED - Heavy Duty Parallel Leg Workshop Floor Crane With Pivoting or Rigid Arm Styles. Many Options Inc 30 Degree Rotation - Range to 5000kg

Model:  FLFC-293

Heavy Duty Fixed Leg Floor Crane
Stainless Steel Heavy Duty Fixed Leg Floor Crane
Portable Floor Crane - Hand Pump
Fixed Leg Crane with Power Lift
Special Design Fixed Leg Floor Crane
Articulating Arm Fixed Leg Crane
Articulating Arms
Heavy Duty Fixed Leg Floor Crane Stainless Steel Heavy Duty Fixed Leg Floor Crane Portable Floor Crane - Hand Pump Electric Lift Version Special Design Fixed Leg Floor Crane Articulating Arm Fixed Leg Crane Articulating Arms
Crane Type.
Vertical Column / Mast Design.
Lift Options
Part N° Capacity (safe working load) Unit Price Quantity
293-T4146 1000kg Quote Required
293-T4147 1500kg Quote Required
293-T4148 2000kg Quote Required
293-T4149 2500kg Quote Required
293-T4150 3000kg Quote Required
293-T4151 4000kg Quote Required
293-T4152 5000kg Quote Required
Add to Quote Basket   ?

Heavy Duty Floor Cranes. Stainless steel and electric powered lift options. Top quality made here in the UK.

For dimensional information please see the 'Downloads' Tab above.

This is our extra heavy duty workshop floor crane, the design is more robust than our range of folding floor cranes and has a greater maximum capacity; 5000kg compared with 2000kg for the folding design.

The rigid leg design is very stable as there no hinges on the legs and can be supplied with many options to suit your working environment. Because of its heavy duty construction is particularly suited to extreme environments / work places where the application requires a robust crane with greater lifting capability and stability.

The Fixed parallel design is equally as portable as our folding design though it is less suitable if the crane is required to be move into other working areas or over longer distances though we do also offer a fully modular version "our modular knock down Crane".

The heavy duty rigid leg floor crane can be supplied with a removable vertical mast, horizontal lifting arm and hydraulics. This is referred to as our export version because it is more easily packed for export orders.

Note: The pictures shown are our artists impression only and are only indicative of our capability. (for display purposes only) All cranes are made individually and the the design may be subject to change according to your required specification; the pictures are not to scale, general arrangement drawings will be issued for approval on receipt of your order.

Optional Features and Specifications

We can also supply with many other standard and optional extras as per the list below.

  • Spark resistant features available on request.
  • Optional stainless steel design;
    suitable for offshore or food production / pharmaceutical.
  • Safe design, a proven concept
  • Directional locking Castor's
  • Overhead crane lifting points
  • Special painting for offshore use
  • Removable jib column
  • Electric powered lifting
  • Fully dismantleable version
  • Optional rotating jib
  • Extremely robust extra heavy duty construction.
  • Quality construction.
  • Optional electric lift
  • Bespoke designs available to customers specification
  • Top quality hydraulics throughout
  • Each crane has been individually tested to 25% overload as a complete unit.
  • Test certificate / letter of conformity supplied with each crane
  • Crane can be supplied with removable column on request for export packing and removable legs
  • Comes with a 12 month guarantee.

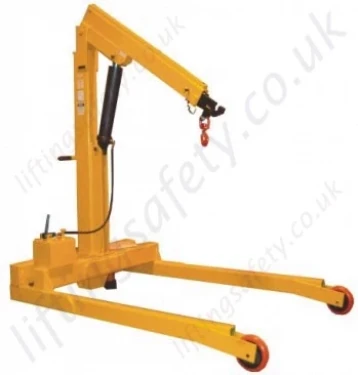

Fixed Leg - Heavy Duty Floor Crane

Showing Fixed Column

With Rotating Swing Jib Arm

Showing Rotating Column

Crane Versions

Standard Fixed Leg Floor Crane

Standard Version

Stainless Steel Fixed Leg Floor Crane

Stainless Steel Version

Powered Lift Fixed Leg Floor Crane

Power Lift Version (also in stainless)

Counter-weight version forward facing

Jib to Front with Weights

Counter-weight version rear acing

Jib to Rear with Weights

Counter-weight version - No weihts

Floor Crane with No Counter-weights

Counter-weight (counterbalance) Versions

If you would to know more about the counterbalance fixed leg floor crane or would like a quotation on this unit please click the link.

Floor Cranes With Spark Resistant Features / Explosion proof.

For Floor cranes to be used in potentially explosive areas / atmospheres such as Zone 1 or 2, SELS can include any anti-sparking features that our customers specify - this will increase its anti-sparking properties and therefore make the crane more suitable for use in a potentially explosive environment!

SELS will not to take the responsibility of supplying our floor cranes described as 'spark proof' as this is ‘too broad’ a term. We believe that total compliance is probably impossible because of the mechanical operation and movement of a floor crane; i.e. we cannot offer a 100% guarantee that no part of the assembly is capable of generating a spark which could ignite a flame!  IE: SELS will supply / manufacture cranes with anti sparking features to our customer’s requirements though will not certified them as sparkproof / explosion proof. Our cranes have been successfully supplied to customers in the offshore Oil and Gas industry in the UK on this basis.

Heavy duty non folding floor craneHeavy Duty Stainless Steel Fixed Column Floor Cranes

This is our Stainless Extra heavy Duty workshop floor crane, the design is almost identical to the standard floor cranes (made from mild steel) being equally robust and has many different sizes and safe working loads to choose from with SWL from 500kg to a maximum capacity of 3000kg (5000kg as a special).

Stainless steel construction is far more expensive though, is suitable for applications where a standard crane will prematurely fail or cause contamination; superior corrosion resistance, for offshore use, in chemical plants, the pharmaceutical and food production industries etc...
This rigid leg design (non folding) is very stable though still portable(for applications where the crane is needed in multiple locations)

We also make this stainless steel heavy duty floor Crane in a modular knock down version.

Crane Features

  • UK Manufactured
  • Stainless Steel Fixed Floor Crane.
  • Spark resistant features available on request.
  • Stainless steel design, suitable for offshore or food production / pharmaceuticals.
  • Sturdy, Safe design.
  • Extremely robust extra heavy duty build.
  • Top quality construction.
  • Optional electric power lift.
  • Bespoke designs available to customers specification.
  • Top of the range hydraulics throughout.
  • Tested to 25% overload.
  • Fully certified
  • optional removable column and legs suitable for export.
  • Twelve month guarantee.

If you are unsure about the best specification to suit your needs then please phone our sales team on 01977 684600


Technical Dimensions

Full Technical information and dimensional specifications for the FLFC Fixed Leg Workshop/Floor Cranes.
(approx. 1.0Mb)

Safety Instructions

General safety instructions for the safe use of floor cranes.
(approx. 0.1Mb)

5000kg Crane Dimensions

Full dimensional specifications for FLFC5000
(approx. 1.4Mb)
flfc-293 crane spec.pdf

Weights and Dimensions

(approx. 0.1Mb)
