Pfaff SCH-W Sluice Gate Jack - Range from 1500kg to 10,000kg

Pfaff SCH-W Sluice Gate Jack - Range from 1500kg to 10,000kg

Sluice gate jack.

Model:

SCH-W / PS-3193

Pfaff SCH-W Sluice Gate Jack - Range from 1500kg to 10,000kg

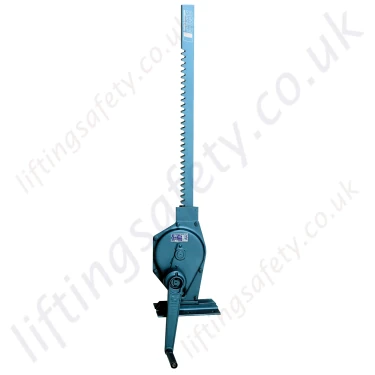

Pfaff Sluice Gate Jacks main-prod-image Pfaff Sluice Gate Jacks Main
More from:
Pfaff Silberblau

A reliable and precision-built sluice gate jack widely used for vehicle and machinery construction. Sluice gate systems are used primarily in water power, agriculture and plant engineering.

Features

  • Spring loaded safety crank provides pressure when required.
  • 10000kg model supplied with a SIKU crank, others supplied with a SIFEKU crank.
  • Slide lacquer treated racks.
  • Spur gear with formed gearwheels.
  • Precisely milled crank gear.

Options

  • Extended rack lengths
  • Galvanised finish.

Due to the extensive range of options that are available on these sluice gate jacks it is impossible to show all available models and variants. The list shown below is just to show you a sample of what is available. Please call the our sales team with your enquiry and we will talk you through the options and match a sluice gate jack with your specific application requirements.

Dimensions & Specifications

Type   40051714 40051717 40051720 40051722
Crank type   Sifeku Sifeku Sifeku Siku
Lifting capacity kg 1500 3000 5000 10000
Pressure force* kg 300 600 3000 6000
Rack length mm 1200 1250 1350 1550
Lift mm 800 800 900 1000
Weight kg 18 25 32 56
A mm 35 45 50 60
B mm 25 30 40 50
C mm 140 160 145 165
D mm 85 60 45 65
E mm 125 204 189 235
F mm 78 92 100 112
G mm 175 230 260 320
H mm 310 395 400 480
I mm 33.5 39.5 51 59
J mm 43.3 53.1 69.5 88.3
K mm 121 138 81 84
L mm 230 230 230 290
M mm 90 90 90 115
N mm 153 158 173 183
O mm 52.5 55 61 66
P mm 52.5 55 64 70
QØ mm 14 14 14 14
R mm 7 7 7 8
S mm 76.5 85.5 88 100
T mm 100.5 108.5 120 140
U mm 113 121 132 185
V mm 86 94 105 –
W mm 136 144 155 –
X mm 130 130 130 250
Y mm 250 250 250 300
*Load case II according to Euler – the pressure force will be reduced with higher lift.
Pfaff Sluice Gate Jacks Dimensions
Part N° Lifting capacity (kg) Crank type Pressure force (kg) Rack Length (mm) Lift (mm) Unit Price (Ex. VAT) Quantity
3193-T20457
40051714 		1500 Sifeku 300 1200 800 £976.48
3193-T20458
40051717 		3000 Sifeku 600 1250 800 £1,297.44
3193-T20459
40051720 		5000 Sifeku 3000 1350 900 £1,362.99
3193-T20460
40051722 		10000 Siku 6000 1550 1000 £1,795.92
Availability Usually 1-2 Working Days - 1pm cut-off
Add to Shopping Basket
Please Note: Buy online is only available to UK mainland customers and addresses.
Description

A reliable and precision-built sluice gate jack widely used for vehicle and machinery construction. Sluice gate systems are used primarily in water power, agriculture and plant engineering.

Features

  • Spring loaded safety crank provides pressure when required.
  • 10000kg model supplied with a SIKU crank, others supplied with a SIFEKU crank.
  • Slide lacquer treated racks.
  • Spur gear with formed gearwheels.
  • Precisely milled crank gear.

Options

  • Extended rack lengths
  • Galvanised finish.

Due to the extensive range of options that are available on these sluice gate jacks it is impossible to show all available models and variants. The list shown below is just to show you a sample of what is available. Please call the our sales team with your enquiry and we will talk you through the options and match a sluice gate jack with your specific application requirements.

Dimensions & Specifications

Type   40051714 40051717 40051720 40051722
Crank type   Sifeku Sifeku Sifeku Siku
Lifting capacity kg 1500 3000 5000 10000
Pressure force* kg 300 600 3000 6000
Rack length mm 1200 1250 1350 1550
Lift mm 800 800 900 1000
Weight kg 18 25 32 56
A mm 35 45 50 60
B mm 25 30 40 50
C mm 140 160 145 165
D mm 85 60 45 65
E mm 125 204 189 235
F mm 78 92 100 112
G mm 175 230 260 320
H mm 310 395 400 480
I mm 33.5 39.5 51 59
J mm 43.3 53.1 69.5 88.3
K mm 121 138 81 84
L mm 230 230 230 290
M mm 90 90 90 115
N mm 153 158 173 183
O mm 52.5 55 61 66
P mm 52.5 55 64 70
QØ mm 14 14 14 14
R mm 7 7 7 8
S mm 76.5 85.5 88 100
T mm 100.5 108.5 120 140
U mm 113 121 132 185
V mm 86 94 105 –
W mm 136 144 155 –
X mm 130 130 130 250
Y mm 250 250 250 300
*Load case II according to Euler – the pressure force will be reduced with higher lift.
Pfaff Sluice Gate Jacks Dimensions
Downloads

sluice_gate_jack_op.pdf

Pfaff Silberblau Sluice-gate

Operating, safety and service instructions.

(approx. 0.4Mb)
Pricing (Buy/Quote)
