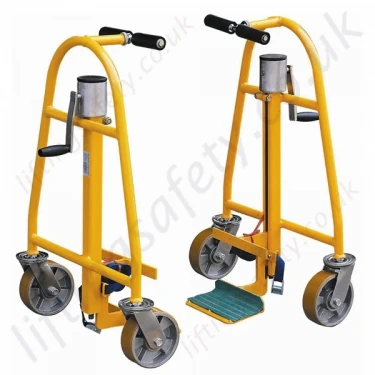

Manual Load Mover, Jack and Skate combination. - Load Capacity 600kg (Per Pair)

Manual Load Movers.

Model:

MLM-677


  • Safely operated by one person.
  • Robust lifting mechanism for handling bulky and heavy-weight items.
  • Ideal for removal, maintenance, installation applications.
  • Each set includes 2 transport units with built-in securing straps, length 5 metres.
  • Safety spindle winch with safety auto stop system to prevent uncontrolled lowering.

Operation

  • Position lifting plates underneath item to be moved.
  • Adjust upper support rail and tighten securing straps.
  • Lift item from both sides to equal height and move.

Technical specification

  • Powder coated finish. Lifting plates with non-slip covering.
  • Upper and lower support rails with protective covering.
  • Winch with crank handle and gear mechanism.
  • 4 swivel castors with roller bearings.
  • Non-marking poly wheels suitable for carpeted flooring.
  • Sold in Pairs
  • Multi - Directional
Capacity Lifting Height Lifting Plate W x D Polyurethane Wheel Overall Size (LxWxH) Net Weight
600kg 300mm 225mm x 120mm Ø125mm 570x390x780mm 25kg
  • Safely operated by one person.
  • Robust lifting mechanism for handling bulky and heavy-weight items.
  • Ideal for removal, maintenance, installation applications.
  • Each set includes 2 transport units with built-in securing straps, length 5 metres.
  • Safety spindle winch with safety auto stop system to prevent uncontrolled lowering.

Operation

  • Position lifting plates underneath item to be moved.
  • Adjust upper support rail and tighten securing straps.
  • Lift item from both sides to equal height and move.

Technical specification

  • Powder coated finish. Lifting plates with non-slip covering.
  • Upper and lower support rails with protective covering.
  • Winch with crank handle and gear mechanism.
  • 4 swivel castors with roller bearings.
  • Non-marking poly wheels suitable for carpeted flooring.
  • Sold in Pairs
  • Multi - Directional
Capacity Lifting Height Lifting Plate W x D Polyurethane Wheel Overall Size (LxWxH) Net Weight
600kg 300mm 225mm x 120mm Ø125mm 570x390x780mm 25kg
