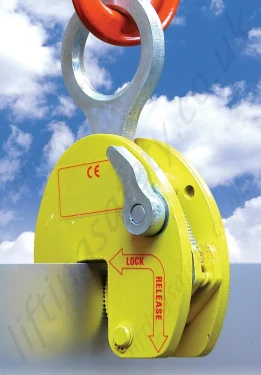

Riley Superclamp "PLC" Horizontal to Vertical Plate Lifting Clamp - Range from 1000kg to 4000kg
Built with an additional locking mechanism providing an additional safety feature for the operator.
Model:
Riley Superclamps PLC / HTVP-3349
Horizontal to Vertical Plate Lifting Clamp has been developed to provide the user with a safe to use and easy to handle plate lifting tool.
The locking mechanism provides an additional safety feature for the operator.

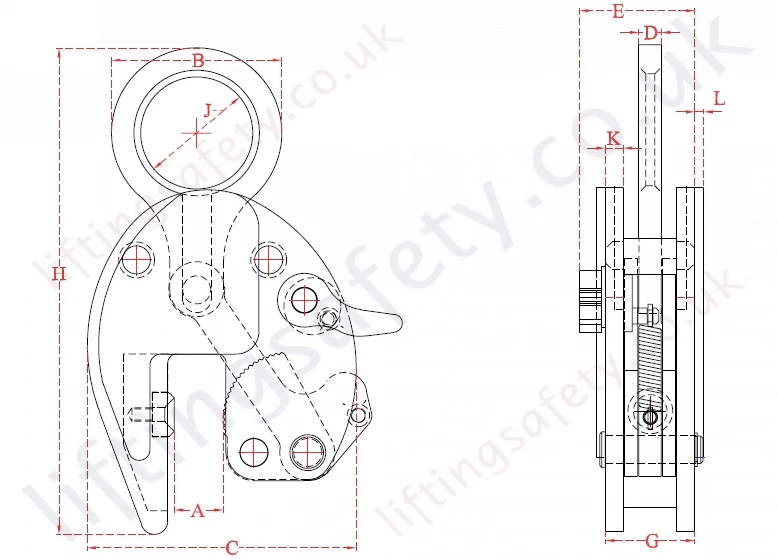

Dimensions & Specifications
| Part No. | Capacity (kg) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | G (mm) | H (mm) | J (mm) | K (mm) | L (mm) | Weight (kg) |
| 20929 | 1016 | 20 | 76 | 120 | 10 | 52 | 40 | 217 | 50 | 8 | - | 3.0 |
| 20930 | 2032 | 32 | 105 | 173 | 15 | 60 | 48 | 316 | 70 | 10 | - | 6.5 |
| 20931 | 3048 | 32 | 122 | 180 | 20 | 74 | 57 | 330 | 76 | 10 | 6 | 9.0 |
| 20932 | 4064 | 32 | 140 | 188 | 25 | 87 | 67 | 370 | 80 | 10 | 8 | 12.5 |
Horizontal to Vertical Plate Lifting Clamp has been developed to provide the user with a safe to use and easy to handle plate lifting tool.
The locking mechanism provides an additional safety feature for the operator.
Dimensions & Specifications
| Part No. | Capacity (kg) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | G (mm) | H (mm) | J (mm) | K (mm) | L (mm) | Weight (kg) |
| 20929 | 1016 | 20 | 76 | 120 | 10 | 52 | 40 | 217 | 50 | 8 | - | 3.0 |
| 20930 | 2032 | 32 | 105 | 173 | 15 | 60 | 48 | 316 | 70 | 10 | - | 6.5 |
| 20931 | 3048 | 32 | 122 | 180 | 20 | 74 | 57 | 330 | 76 | 10 | 6 | 9.0 |
| 20932 | 4064 | 32 | 140 | 188 | 25 | 87 | 67 | 370 | 80 | 10 | 8 | 12.5 |
