- Hadef 42/87-E Electric Wire Rope Pulling Winch Range from 500kg to 10,000kg

Hadef 42/87-E Electric Wire Rope Pulling Winch Range from 500kg to 10,000kg
Up to 350m wirerope storage capacity 42/87 E - 3-phase current (400 V, 50 Hz)
Model:
42/87 E / HEWR-4340



- Duty classification 1 Am/M4
- Lifetime-lubricated ball bearings
- Manufactured in Germany
- Enclosure IP 54
- Insulation class F
- Stable reinforced design
- Low voltage control included
Standard Configuration
- Ungrooved rope drum without separation
- Without limit switch
- Low voltage control installed for external control switch
- Connection provided for external limit switch
- Threephase current 400 Volt/50Hz, IP 54 Enclosure
- Insulation class F, operation S3-40% duty cycle 120 c/h, S2-30min.
- low voltage control, 42V control voltage
- Rope winding direction A
Options Available
- Other operating voltage
- Other rope speeds
- Rope drum extension
- Grooved rope drum for exact rope pay out in 1st rope layer
- Grooves: 1-groove, 2-grooves, parallel or counterwound
- Rope winding direction „B“
- Additional flanged wheels on the drum for two or more rope exits
- Limit switch to stop the rope in highest and lowest load position
- Slack rope switch (available up to 12 mm rope Ø)
- Two rope speeds achieved by pole changing motor
- Disengaging clutch to dismantle the uncharged rope
- Overload protection up to 1000 daN
Rope Winding Direction
![]() |
|
A) Max. Rope Exit Angle | B) Max Side Deviation Angle 4° to Drum Axle. |
Optional Control Components
- Limit switch with roller lever
- Wall-mounted control switch
- Lockable wall-mounted control switch
- Pendant control switch
- Lockable pendant control switch
- Protective motor switch
- Radio (remote) control
Technical Specifications
Pulling Rope Force (1st Layer) (daN) | Model | 1st Layer | Rope | Top Layer | Motor Output (kW) | Current (A) | Weight (without rope) (kg) | |||||
Rope Speed (m/min) | Wirerope Storage (m) | Ø (mm) | Min Breaking Load (kN) | Pulling Rope Force (daN) | Rope Speed (m/min) | Wirerope Storage (m) | # of Rope Layers | |||||
500 | 1506 | 8 | 28 | 6 | 20 | 330 | 11 | 178 | 5 | 0.75 | 1.8 | 75 |
500 | 1516 | 16/4 | 28 | 6 | 20 | 330 | 24/6 | 178 | 5 | 1.5/0.37 | 3.7/1.8 | 90 |
990 | 2306 | 8 | 30 | 9 | 40 | 710 | 11 | 147 | 4 | 1.5 | 3.7 | 160 |
990 | 2316 | 16/4 | 30 | 9 | 40 | 710 | 24/6 | 147 | 4 | 3.0/0.75 | 6.5/2.8 | 180 |
1000 | 2406 | 8 | 30 | 9 | 40 | 720 | 11 | 147 | 4 | 1.5 | 3.7 | 160 |
1000 | 2416 | 16/4 | 30 | 9 | 40 | 720 | 24/6 | 147 | 4 | 3.0/0.75 | 6.5/2.8 | 180 |
2000 | 3406 | 8 | 35 | 12 | 80 | 1320 | 10 | 222 | 5 | 3.0 | 6.9 | 260 |
2000 | 3416 | 16/4 | 35 | 12 | 80 | 1320 | 20/5 | 222 | 5 | 5.5/1.5 | 12.6/5.1 | 300 |
3200 | 4108 | 8/2 | 35 | 16 | 128 | 2120 | 12/3 | 229 | 5 | 5.5/1.5 | 12.6/5.1 | 440 |
5000 | 5108 | 6/1.5 | 39 | 20 | 200 | 3320 | 8/2 | 258 | 5 | 5.5/1.5 | 12.6/5.1 | 600 |
7500 | 6105 | 6/1.5 | 54 | 24 | 300 | 4980 | 8/2 | 352 | 5 | 9.0/2.2 | 22/8 | 1000 |
10000 | 7104 | 4/1 | 57 | 28 | 400 | 7250 | 6/1.5 | 284 | 4 | 9.0/2.2 | 22/8 | 1320 |
![]() |
![]() |

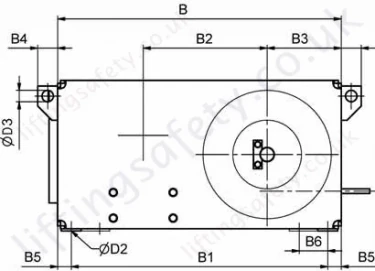

||||||||||||||||||||
Front | Side | ||||||||||||||||||||
Pulling Rope Force (daN) | Model | Dimensions in mm | |||||||||||||||||||
A | A1 | A2 | A3 | A4 | A5 | A6 | A7 | B | B1 | B2 | B3 | B4 | B5 | C | C1 | D | D1 | D2 | D3 | ||
500 | 1506 1516 |
700 | 650 | 589 | 150 | 66 | 25 | 40 | 61 | 470 | 400 | 233 | 120 | - | 35 | 276 | 141 | 89 | 167 | 11 | - |
990 | 2306 2316 |
800 | 720 | 618 | 180 | 66 | 40 | 70 | 99 | 660 | 580 | 322 | 180 | 50 | 40 | 356 | 181 | 140 | 245 | 17 | 25 |
1000 | 2406 2416 |
800 | 720 | 618 | 180 | 66 | 40 | 70 | 99 | 660 | 580 | 322 | 180 | 50 | 40 | 356 | 181 | 140 | 245 | 17 | 25 |
2000 | 3406 3416 |
830 | 750 | 640 | 180 | 95 | 40 | 70 | 107 | 805 | 725 | 385 | 245 | 50 | 40 | 446 | 226 | 216 | 375 | 17 | 25 |
3200 | 4108 |
990 | 900 | 750 | 20 | 95 | 45 | 90 | 137 | 995 | 900 | 435 | 260 | 70 | 47.5 | 528 | 268 | 241 | 450 | 24 | 40 |
5000 | 5106 | 1100 | 1000 | 850 | 20 | 95 | 50 | 90 | 145 | 1115 | 1000 | 544 | 285 | 70 | 57.5 | 593 | 300 | 298 | 560 | 30 | 40 |
7500 | 6105 | 1416 | 1300 | 1130 | 25 | 130 | 58 | 102 | 167 | 1415 | 1300 | 643 | 410 | 70 | 57.5 | 745 | 378 | 368 | 685 | 26 | 40 |
10000 | 7104 | 1540 | 1410 | 1225 | 25 | 130 | 65 | 115 | 184 | 1540 | 1430 | 710 | 457 | 70 | 55 | 810 | 410 | 419 | 750 | 30 | 40 |
![]() |
|||||||||||||||||||||
