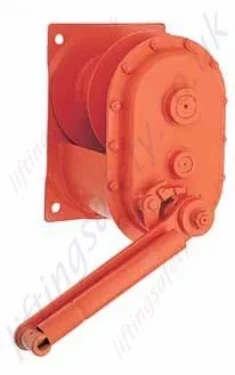

Hadef 260/76 Spur Gear Manual Wirerope Winch, Range 300kg to 3,000kg
Automatic Load Pressure Brake
Model:
260/76 / HSGM-4371


260/76 / HSGM-4371
Pulling Rope Force (daN/kg) | Wire Rope (mm) | Wirerope Storage (m) | Crank Effort (N) | Rope Length per Crank Turn (mm) | Weight (without rope) (kg) | |||
1st Layer | Top Layer | rope Ø | Min. Breaking Load | 1st Layer | Total | |||
300 | 203 | 6 | 10 | 1.9 | 11 | 190 | 74 | 10 |
500 | 330 | 6 | 16 | 1.9 | 11 | 210 | 30 | 10 |
1000 | 770 | 8 | 32 | 3 | 12 | 180 | 18 | 15 |
2000 | 1700 | 12 | 63 | 3 | 8 | 320 | 16 | 23 |
3000 | 2500 | 12 | 95 | 3 | 7 | 300 | 10 | 32 |
Pulling Rope Force (1st Layer) (kg) | Dimensions in mm | ||||||||||||||
A | A1 | B | B1 | B2 | B3 | B4 | C | C1 | C2 | C3 | C4 | D | D | Ø D | |
300 | 200 | 170 | 270 | 96 | 63 | 6 | 130 | 300 | 270 | 89 | 105 | 250 | 250 | 13 | 70 |
500 | 200 | 170 | 270 | 96 | 63 | 6 | 130 | 300 | 270 | 89 | 105 | 250 | 250 | 13 | 70 |
1000 | 290 | 250 | 302 | 125 | 90 | 8.5 | 130 | 290 | 250 | 145.7 | 97.5 | 250 | 250 | 15 | 102 |
2000 | 220 | 180 | 550 | 250 | 126 | 12 | 250 | 330 | 280 | 161.5 | 85 | 300 | 300 | 17 | 120 |
3000 | 260 | 220 | 555 | 255 | 126 | 12 | 250 | 430 | 380 | 222.5 | 110 | 300 | 300 | 17 | 120 |
Pulling Rope Force (daN/kg) | Wire Rope (mm) | Wirerope Storage (m) | Crank Effort (N) | Rope Length per Crank Turn (mm) | Weight (without rope) (kg) | |||
1st Layer | Top Layer | rope Ø | Min. Breaking Load | 1st Layer | Total | |||
300 | 203 | 6 | 10 | 1.9 | 11 | 190 | 74 | 10 |
500 | 330 | 6 | 16 | 1.9 | 11 | 210 | 30 | 10 |
1000 | 770 | 8 | 32 | 3 | 12 | 180 | 18 | 15 |
2000 | 1700 | 12 | 63 | 3 | 8 | 320 | 16 | 23 |
3000 | 2500 | 12 | 95 | 3 | 7 | 300 | 10 | 32 |
Pulling Rope Force (1st Layer) (kg) | Dimensions in mm | ||||||||||||||
A | A1 | B | B1 | B2 | B3 | B4 | C | C1 | C2 | C3 | C4 | D | D | Ø D | |
300 | 200 | 170 | 270 | 96 | 63 | 6 | 130 | 300 | 270 | 89 | 105 | 250 | 250 | 13 | 70 |
500 | 200 | 170 | 270 | 96 | 63 | 6 | 130 | 300 | 270 | 89 | 105 | 250 | 250 | 13 | 70 |
1000 | 290 | 250 | 302 | 125 | 90 | 8.5 | 130 | 290 | 250 | 145.7 | 97.5 | 250 | 250 | 15 | 102 |
2000 | 220 | 180 | 550 | 250 | 126 | 12 | 250 | 330 | 280 | 161.5 | 85 | 300 | 300 | 17 | 120 |
3000 | 260 | 220 | 555 | 255 | 126 | 12 | 250 | 430 | 380 | 222.5 | 110 | 300 | 300 | 17 | 120 |
