  7. Hadef 20/94-AFE Electric Travel Monorail Beam Trolley - Range 1,000kg to 25,000kg
Hadef 20/94-AFE Electric Travel Monorail Beam Trolley - Range 1,000kg to 25,000kg

Hadef 20/94-AFE Electric Travel Monorail Beam Trolley - Range 1,000kg to 25,000kg

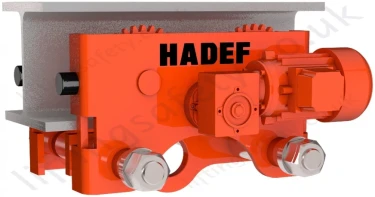

Electric beam trolley with built-in suspension eye and integrated derailment & bumping protection.

Model:

20/94-AFE / HMET-4355

Hadef 20/94-AFE Electric Travel Monorail Beam Trolley - Range 1,000kg to 25,000kg

Hadef 20/94 AFE Electric Beam Trolley
More from:
Hadef
  • Integrated derailment and bumping protection
  • Adjustable to all standard beam sizes (see beam range / flange width options below)
  • Trolley wheels with ball bearing
  • Zinc plated load bars, washers and locking nuts
  • With two trolley speeds of 16/4 m/min (400 V - 50 Hz)
  • Manufactured in Germany
  • Also available in a manual push/pull version, a geared travel version or pneumatically powered.

Specifications

Capacity (kg) Flange width from - to, for load bar size Output (kW) Current (Amps) Minimum curve radius (m) Weight
1N (mm) 2N (mm) Standard Trolley Modified Trolley (2) (3) Beam Range 1N Beam Range 2N
1000 50 - 179 180 - 310 0.06 / 0.25 0.45 / 0.80 3.0 1.0 27.5 28.5
2000 66 - 185 186 - 310 0.06 / 0.25  0.45 / 0.80  3.5 1.5 43.3 45.9
3200 74 - 196 197 - 310  0.06 / 0.25 0.45 / 0.80  6.5 1.8 72.5 76.7
4000 74 - 196 197 - 310  0.06 / 0.25 0.45 / 0.80  6.5 1.8 72.5 76.7
5000 74 - 192 193 - 310  0.06 / 0.25  0.45 / 0.80 7.0 2.0 84.9 88.1
6300 119 - 215 216 - 312 0.10 / 0.42 0.80 / 1.25 8.0 2.2 173.6 178.4
7500 119 - 215 216 - 312  0.10 / 0.42 0.80 / 1.25  8.0 2.2 173.6 178.4
10000 119 - 215 216 - 312  0.10 / 0.42 0.80 / 1.25  8.0 2.2 173.6 178.4
12000 119 - 215 216 - 312  0.10 / 0.42 0.80 / 1.25  8.0 2.2 173.6 178.4
15000 (1) 160 - 310 - 0.18 / 0.55 1.30 / 1.50 - 4.5 565 -
20000 (1) 160 - 310 - 0.18 / 0.75 1.60 / 2.65 - 4.5 565 -
25000 (1) 160 - 310 - 0.18 / 0.75 1.60 / 2.65 - 6.0 624 -

(1) Two travel motors with brake

(2) Available as an option with additional cost

(3) Smaller curve radiuses are available on request.

Dimensions

20-94 AFE Dimensional Drawing

Capacity (kg) Flange width from - to, for load bar size Main dimensions in mm
1N (mm) 2N (mm) A1 A2 A3 A4 B1 (4) B2 B3 B4
1N		 B4
2N		 C1 C3 C4 C5 C6 C7 øD1 øD2 øD4
1000 50 - 179 180 - 310 287 142 100 12 210 31 20 302 432 83 114 27 38 77 14 65 24 40
2000 66 - 185 186 - 310 350 172 68 15 216 40 23 332 456 107 123 34 49 142 20 83 30 55
3200 74 - 196 197 - 310 428 209 29 20 219 46 26 364 486 149 111 34 51 120 28 118 36 73
4000 74 - 196 197 - 310 428 209 29 20 219 46 26 364 486 149 111 34 51 120 28 118 36 73
5000 74 - 192 193 - 310 492 223 47 20 278 53 26 380 516 149 183 38 64 140 30 118 39 73
6300 119 - 215 216 - 312 650 253 - 35 277 62 37 484 582 185 159 37 63 167 36 150 48 80
7500 119 - 215 216 - 312 650 253 - 35 277 62 37 484 582 185 159 37 63 167 36 150 48 80
10000 119 - 215 216 - 312 650 253 - 35 277 62 37 484 582 185 159 37 63 167 36 150 48 80
12000 119 - 215 216 - 312 650 253 - 35 277 62 37 484 582 185 159 37 63 167 36 150 48 80
15000 160 - 310 - 975 380 - 50 351 95 51 581 - 292 235 46 99 348 54 248 75 100
20000 160 - 310 - 975 380 - 50 351 95 51 581 - 269 235 46 99 348 54 248 75 100
25000 (5) 160 - 310 - 1100 436 - 100 343 99 58 581 - 314 312 46 99 181 165 298 75 80

(4) From 15 t up with two travel motors with brake

(5) From 25 t up with suspension bolt

Optional Features (Special request)

Small Curve Radius
Swivelling trolley for very small curve radius
Beam Locking Device
Beam locking device
Rack And Pinion Drive
Rack and pinion drive



Larger Beam Ranges
Larger flange width available
Special Painting
Special painting
Completely Zinc Plated
Totally zinc plated trolley
Explosion Proof
Explosion Protection

Pricing

(min:3) (3 included in price)
Unit Price Request Quote
Description

  • Integrated derailment and bumping protection
  • Adjustable to all standard beam sizes (see beam range / flange width options below)
  • Trolley wheels with ball bearing
  • Zinc plated load bars, washers and locking nuts
  • With two trolley speeds of 16/4 m/min (400 V - 50 Hz)
  • Manufactured in Germany
  • Also available in a manual push/pull version, a geared travel version or pneumatically powered.

Specifications

Capacity (kg) Flange width from - to, for load bar size Output (kW) Current (Amps) Minimum curve radius (m) Weight
1N (mm) 2N (mm) Standard Trolley Modified Trolley (2) (3) Beam Range 1N Beam Range 2N
1000 50 - 179 180 - 310 0.06 / 0.25 0.45 / 0.80 3.0 1.0 27.5 28.5
2000 66 - 185 186 - 310 0.06 / 0.25  0.45 / 0.80  3.5 1.5 43.3 45.9
3200 74 - 196 197 - 310  0.06 / 0.25 0.45 / 0.80  6.5 1.8 72.5 76.7
4000 74 - 196 197 - 310  0.06 / 0.25 0.45 / 0.80  6.5 1.8 72.5 76.7
5000 74 - 192 193 - 310  0.06 / 0.25  0.45 / 0.80 7.0 2.0 84.9 88.1
6300 119 - 215 216 - 312 0.10 / 0.42 0.80 / 1.25 8.0 2.2 173.6 178.4
7500 119 - 215 216 - 312  0.10 / 0.42 0.80 / 1.25  8.0 2.2 173.6 178.4
10000 119 - 215 216 - 312  0.10 / 0.42 0.80 / 1.25  8.0 2.2 173.6 178.4
12000 119 - 215 216 - 312  0.10 / 0.42 0.80 / 1.25  8.0 2.2 173.6 178.4
15000 (1) 160 - 310 - 0.18 / 0.55 1.30 / 1.50 - 4.5 565 -
20000 (1) 160 - 310 - 0.18 / 0.75 1.60 / 2.65 - 4.5 565 -
25000 (1) 160 - 310 - 0.18 / 0.75 1.60 / 2.65 - 6.0 624 -

(1) Two travel motors with brake

(2) Available as an option with additional cost

(3) Smaller curve radiuses are available on request.

Dimensions

20-94 AFE Dimensional Drawing

Capacity (kg) Flange width from - to, for load bar size Main dimensions in mm
1N (mm) 2N (mm) A1 A2 A3 A4 B1 (4) B2 B3 B4
1N		 B4
2N		 C1 C3 C4 C5 C6 C7 øD1 øD2 øD4
1000 50 - 179 180 - 310 287 142 100 12 210 31 20 302 432 83 114 27 38 77 14 65 24 40
2000 66 - 185 186 - 310 350 172 68 15 216 40 23 332 456 107 123 34 49 142 20 83 30 55
3200 74 - 196 197 - 310 428 209 29 20 219 46 26 364 486 149 111 34 51 120 28 118 36 73
4000 74 - 196 197 - 310 428 209 29 20 219 46 26 364 486 149 111 34 51 120 28 118 36 73
5000 74 - 192 193 - 310 492 223 47 20 278 53 26 380 516 149 183 38 64 140 30 118 39 73
6300 119 - 215 216 - 312 650 253 - 35 277 62 37 484 582 185 159 37 63 167 36 150 48 80
7500 119 - 215 216 - 312 650 253 - 35 277 62 37 484 582 185 159 37 63 167 36 150 48 80
10000 119 - 215 216 - 312 650 253 - 35 277 62 37 484 582 185 159 37 63 167 36 150 48 80
12000 119 - 215 216 - 312 650 253 - 35 277 62 37 484 582 185 159 37 63 167 36 150 48 80
15000 160 - 310 - 975 380 - 50 351 95 51 581 - 292 235 46 99 348 54 248 75 100
20000 160 - 310 - 975 380 - 50 351 95 51 581 - 269 235 46 99 348 54 248 75 100
25000 (5) 160 - 310 - 1100 436 - 100 343 99 58 581 - 314 312 46 99 181 165 298 75 80

(4) From 15 t up with two travel motors with brake

(5) From 25 t up with suspension bolt

Optional Features (Special request)

Small Curve Radius
Swivelling trolley for very small curve radius
Beam Locking Device
Beam locking device
Rack And Pinion Drive
Rack and pinion drive



Larger Beam Ranges
Larger flange width available
Special Painting
Special painting
Completely Zinc Plated
Totally zinc plated trolley
Explosion Proof
Explosion Protection
Downloads

20-94-AF(R-H-E-P)-HADEF-Manual-Trolleys.pdf

Hadef 20/94-AF(R/H/E/P) User instructions - Standard

Owners manual for the standard 20-94-AFE, AFR, AFH and AFP range of trolleys

(approx. 1.5Mb) 20-94-AF(R-H-E-P)-EX-HADEF-Manual-Trolley.pdf

Hadef 20/94-AF(R/H/E/P) User instructions - Explosion Proof

Owners manual for the atex range of 20-94-AFE, AFR, AFH and AFP trolleys

(approx. 1.7Mb)
