Yoke Grade 10 Clevis Sling Hooks for use with 6mm to 22mm Lifting Chain

Yoke Grade 10 Clevis Sling Hooks for use with 6mm to 22mm Lifting Chain

Grade 10/100 Clevis sling hook with safety latch for use with grade 10 (grade 100) lifting chains.

Model:

X-043/S Series / G1CSH-3489

Yoke Grade 10 Clevis Sling Hooks for use with 6mm to 22mm Lifting Chain

Grade 10 Sling Hook

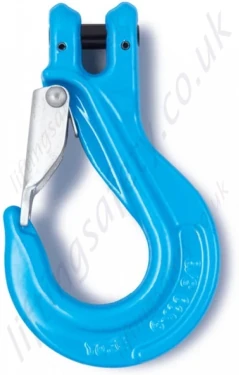

Clevis Sling Hook, for use with grade 10 / grade 100 chain sling assemblies, supplied with load pin and retaining pins.

Grade 10 forged lifting components are manufactured from alloy steel in accordance with EN1677.

All forged components are individually magnaflux crack detected after heat treatment, they are then individually proof load tested to 2.5 times working load limit in accordance with EN1677. Only components fully compliant with all aspects of EN1677 can be used in chain slings certified to EN818-4.

These Grade 10 lifting components are suitable for use in a temperature range of -40°C up to 200°C without reduction in working load limit. Testing according to ASTM A952/A - DIN PAS 1061.

Dimensions and Specifications

Chain Size (mm) A (mm) H (mm) K (mm) P1 (mm) T (mm) WLL (t) Weight (kg)
6 6 23 97 23 15 1.4 0.3
7 and 8 9 22 98 27 18 2.5 0.6
10 11 30 122 34 24 4 1.2
13 14 37 147 44 30 6.7 2.3
16 17 42 166 48 39 10 3.9
20 24 64 207 57 48 16 8.6
22 25 61 217 73 52 19 8.6
Grade 10 Clevis Sling Hook Dimensions
Part N° Chain Size (mm) WLL (t) Weight (kg) Unit Price Quantity
3489-T7136
X-043/S-06
6 1.4 0.3 £  15.00
3489-T7137
X-043/S-07
7 & 8 2.5 0.6 £  17.00
3489-T7138
X-043/S-10
10 4 1.2 £  26.00
3489-T7139
X-043/S-13
13 6.7 2.3 £  47.00
3489-T7140
X-043/S-16
16 10 3.9 £  97.00
3489-T7141
X-043/S-20
20 16 8.6 £  182.00
3489-T24648
X-043/S-22
22 19 8.6 £  365.00


Clevis Sling Hook, for use with grade 10 / grade 100 chain sling assemblies, supplied with load pin and retaining pins.

Grade 10 forged lifting components are manufactured from alloy steel in accordance with EN1677.

All forged components are individually magnaflux crack detected after heat treatment, they are then individually proof load tested to 2.5 times working load limit in accordance with EN1677. Only components fully compliant with all aspects of EN1677 can be used in chain slings certified to EN818-4.

These Grade 10 lifting components are suitable for use in a temperature range of -40°C up to 200°C without reduction in working load limit. Testing according to ASTM A952/A - DIN PAS 1061.

Dimensions and Specifications

Chain Size (mm) A (mm) H (mm) K (mm) P1 (mm) T (mm) WLL (t) Weight (kg)
6 6 23 97 23 15 1.4 0.3
7 and 8 9 22 98 27 18 2.5 0.6
10 11 30 122 34 24 4 1.2
13 14 37 147 44 30 6.7 2.3
16 17 42 166 48 39 10 3.9
20 24 64 207 57 48 16 8.6
22 25 61 217 73 52 19 8.6
Grade 10 Clevis Sling Hook Dimensions
