Crosby 'L1339' Clevis Sling Hook, WLL Range from 1500kg to 21,000kg

Crosby 'L1339' Clevis Sling Hook, WLL Range from 1500kg to 21,000kg

Crosby grade 100 clevis sling hook to suit 6mm to 23mm grade10/100 lifting chain.

Model:

Crosby L-1339 / CCSH-2485

Crosby 'L1339' Clevis Sling Hook, WLL Range from 1500kg to 21,000kg

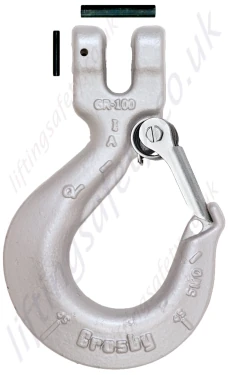

Crosby L1339 Clevis Sling Hooks
  • Forged Alloy Steel Clevis Sling Hook - Quenched and Tempered.
  • Individually Proof Tested to 2-1/2 times the Working Load Limit with certification.
  • Each hook has a Product Identification Code (PIC) for material traceability, along with the size and the name Crosby & U.S.A. in raised letters.
  • Hoist hooks incorporate two types of strategically placed markings forged into the product which address two (2) QUIC-CHECK® features: Deformation Indicators and Angle Indicators. Low profile hook tip.
    New integrated latch (S-4320/S-4339) meets the world standard for lifting. Heavy duty stamped latch interlocks with the hook tip. High cycle, long life spring. When secured with the proper cotter pin through the hole in the tip of hook, meets the intent of OSHA Rule 1926.1431(g) and 1926.1501(g) for personnel lifting.
  • Suitable for use with Grade 100 and Grade 80 chain.
  • Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
  • “Look for the Platinum Color - Crosby Grade 100 Alloy Products.”

Metric Dimensions & Specifications

Chain Size Working Load Limit (t)* Hook ID Code L-1339 Stock No. Weight (kg) Dimensions (mm)  S-4320 Rep. Latch Stock No.  S-4339 Rep. Latch Stock No.
(in.) (mm) D G J L M R AA
 - 6 1.5 DA 1049103 0.29 72.6 18.5 23.6 107 16.0 74.9 38.1 1096325 -
 1/4 7 2.0 HA 1049112 0.72 98.0 26.4 30.2 144 19.1 101 50.8 1096468 -
 5/16 8 2.6 HA 1049121 0.71 98.0 26.4 30.2 144 19.1 100 50.8 1096468 -
 3/8 10 4 IA 1049130 1.17 111 30.2 38.9 171 25.4 120 63.5 1096515 -
 1/2 13 6.8 JA 1049149 2.39 142 36.6 45.2 213 29.7 150 76.2 1096562 -
 5/8 16 10.3 KA 1049158 4.45 172 48.0 61.2 259 36.6 177 102 1096609 -
 3/4 18-20 16.0 - 1049167 8.30 211 71.9 68.3 332 50.0 203 114 - 1048714
 7/8** 22-23** 21.0 - 1049176 11.2 233 78.0 77.5 355 50.0 223 127 - 1048732
* Ultimate Load is 4 times the Working Load Limit. ** 7/8 in. (22-23 mm) size does not have cam, latch attaches to unique pin.
Crosby A1339 Clevis Sling Hook Dimensions
Part N° Chain Size (in.) Chain Size (mm) WLL (t) Hook ID Code Weight (kg) Unit Price Quantity
2485-T17322
1049103
- 6 1.4 DA 0.27 Quote Required
2485-T17323
1049112
1/4 7 2.0 HA 0.43 Quote Required
2485-T17324
1049121
5/16 8 2.6 HA 0.43 Quote Required
2485-T17325
1049130
3/8 10 4.0 IA 1.22 Quote Required
2485-T17326
1049149
1/2 13 6.8 JA 2.49 Quote Required
2485-T17327
1049158
5/8 16 10.3 KA 4.39 Quote Required

  • Forged Alloy Steel Clevis Sling Hook - Quenched and Tempered.
  • Individually Proof Tested to 2-1/2 times the Working Load Limit with certification.
  • Each hook has a Product Identification Code (PIC) for material traceability, along with the size and the name Crosby & U.S.A. in raised letters.
  • Hoist hooks incorporate two types of strategically placed markings forged into the product which address two (2) QUIC-CHECK® features: Deformation Indicators and Angle Indicators. Low profile hook tip.
    New integrated latch (S-4320/S-4339) meets the world standard for lifting. Heavy duty stamped latch interlocks with the hook tip. High cycle, long life spring. When secured with the proper cotter pin through the hole in the tip of hook, meets the intent of OSHA Rule 1926.1431(g) and 1926.1501(g) for personnel lifting.
  • Suitable for use with Grade 100 and Grade 80 chain.
  • Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
  • “Look for the Platinum Color - Crosby Grade 100 Alloy Products.”

Metric Dimensions & Specifications

Chain Size Working Load Limit (t)* Hook ID Code L-1339 Stock No. Weight (kg) Dimensions (mm)  S-4320 Rep. Latch Stock No.  S-4339 Rep. Latch Stock No.
(in.) (mm) D G J L M R AA
 - 6 1.5 DA 1049103 0.29 72.6 18.5 23.6 107 16.0 74.9 38.1 1096325 -
 1/4 7 2.0 HA 1049112 0.72 98.0 26.4 30.2 144 19.1 101 50.8 1096468 -
 5/16 8 2.6 HA 1049121 0.71 98.0 26.4 30.2 144 19.1 100 50.8 1096468 -
 3/8 10 4 IA 1049130 1.17 111 30.2 38.9 171 25.4 120 63.5 1096515 -
 1/2 13 6.8 JA 1049149 2.39 142 36.6 45.2 213 29.7 150 76.2 1096562 -
 5/8 16 10.3 KA 1049158 4.45 172 48.0 61.2 259 36.6 177 102 1096609 -
 3/4 18-20 16.0 - 1049167 8.30 211 71.9 68.3 332 50.0 203 114 - 1048714
 7/8** 22-23** 21.0 - 1049176 11.2 233 78.0 77.5 355 50.0 223 127 - 1048732
* Ultimate Load is 4 times the Working Load Limit. ** 7/8 in. (22-23 mm) size does not have cam, latch attaches to unique pin.
Crosby A1339 Clevis Sling Hook Dimensions
