Globestock Sentry Confined Space Tripod

Globestock Sentry Confined Space Tripod

The SENTRY Tripod is a durable and lightweight anchorage connector which can be used to provide a secure and stable anchorage for confined space access.

Model:

Sentry / GCSS-5583

Globestock Sentry Confined Space Tripod

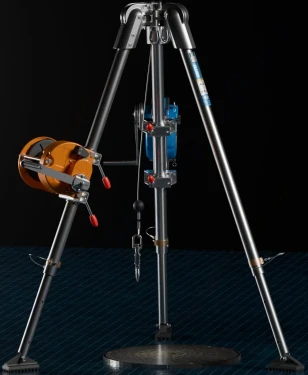

Globestock Sentry Tripod 1 Globestock Sentry Tripod 2 Globestock Sentry Tripod 3 Stored Folded Laid Flat Stored Folded Side View Foot Foot Side View of Tripod Head Under View of Tripod Head
More from:
Globestock Safety

The Globestock Sentry tripod may be used as an anchor by more than one person simultaneously, provided the maximum working load is not exceeded.

Available in two different sizes: Compact (GSE230C - 18.3kg) / Standard (GSE230S - 20.8kg)

Key Features

  • Robust and lightweight
  • Simple folding design
  • Three pulley heads
  • Two person
  • 200kg personnel max. working load
  • 250kg materials max. working load
  • Winch and/or fall arrest blocks and brackets are not included as standard. See the Globestock Winch, Globestock Saver and the Globestock Stop.

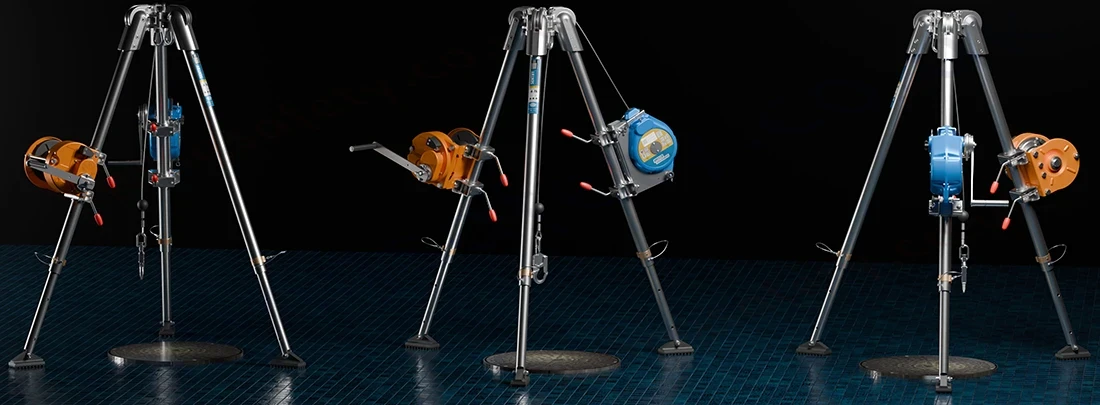

Examples of the Sentry Tripod with a Globestock Stop and a Globestock Winch fitted

Globestock Sentry Tripod 3 Views

Certifications/Conformities

  • EN 795:2012 type B
  • CEN/TS 16415:2013
  • Directive 2006/42/EC
  • ISO 12100:2010
  • ANSI/ASSP Z359.18-2017 Type A
  • CSA Z259.15-22 Class A
  • AS/NZS 5532:2013
  • OSHA 1910.140
  • OSHA 1926.502

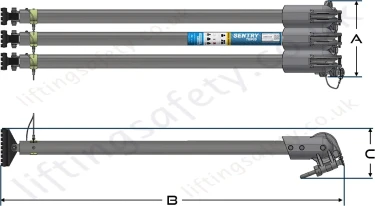

Folded Sentry Dimensions

Dimensional Drawing Folded
Size A B C
COMPACT (GSE230C) 270 mm / 10.63″ 1,217 mm / 47.91″ 180 mm / 7.09″
STANDARD (GSE230S) 270 mm / 10.63″ 1,527 mm / 60.12″ 180 mm / 7.09″

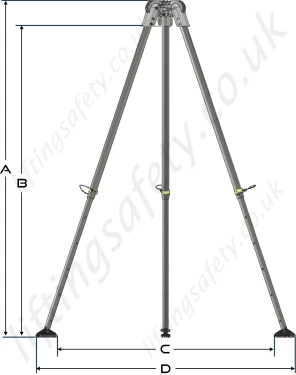

Assembled Sentry Dimensions

Assembled Dimensions
Size A B C D
COMPACT (GSE230C)* 1,131 mm / 44.53″ 963 mm / 37.91″ 841 mm / 33.11″ 1,112 mm / 43.78″
COMPACT (GSE230C)** 1,747 mm / 68.82″ 1,579 mm / 62.24″ 1,315 mm / 51.77″ 1,585 mm / 62.44″
STANDARD (GSE230S)* 1,421 mm / 55.94″ 1,253 mm / 49.33″ 1,064 mm / 41.89″ 1,334 mm / 52.48″
STANDARD (GSE230S)** 2,307 mm / 90.83″ 2,172 mm / 85.43″ 1,755 mm / 69.09″ 2,015 mm / 79.33″
* At tripod's lowest setting
** At the tripod's highest setting

Pricing

Sale Price £811.00

£729.90

Ex. VAT
Add to Shopping Basket

Please Note: Buy online is only available to UK mainland customers and addresses.

Availability

Usually 2-3 Working Days - 1pm cut-off

Description

The Globestock Sentry tripod may be used as an anchor by more than one person simultaneously, provided the maximum working load is not exceeded.

Available in two different sizes: Compact (GSE230C - 18.3kg) / Standard (GSE230S - 20.8kg)

Key Features

  • Robust and lightweight
  • Simple folding design
  • Three pulley heads
  • Two person
  • 200kg personnel max. working load
  • 250kg materials max. working load
  • Winch and/or fall arrest blocks and brackets are not included as standard. See the Globestock Winch, Globestock Saver and the Globestock Stop.

Examples of the Sentry Tripod with a Globestock Stop and a Globestock Winch fitted

Globestock Sentry Tripod 3 Views

Certifications/Conformities

  • EN 795:2012 type B
  • CEN/TS 16415:2013
  • Directive 2006/42/EC
  • ISO 12100:2010
  • ANSI/ASSP Z359.18-2017 Type A
  • CSA Z259.15-22 Class A
  • AS/NZS 5532:2013
  • OSHA 1910.140
  • OSHA 1926.502

Folded Sentry Dimensions

Dimensional Drawing Folded
Size A B C
COMPACT (GSE230C) 270 mm / 10.63″ 1,217 mm / 47.91″ 180 mm / 7.09″
STANDARD (GSE230S) 270 mm / 10.63″ 1,527 mm / 60.12″ 180 mm / 7.09″

Assembled Sentry Dimensions

Assembled Dimensions
Size A B C D
COMPACT (GSE230C)* 1,131 mm / 44.53″ 963 mm / 37.91″ 841 mm / 33.11″ 1,112 mm / 43.78″
COMPACT (GSE230C)** 1,747 mm / 68.82″ 1,579 mm / 62.24″ 1,315 mm / 51.77″ 1,585 mm / 62.44″
STANDARD (GSE230S)* 1,421 mm / 55.94″ 1,253 mm / 49.33″ 1,064 mm / 41.89″ 1,334 mm / 52.48″
STANDARD (GSE230S)** 2,307 mm / 90.83″ 2,172 mm / 85.43″ 1,755 mm / 69.09″ 2,015 mm / 79.33″
* At tripod's lowest setting
** At the tripod's highest setting
Downloads

INFOSHEET-SENTRY.pdf

Sentry Technical Datasheet

(approx. 0.7Mb) INSTRUCTION-MANUAL-SENTRY.pdf

Globestock Sentry User Instructions

(approx. 4.1Mb) DOC-SENTRY-EU.pdf

Globestock Sentry Declaration of Conformity

(approx. 0.3Mb) 01-G.Tripod-230B.pdf

SATRA 3rd Party Type Examination Certification

(approx. 3.6Mb)
