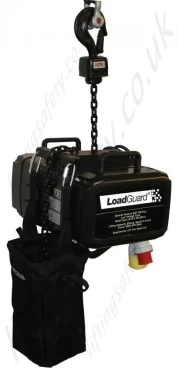

GIS "LG D8" Entertainment Electric Chain Hoists, for General Rigging Purposes to D8 Guidelines, Range 1600kg to 5000kg

For use in TV studios, Music & Sports Arenas, Places of Worship, Production Rigging, Multi-purpose Venues & Theatres

Model:

GDEE-4992


Description

+

Standard hoists that meet current accepted standards and codes of practice for rigging hoists to D8 DGUV54.

  • Modern, quiet, reliable and proven design, manufacture and assembly mean long life and competitive pricing.
  • Lifting capacities from 1600kg to 5000kg.
  • Direct control or low voltage control.
  • Contactor control - (no electronics).
  • Clutch overload device mounted outside the drive train; In the event of clutch problems, the load is not compromised.
  • Can be used upright- motor up or climbing - motor down.
  • Aluminium body - black electrophoretic coated with galvanised or black chain.
  • Eye body suspension, hook suspension and locking hooks on request.
  • Available for 400V, 3Ph power, others on request.
  • Upper and lower geared limit switches.

Options

  • Extra features allow the hoist to conform to higher safety standards when ordered or later modified.
  • These options include second brake, standard and ultimate limit switches, load sensing suspensions and encoders for positional feedback.
  • Locking hooks.
  • Special paint finishes.
  • Flight cases.

Specifications

Hoist type Lifting capacity Nominal lifting speed No. of chain falls Motor power Power consumption loaded Chain dimensions Sound pressure level in hall at 1m distance Chain safety factor Protection class Weight hoist only Weight per metre lift
  (kg) (m/min)   (kW) (A) (mm) dB     (kg) (kg)
LG16/1NL.D8 1600 4 1 0.76 4.5 9 x 27 75 6.4 IP55 60 1.75
LG16/1N.D8 1600 8 1 1.53 6.8 9 x 27 75 6.4 IP55 60 1.75
LG16/2N.D8 3200 4 2 1.53 6.8 9 x 27 75 6.4 IP55 62 3.5
LG20/1NL.D8 2000 4 1 0.96 4.8 10 x 28 75 6.4 IP55 60 2.25
LG20/1N.D8 2000 8 1 1.91 7.3 10 x 28 75 6.4 IP55 60 2.25
LG20/2N.D8 4000 4 2 1.91 7.3 10 x 28 75 6.4 IP55 64 4.5
LG250/1N.D8 2500 3.2 1 1.53 6.8 10 x 28 75 6.4 IP55 60 2.25
LG250/1N.D8 2500 6.4 1 3.06 7.3 10 x 28 75 6.4 IP55 60 2.25
LG250/2N.D8 5000 3.2 2 3.06 6.8 10 x 28 75 6.4 IP55 64 4.5

Dimensions

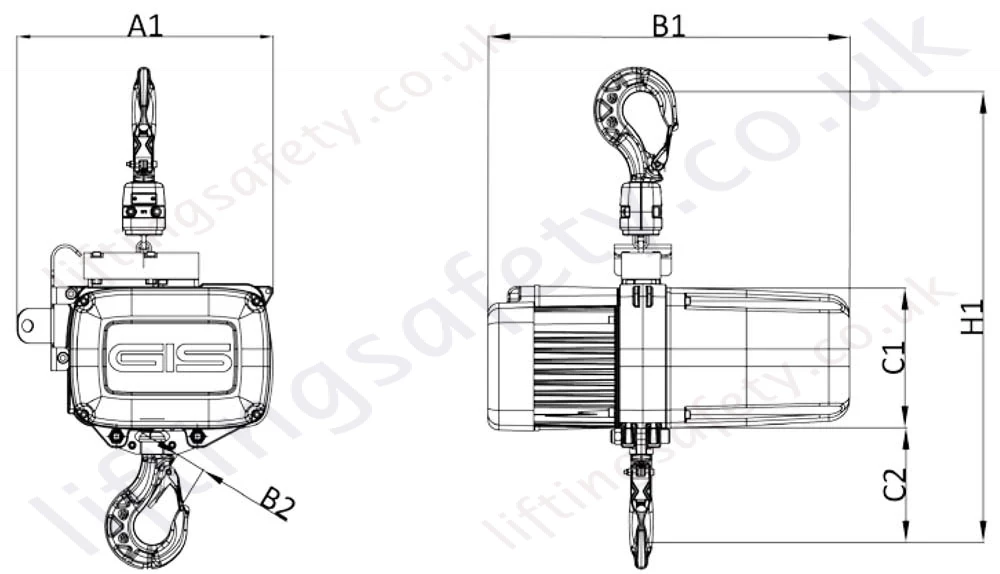

Lp D8 Entertainmnet Chain Hoist Dimensions

Type Number of falls A1 B1 B2 C1 C2
LG16 / D8 1 347 389 37 230 164
LG20 / D8 1 347 389 37 230 164
LG250 / D8 1 347 389 37 230 164

Dimensions of 2 fall hoists on demand
Drawings available on request

Standard hoists that meet current accepted standards and codes of practice for rigging hoists to D8 DGUV54.

  • Modern, quiet, reliable and proven design, manufacture and assembly mean long life and competitive pricing.
  • Lifting capacities from 1600kg to 5000kg.
  • Direct control or low voltage control.
  • Contactor control - (no electronics).
  • Clutch overload device mounted outside the drive train; In the event of clutch problems, the load is not compromised.
  • Can be used upright- motor up or climbing - motor down.
  • Aluminium body - black electrophoretic coated with galvanised or black chain.
  • Eye body suspension, hook suspension and locking hooks on request.
  • Available for 400V, 3Ph power, others on request.
  • Upper and lower geared limit switches.

Options

  • Extra features allow the hoist to conform to higher safety standards when ordered or later modified.
  • These options include second brake, standard and ultimate limit switches, load sensing suspensions and encoders for positional feedback.
  • Locking hooks.
  • Special paint finishes.
  • Flight cases.

Specifications

Hoist type Lifting capacity Nominal lifting speed No. of chain falls Motor power Power consumption loaded Chain dimensions Sound pressure level in hall at 1m distance Chain safety factor Protection class Weight hoist only Weight per metre lift
  (kg) (m/min)   (kW) (A) (mm) dB     (kg) (kg)
LG16/1NL.D8 1600 4 1 0.76 4.5 9 x 27 75 6.4 IP55 60 1.75
LG16/1N.D8 1600 8 1 1.53 6.8 9 x 27 75 6.4 IP55 60 1.75
LG16/2N.D8 3200 4 2 1.53 6.8 9 x 27 75 6.4 IP55 62 3.5
LG20/1NL.D8 2000 4 1 0.96 4.8 10 x 28 75 6.4 IP55 60 2.25
LG20/1N.D8 2000 8 1 1.91 7.3 10 x 28 75 6.4 IP55 60 2.25
LG20/2N.D8 4000 4 2 1.91 7.3 10 x 28 75 6.4 IP55 64 4.5
LG250/1N.D8 2500 3.2 1 1.53 6.8 10 x 28 75 6.4 IP55 60 2.25
LG250/1N.D8 2500 6.4 1 3.06 7.3 10 x 28 75 6.4 IP55 60 2.25
LG250/2N.D8 5000 3.2 2 3.06 6.8 10 x 28 75 6.4 IP55 64 4.5

Dimensions

Lp D8 Entertainmnet Chain Hoist Dimensions

Type Number of falls A1 B1 B2 C1 C2
LG16 / D8 1 347 389 37 230 164
LG20 / D8 1 347 389 37 230 164
LG250 / D8 1 347 389 37 230 164

Dimensions of 2 fall hoists on demand
Drawings available on request

Pricing

Capacity
Power Supply
Suspension Type
Hoist Speed
Height of Lift (m)
Quantity
Unit Price Quote Only
Add to Quote Request
Contact Us About This Product
