Yale "YCS" Single Acting Hollow Cylinders

Yale "YCS" Single Acting Hollow Cylinders

Single-acting hydraulic hollow lifting / jacking cylinders with spring return. Range from 12,000kg to 93,000kg (9 Options).

Model:

YCS / YHC-3610

Yale "YCS" Single Acting Hollow Cylinders

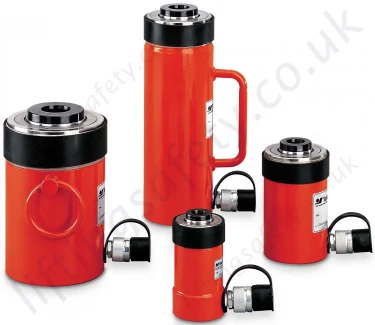

Ycs Small Hollow Cylinder Yale Ycs Hollow Cylinder High Capacity Hollow Hydraulic Cylinder With Side Rings Yale Ycs Hollow Cylinder Range
More from:
Yale

Due to the centre hole design a threaded rod can be placed through the hollow cylinders so that extremely high pulling forces can be achieved for applications such as pressurising of anchor bolts, removal of axles and bushings, extracting tubes, and within puller sets or for general heavy duty pulling jobs. Incl. saddle, mounting threads and female coupler half.

Features

  • Yale ChroMo-Design.
  • Operating pressure max. 700 bar.
  • Single-acting with spring return.
  • With large centre hole diameter.
  • Cylinder body and piston are made from massive chromium-molybdenum steel and heat treated.
  • Hard-chromium plated piston with replaceable, heat treated saddle.
  • Metric mounting threads at cylinder body and inside of piston.
  • Stop ring prevents over travel of the piston up to full operating pressure.
  • Interchangeable hardened saddle.
  • With inner and outer dirt wipers.
  • Oil port thread: 3/8 NPT.
  • Incl. female coupler half model CFY-1.
  • From model YCS-21/150 with carrying handle.
  • From model YCS-57/70 with two lifting rings.

Technical Specifications

Cylinder size Model   EAN-No. Capacity  Lift  Effective plunger area Max. oil volume Closed height Centre hole diameter Cylinder outside diameter Weight
t 4025092* kN mm cm2 cm3 mm mm mm kg
12 YCS-12/40 *150873 120 40 17.2 71 142 20 70 3.5
12 YCS-12/75 *150880 120 75 17.2 132 195 20 70 4.5
21 YCS-21/50 *150897 214 50 30.5 153 173 27 100 8.5
21 YCS-21/150 *150903 214 150 30.5 458 335 27 100 15.0
33 YCS-33/60 *150910 335 60 47.9 287 193 33 114 12.0
33 YCS-33/150 *150927 335 150 47.9 716 343 33 114 21.0
57 YCS-57/70 *150934 567 70 81.0 562 242 42 150 25.0
62 YCS-62/150 *150941 618 150 88.3 1330 335 55 163 38.0
93 YCS-93/75 *150958 930 75 133.0 990 280 80 214 55.0

Dimensional Information

Dimensional Drawing Model YCS- 12/40 YCS- 12/75 YCS- 21/50 YCS- 21/150 YCS- 33/60 YCS- 33/150 YCS- 57/70 YCS- 62/150 YCS- 93/75
Dimensional Drawing
 A, mm 135 188 163 325 183 333 230 323 265
B, mm 175 263 213 475 243 483 300 473 340
C, mm 20 20 27 27 33 33 42 55 80
D, mm 70 70 100 100 114 114 150 163 214
E, mm 55 55 73 73 90 90 118 130 170
F, mm 40 40 53 53 65 65 90 100 136
J, mm 38 38 50 50 62 62 85 96 132
K, mm 3 3 3 3 3 3 3 3 5
M, mm - - - 120 - 120 - - -
O, mm M30 x 1.5 M30 x 1.5 M40 x 1.5 M40 x 1.5 M48 x 1.5 M48 x 1.5 M65 x 2 M78 x 2 M115 x 2
P, mm 20 20 25 25 30 30 35 40 45
R, mm 4 4 5 5 5 5 5 5 -
S, mm - - - 51 - 51 24 24 24
T, mm - - - - - - 155 200 170
U, mm 58 58 82 82 92 92 120 135 180
V, mm 2 x M8 2 x M8 2 x MIO 2 x MIO 4 x MIO 4 x MIO 4 x M12 4 x M12 4 x M16
W, mm 30 30 35 35 40 40 50 60 -
X, mm M70 x 2 M70 x 2 M100 x 2 M100 x 2 M110 x 2 M110 x 2 M150 x 3 M160 x 3 -
Y, mm 7 7 10 10 10 10 12 12 15
Part N° Model Cylinder size (t) Capacity (kN) Lift (mm) Effective plunger area (cm2) Max. oil volume (cm3) Closed height (mm) Centre hole diameter (mm) Cylinder outside diameter (mm) Weight (kg) Sale Price (Ex. VAT) Quantity
3610-T7902
YCS-12/40 		YCS 12/40 12 120 40 17.2 71 142 20 70 3.5
( £510.77 )
£469.91
3610-T7903
YCS-12/75 		YCS 12/75 12 120 75 17.2 132 195 20 70 4.5
( £535.36 )
£492.54
3610-T7904
YCS-21/50 		YCS 21/50 21 214 50 30.5 153 173 27 100 8.5
( £782.55 )
£719.95
3610-T7905
YCS-21/150 		YCS 21/150 21 214 150 30.5 458 335 27 100 15
( £1,227.78 )
£1,129.56
3610-T7906
YCS-33/60 		YCS 33/60 33 335 60 47.9 287 193 33 114 12
( £1,054.34 )
£969.99
3610-T7907
YCS-33/150 		YCS 33/150 33 335 150 47.9 716 343 33 114 21
( £1,533.70 )
£1,411.00
3610-T7908
YCS-57/70 		YCS 57/70 57 567 70 81 562 242 42 150 25
( £1,704.41 )
£1,568.06
3610-T7909
YCS-62/150 		YCS 62/150 62 618 150 88.3 1330 335 55 163 38
( £2,454.19 )
£2,257.85
3610-T7910
YCS-93/75 		YCS 93/75 93 930 75 133 990 280 80 214 55
( £3,430.68 )
£3,156.22
Availability Usually 7-10 Working Days
Add to Shopping Basket
Please Note: Buy online is only available to UK mainland customers and addresses.
Description

Due to the centre hole design a threaded rod can be placed through the hollow cylinders so that extremely high pulling forces can be achieved for applications such as pressurising of anchor bolts, removal of axles and bushings, extracting tubes, and within puller sets or for general heavy duty pulling jobs. Incl. saddle, mounting threads and female coupler half.

Features

  • Yale ChroMo-Design.
  • Operating pressure max. 700 bar.
  • Single-acting with spring return.
  • With large centre hole diameter.
  • Cylinder body and piston are made from massive chromium-molybdenum steel and heat treated.
  • Hard-chromium plated piston with replaceable, heat treated saddle.
  • Metric mounting threads at cylinder body and inside of piston.
  • Stop ring prevents over travel of the piston up to full operating pressure.
  • Interchangeable hardened saddle.
  • With inner and outer dirt wipers.
  • Oil port thread: 3/8 NPT.
  • Incl. female coupler half model CFY-1.
  • From model YCS-21/150 with carrying handle.
  • From model YCS-57/70 with two lifting rings.

Technical Specifications

Cylinder size Model   EAN-No. Capacity  Lift  Effective plunger area Max. oil volume Closed height Centre hole diameter Cylinder outside diameter Weight
t 4025092* kN mm cm2 cm3 mm mm mm kg
12 YCS-12/40 *150873 120 40 17.2 71 142 20 70 3.5
12 YCS-12/75 *150880 120 75 17.2 132 195 20 70 4.5
21 YCS-21/50 *150897 214 50 30.5 153 173 27 100 8.5
21 YCS-21/150 *150903 214 150 30.5 458 335 27 100 15.0
33 YCS-33/60 *150910 335 60 47.9 287 193 33 114 12.0
33 YCS-33/150 *150927 335 150 47.9 716 343 33 114 21.0
57 YCS-57/70 *150934 567 70 81.0 562 242 42 150 25.0
62 YCS-62/150 *150941 618 150 88.3 1330 335 55 163 38.0
93 YCS-93/75 *150958 930 75 133.0 990 280 80 214 55.0

Dimensional Information

Dimensional Drawing Model YCS- 12/40 YCS- 12/75 YCS- 21/50 YCS- 21/150 YCS- 33/60 YCS- 33/150 YCS- 57/70 YCS- 62/150 YCS- 93/75
Dimensional Drawing
 A, mm 135 188 163 325 183 333 230 323 265
B, mm 175 263 213 475 243 483 300 473 340
C, mm 20 20 27 27 33 33 42 55 80
D, mm 70 70 100 100 114 114 150 163 214
E, mm 55 55 73 73 90 90 118 130 170
F, mm 40 40 53 53 65 65 90 100 136
J, mm 38 38 50 50 62 62 85 96 132
K, mm 3 3 3 3 3 3 3 3 5
M, mm - - - 120 - 120 - - -
O, mm M30 x 1.5 M30 x 1.5 M40 x 1.5 M40 x 1.5 M48 x 1.5 M48 x 1.5 M65 x 2 M78 x 2 M115 x 2
P, mm 20 20 25 25 30 30 35 40 45
R, mm 4 4 5 5 5 5 5 5 -
S, mm - - - 51 - 51 24 24 24
T, mm - - - - - - 155 200 170
U, mm 58 58 82 82 92 92 120 135 180
V, mm 2 x M8 2 x M8 2 x MIO 2 x MIO 4 x MIO 4 x MIO 4 x M12 4 x M12 4 x M16
W, mm 30 30 35 35 40 40 50 60 -
X, mm M70 x 2 M70 x 2 M100 x 2 M100 x 2 M110 x 2 M110 x 2 M150 x 3 M160 x 3 -
Y, mm 7 7 10 10 10 10 12 12 15
Pricing (Buy/Quote)
