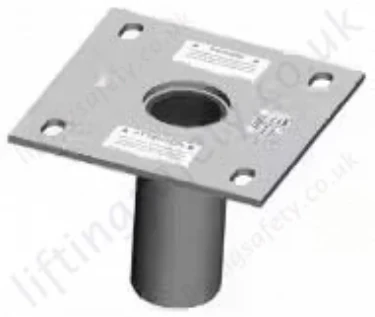

Xtirpa IN-2114 Zinc Plated Flush Fit Base for use with 610mm Reach Arms

Flush mount floor socket to attach to concrete or steel. May help to reduce trip hazards when not in use. Use with mast IN-2003 and davit arm IN-2210.

Model:

IN2114 / XIZP-5236


  • Unit weight: 11kg
  • Standards meet or exceed ANSI, CSA, OSHA & CE
  • Maximum Working Load: 164kg
  • Material: Steel, Zinc Plated
  • Full 360° operating radius
  • Fixings are not included.

Conformance: EN795, TS16415, Z359.1, Z259.2.1-98 and 1910.66 App C

Operating Radius

 360° Operating Radius



da2114-01_ang-1.pdf

Drawing

(approx. 8.7Mb)
MU8003-CE-eng_rev03.pdf

User Instructions

(approx. 2.6Mb)
  • Unit weight: 11kg
  • Standards meet or exceed ANSI, CSA, OSHA & CE
  • Maximum Working Load: 164kg
  • Material: Steel, Zinc Plated
  • Full 360° operating radius
  • Fixings are not included.

Conformance: EN795, TS16415, Z359.1, Z259.2.1-98 and 1910.66 App C

Operating Radius

 360° Operating Radius



da2114-01_ang-1.pdf

Drawing

(approx. 8.7Mb)
MU8003-CE-eng_rev03.pdf

User Instructions

(approx. 2.6Mb)

Pricing

Unit Price £489.00

Contact Us About This Product
