Yale "VPS" Pressure Switch, Adjustable between 100 - 800 Bar

Yale "VPS" Pressure Switch, Adjustable between 100 - 800 Bar

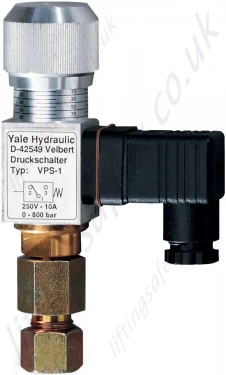

Yale hydraulic pressure switch.

Model:

VPS / VPS-3628

Yale "VPS" Pressure Switch, Adjustable between 100 - 800 Bar

VPS Pressure Switch

This precision adjustable pressure switch can be set to any pressure between 100-700 bar by means of a screwed adjuster.

As soon as the pressure has reached the set value, a micro-switch (alternating contact) is activated. Should the pressure drop, the micro-switch starts the pump again in order to rebuild the pressure.

This signal can be used:

• For automatic pressure limiting.

• To report a certain pressure value.

• As an automatic motor on/off switch with pressure guard power packs.

Dimensions & Specifications

Model Control Range Electric Data Oil Ports Difference of switch point bar Repeat accuracy bar Dims. (H x W) Weight
VPS-1 100-800 bar 5 A/250V 3/8 NPT 25-70 10 130 x 85mm 0.5kg
Part N° EAN-No. 4025092* Control range (bar) Electric data Oil port Difference of switch point (bar) Repeat accuracy (bar) Weight (kg) Unit Price (Ex. VAT) Quantity
3628-T8006
VPS-1 		*155090 5 - 700 5 A/250 V 3/8 NPT 25 - 70 10 0.5 £289.54
Availability Usually 7-10 Working Days
Add to Shopping Basket
Please Note: Buy online is only available to UK mainland customers and addresses.
Description

This precision adjustable pressure switch can be set to any pressure between 100-700 bar by means of a screwed adjuster.

As soon as the pressure has reached the set value, a micro-switch (alternating contact) is activated. Should the pressure drop, the micro-switch starts the pump again in order to rebuild the pressure.

This signal can be used:

• For automatic pressure limiting.

• To report a certain pressure value.

• As an automatic motor on/off switch with pressure guard power packs.

Dimensions & Specifications

Model Control Range Electric Data Oil Ports Difference of switch point bar Repeat accuracy bar Dims. (H x W) Weight
VPS-1 100-800 bar 5 A/250V 3/8 NPT 25-70 10 130 x 85mm 0.5kg
