- LiftingSafety "Tube Hoist" Low Headroom Wire Rope Lifting Hoist. Options Manual or Air Powered (Pneumatic) - Range from 250kg to 750kg
LiftingSafety "Tube Hoist" Low Headroom Wire Rope Lifting Hoist. Options Manual or Air Powered (Pneumatic) - Range from 250kg to 750kg
Extremely portable and light-weight pole hoist ideal for confined space hoisting. Up to 9m HOL dependant on SWL.
TH-3204

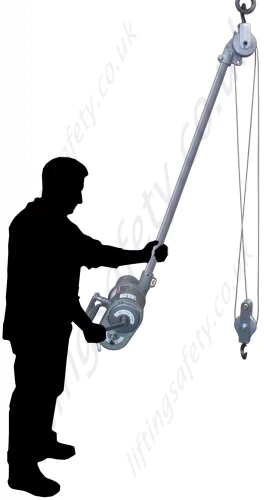

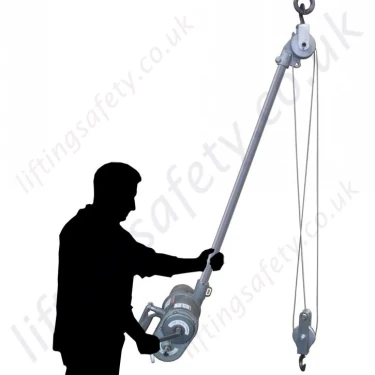

LiftingSafety's pneumatic tube hoist is a wire rope lifting hoist that allows the user to use the tube of the hoist to connect to anchorage point above the item to be lifted with the rigid tube elevating the need to anchor the hoist to the floor. Much the same as using a pulley and anchoring the hoist to the floor except safer and quicker. We offer available in the following 3 capacities: 250kg at 9m HOL, 500kg at 4.5 metre HOL and 750kg at 3 metre HOL.
Open Drum Version - For Greater lifting Heights
The open drum version of the MiniLift lifting hoist is available in the same safe working loads at working heights up to 45 metres. Please note that the open drum version is supplied in two configurations:
- Open frame design (connecting the overhead pulley sheave to the hand hoist)
- No tube or frame. For this option both the hand hoist body needs to be mechanically fixed to a suitable anchorage point. Please contact our sales department for more information.
Features
- Light in weight.
- Alternative speed of lift.
- Automatic fail-safe braking system.
- 2-speed manual operation minimises operator effort and allows rapid wind-in/wind-out when unladen.
- Optional air drive attachment available for powered lifting.
- Torque limited overload protection on winding handle.
- Cable laying system prevents snagging of cable, reduces cable wear.
- Speed governed descent allows smooth, effortless lowering.
- Versatile operation and choice of mounting arrangements.
- Built to meet the highest health and safety standards.
- Fast for light loads, slow for heavy loads.
- Perfect control at all times.
- No dirt or oil to contaminate foods, etc.
- Lowering positioning to a fraction of an inch.
- Quick and easy to suspend and remove.
- Ideal for delicate loads.
- No chains to cause damage.
- Optional air motor drive.
Additional Hoist Information
The tube hoist has established itself in many industries over the years, giving long and satisfactory service. The range comprises of 3 different capacities, these are 5 cwt (254kg), 10 cwt (508kg) and 15 cwt (762kg), which offer a selection of light lifting solutions and cover many applications within a great range of industries. The ultra light weight of the tube hoist range provides many advantages over more conventional equipment, allowing complete portability and the facility for using one hoist in place of a number of fixed lifting devices.
Construction
Designed to incorporate the advantage of light-weight aluminium construction with low head-room and simplicity of operation. The tube hoist gives the greatest possible ease of operation in confined spaces. It is simple to raise and lower the load to a fraction of an inch.
750kg model (3 rope falls and pulley)
750kg Top Hook and Pulley
750kg Bottom Hook and Pulley
Hoist Mechanism
Embodies a sliding drum onto which a single layer of cable is wound. The drive is provided by means of sprockets and roller chain, all the hoist spindles being carried on ball bearings. The load is raised by a hand crank engaging on the primary drive for fast lift and on a secondary drive to allow a reduced ratio of lift on three to one.
Brake
The brake mechanism is of the band type faced with friction material, being permanently engaged to sustain the load. Pressure on a lever conveniently situated upon the back of the hand grip disengages for lowering. Whilst lifting, it is automatically disengaged by means of a free wheel mechanism. For controlled speed of drop, light pressure should be applied.
Where accurate positioning of the load is required the winding handle can be re-engaged and maintaining slight pressure on the brake the load can be wound down to within the close limits.
Automatic Lowering Brake
This automatically regulates the speed of the drop under free fall conditions by centrifugal force to a controlled safe rate for even the heaviest load, details of the controlled fall are given in the tables below.
Wire Rope
The high tensile steel wire rope is of the highest quality. The load is carried on one rope on the 250kg, with two ropes on the 500kg and 3 ropes on the 750kg model.
Tube Length
The standard tube is 4 ft long (approx 1.2 metre), though can be supplied shorter or longer to suit our customers requirements; generally supplied up to 8ft (2.4 metre) long though longer tubes can be supplied if required. We can also supply extension tubes the temporally increase the length of the standard tube, obviously these can then be removed again (quickly and simply) after use
Winding Handle
A non-rotating crank is supplied incorporating an automatic throw-out mechanism between the driving pin and dog, so as to obviate the necessity of removing the crank before lowering.
Optional Air Drive Motor - Powered Lifting
For intensive use application or if speed of lift is critical we can supply all of our Mini lift tube hoists with a pneumatic motor fitted. The air drive motor provides excellent duty capability and precise control for demanding lifting applications in harsh environments.
- Specification: 0.85 H.P.
- 1100 r.p.m. free speed, 600 r.p.m. full load speed.
- Maximum stall torque: 21.7 Nm (16 lb/ft).
- Air supply: 35 CFM at 90 psi.
- Weight: 8kg (18 lbs).
Service
Prompt service facilities are available. Annual inspection, test and re-issue of a test certificate can be provided. Details will be provided upon request.
Inspection and Test Certificate
All components are carefully tested for compliance with specifications, heat treatment, accuracy and interchangeability, and all are designed to withstand a safety factor of five to one on the rated lift. The hoists are tested on overload the the British Board of Trade requirements of Docks and Harbour Board requirements. A certificate of test is issued with each tube hoist.

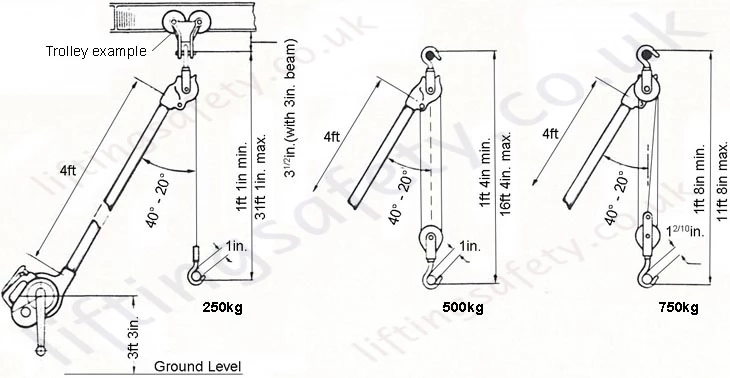

Dimensions and Specifications
Model | 250kg (254kg) | 500kg (508kg) | 750kg (762kg) | |
Two lifting ratios. One rev. of winding handle lifts load | Slow gear | 29mm (1.14") | 15mm (0.57") | 10mm (0.38") |
Fast gear | 93mm (3.66") | 47mm (1.83") | 31mm (1.22") | |
Speed governor controlled fall (with max load) | 508mm/sec (20"/sec) | 305mm/sec (12"/sec) | 229mm/sec (9"/sec) | |
Weight of hoist (without trolley) | 16kg | 17kg | 18kg |
*Other tube lengths made to order.
Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.
LiftingSafety's pneumatic tube hoist is a wire rope lifting hoist that allows the user to use the tube of the hoist to connect to anchorage point above the item to be lifted with the rigid tube elevating the need to anchor the hoist to the floor. Much the same as using a pulley and anchoring the hoist to the floor except safer and quicker. We offer available in the following 3 capacities: 250kg at 9m HOL, 500kg at 4.5 metre HOL and 750kg at 3 metre HOL.
Open Drum Version - For Greater lifting Heights
The open drum version of the MiniLift lifting hoist is available in the same safe working loads at working heights up to 45 metres. Please note that the open drum version is supplied in two configurations:
- Open frame design (connecting the overhead pulley sheave to the hand hoist)
- No tube or frame. For this option both the hand hoist body needs to be mechanically fixed to a suitable anchorage point. Please contact our sales department for more information.
Features
- Light in weight.
- Alternative speed of lift.
- Automatic fail-safe braking system.
- 2-speed manual operation minimises operator effort and allows rapid wind-in/wind-out when unladen.
- Optional air drive attachment available for powered lifting.
- Torque limited overload protection on winding handle.
- Cable laying system prevents snagging of cable, reduces cable wear.
- Speed governed descent allows smooth, effortless lowering.
- Versatile operation and choice of mounting arrangements.
- Built to meet the highest health and safety standards.
- Fast for light loads, slow for heavy loads.
- Perfect control at all times.
- No dirt or oil to contaminate foods, etc.
- Lowering positioning to a fraction of an inch.
- Quick and easy to suspend and remove.
- Ideal for delicate loads.
- No chains to cause damage.
- Optional air motor drive.
Additional Hoist Information
The tube hoist has established itself in many industries over the years, giving long and satisfactory service. The range comprises of 3 different capacities, these are 5 cwt (254kg), 10 cwt (508kg) and 15 cwt (762kg), which offer a selection of light lifting solutions and cover many applications within a great range of industries. The ultra light weight of the tube hoist range provides many advantages over more conventional equipment, allowing complete portability and the facility for using one hoist in place of a number of fixed lifting devices.
Construction
Designed to incorporate the advantage of light-weight aluminium construction with low head-room and simplicity of operation. The tube hoist gives the greatest possible ease of operation in confined spaces. It is simple to raise and lower the load to a fraction of an inch.
750kg model (3 rope falls and pulley)
750kg Top Hook and Pulley
750kg Bottom Hook and Pulley
Hoist Mechanism
Embodies a sliding drum onto which a single layer of cable is wound. The drive is provided by means of sprockets and roller chain, all the hoist spindles being carried on ball bearings. The load is raised by a hand crank engaging on the primary drive for fast lift and on a secondary drive to allow a reduced ratio of lift on three to one.
Brake
The brake mechanism is of the band type faced with friction material, being permanently engaged to sustain the load. Pressure on a lever conveniently situated upon the back of the hand grip disengages for lowering. Whilst lifting, it is automatically disengaged by means of a free wheel mechanism. For controlled speed of drop, light pressure should be applied.
Where accurate positioning of the load is required the winding handle can be re-engaged and maintaining slight pressure on the brake the load can be wound down to within the close limits.
Automatic Lowering Brake
This automatically regulates the speed of the drop under free fall conditions by centrifugal force to a controlled safe rate for even the heaviest load, details of the controlled fall are given in the tables below.
Wire Rope
The high tensile steel wire rope is of the highest quality. The load is carried on one rope on the 250kg, with two ropes on the 500kg and 3 ropes on the 750kg model.
Tube Length
The standard tube is 4 ft long (approx 1.2 metre), though can be supplied shorter or longer to suit our customers requirements; generally supplied up to 8ft (2.4 metre) long though longer tubes can be supplied if required. We can also supply extension tubes the temporally increase the length of the standard tube, obviously these can then be removed again (quickly and simply) after use
Winding Handle
A non-rotating crank is supplied incorporating an automatic throw-out mechanism between the driving pin and dog, so as to obviate the necessity of removing the crank before lowering.
Optional Air Drive Motor - Powered Lifting
For intensive use application or if speed of lift is critical we can supply all of our Mini lift tube hoists with a pneumatic motor fitted. The air drive motor provides excellent duty capability and precise control for demanding lifting applications in harsh environments.
- Specification: 0.85 H.P.
- 1100 r.p.m. free speed, 600 r.p.m. full load speed.
- Maximum stall torque: 21.7 Nm (16 lb/ft).
- Air supply: 35 CFM at 90 psi.
- Weight: 8kg (18 lbs).
Service
Prompt service facilities are available. Annual inspection, test and re-issue of a test certificate can be provided. Details will be provided upon request.
Inspection and Test Certificate
All components are carefully tested for compliance with specifications, heat treatment, accuracy and interchangeability, and all are designed to withstand a safety factor of five to one on the rated lift. The hoists are tested on overload the the British Board of Trade requirements of Docks and Harbour Board requirements. A certificate of test is issued with each tube hoist.
Dimensions and Specifications
Model | 250kg (254kg) | 500kg (508kg) | 750kg (762kg) | |
Two lifting ratios. One rev. of winding handle lifts load | Slow gear | 29mm (1.14") | 15mm (0.57") | 10mm (0.38") |
Fast gear | 93mm (3.66") | 47mm (1.83") | 31mm (1.22") | |
Speed governor controlled fall (with max load) | 508mm/sec (20"/sec) | 305mm/sec (12"/sec) | 229mm/sec (9"/sec) | |
Weight of hoist (without trolley) | 16kg | 17kg | 18kg |
*Other tube lengths made to order.
Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.
Contact Us About This Product
If you wish to receive a quote for this product, please use the 'Pricing' tab above, this form is for general enquiries regarding this product only.
You can also Request a Quote using the Buy/Quote tab above!
You can easily add more than one item to the Quote Request. This is highly recommend as we will be able to suit your needs much more efficiently.
Share this page!
Save this QR code
for use on Smart Phones
