  7. Tractel "EH" Single Side Opening SnatchBlock, Capacities of 1000kg to 8000kg
Tractel "EH" Single Side Opening SnatchBlock, Capacities of 1000kg to 8000kg

Tractel "EH" Single Side Opening SnatchBlock, Capacities of 1000kg to 8000kg

New product from Tractel, EH Single side opening blocks - 1 Sheave, SWL upto 8000kg (8 tonnes).

Model:

EH Single / TE-3273

Tractel "EH" Single Side Opening SnatchBlock, Capacities of 1000kg to 8000kg

Tractel EH Single Side Opening Snatch Block Tractel Eh Single Side Opening Snatchblock 1 Tractel Eh Single Side Opening Snatchblock 2 Tractel Eh Single Side Opening Snatchblock 5 Tractel Eh Single Side Opening Snatchblock 3 Tractel Eh Single Side Opening Snatchblock 6
More from:
Tractel Alimak

A hook with safety latch is installed on the EH’s snatch blocks model to ensure a quick and safe attachment.

Once the snatch block is not under tension, the opening, operated by turning ¼ turn the snatch block body around the steel crosshead, makes the introducing of the wire rope in the groove possible, while the block remains suspended. All the parts stay interdependent during the flange opening and the wire rope introduction.



Tractel EH single side opening block 2

Tractel EH single side opening block

Tractel EH single side opening block 3



The locking axle is secured by a safety pin, which prevents from any unscrewing or uncontrolled movement.

Steel crosshead with self-locking trunnions avoids any opening of the loaded snatch block. This locking system is easy and efficient. The becket permits a block sheaving 3 times.

Tractel EH single side opening block applications

Applications

The single sheave snatch blocks of the EH’s range are mainly used for temporary applications for pulling and lifting, when quick assemblies  and/or dismantlings are required. They can be suspended to a fixed or mobile anchorage point with the right strength corresponding to the required load. Thanks to an easy instalment and availability of a becket, these snatch blocks are most often used for blocks assmblies or wire rope direction changes. EH’s snatch blocks are fitted with a swivel hook which ensure good positioning of the pulley regarding the cable.
The EH’s range can be used with standard tirfor® and tirak® wire rope cable.

Technical Characteristics

  • Ultimate load is 4 times the working load limit (WLL).
  • Zinc bichromated coating.
  • The sheaves are fitted either on bronze bush or on ball or roller bearing.

Dimensions

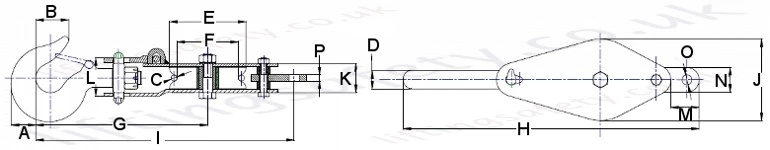

Tractel EH Dimensions

Model Capacity (kg) Bearing sheave Ø Rope Ø A B D G H I J K L M N O P Weight (kg)
F E C
Ø Bog* Ø Ext Ø min/max
E303H 1000kg Bb & Gr 80 100 8 /9 33 43 24 225 386 355 106 38 50 37 32 13 8 3
E460H** 1600kg Bb & Gr 132 160 7.5 / 8.3 41 59 30 315 541 482 170 58 77 56 40 17.5 16 7
E313H 2000kg Bb & Gr 132 160 10 / 12 41 59 30 315 541 482 170 58 77 56 40 17.5 16 7
E323H 3200kg Bb & Gr 160 200 13 /15 49 60 38 369 631 562 210 80 94 53 40 17.5 16 15.5
E470H** 3200kg Bb & Gr 160 200 10 / 11.5 49 60 38 369 631 562 210 80 94 53 40 17.5 16 15.5
E490H 5000kg Bb & Gr 160 200 13 /15 49 60 38 368 646 567 210 80 94 69 60 25 20 17
E333H 5000kg Bb & Gr 210 250 16 /18 49 60 38 405 719 640 260 88 94 62 60 25 20 20.2
E480H** 6400kg Ro 275 336 14 / 16.3 68 80 48 510 896 794 343 92 110 75 70 30 25 34
E347H 8000kg Ro 275 336 21 / 23 68 80 48 510 896 794 343 92 110 75 70 30 25 34

Bb & Gr : bronze bush & axial lubrificator

Ro : roller bearing

* Bottom of groove

** For TIRFOR rope

Part N° Sheave bog Ø (mm) Ø wire rope (mm) Capacity (kg) Weight (kg) Guide Price (Ex. VAT) Quantity
3273-T20663
80869 		80 / 100 8 / 9 1000kg 3kg £293.00
3273-T20736
80969 		132 / 160 7.5 / 8.3 1600kg 7kg £433.00
3273-T20664
80889 		132 / 160 10 / 12 2000kg 7kg £415.00
3273-T20665
80909 		160 / 200 13 / 15 3200kg 15.5kg £756.00
3273-T20737
80989 		160 / 200 10 / 11.5 3200kg 15.5kg £737.00
3273-T20666
81029 		160 / 200 13 / 15 5000kg 17kg £800.00
3273-T20738
80929 		210 / 250 16 / 18 5000kg 20.2kg £882.00
3273-T20739
81009 		275 / 336 14 / 16.3 6400kg 34kg £1,322.00
3273-T20740
80949 		275 / 336 21 / 23 8000kg 34kg £1,643.00
Description

A hook with safety latch is installed on the EH’s snatch blocks model to ensure a quick and safe attachment.

Once the snatch block is not under tension, the opening, operated by turning ¼ turn the snatch block body around the steel crosshead, makes the introducing of the wire rope in the groove possible, while the block remains suspended. All the parts stay interdependent during the flange opening and the wire rope introduction.



Tractel EH single side opening block 2

Tractel EH single side opening block

Tractel EH single side opening block 3



The locking axle is secured by a safety pin, which prevents from any unscrewing or uncontrolled movement.

Steel crosshead with self-locking trunnions avoids any opening of the loaded snatch block. This locking system is easy and efficient. The becket permits a block sheaving 3 times.

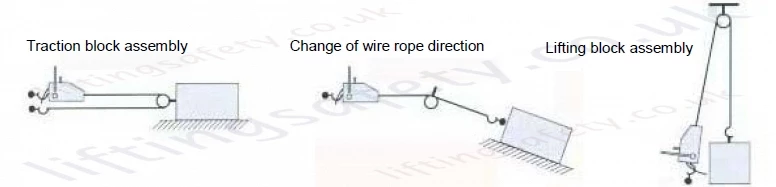

Tractel EH single side opening block applications

Applications

The single sheave snatch blocks of the EH’s range are mainly used for temporary applications for pulling and lifting, when quick assemblies  and/or dismantlings are required. They can be suspended to a fixed or mobile anchorage point with the right strength corresponding to the required load. Thanks to an easy instalment and availability of a becket, these snatch blocks are most often used for blocks assmblies or wire rope direction changes. EH’s snatch blocks are fitted with a swivel hook which ensure good positioning of the pulley regarding the cable.
The EH’s range can be used with standard tirfor® and tirak® wire rope cable.

Technical Characteristics

  • Ultimate load is 4 times the working load limit (WLL).
  • Zinc bichromated coating.
  • The sheaves are fitted either on bronze bush or on ball or roller bearing.

Dimensions

Tractel EH Dimensions

Model Capacity (kg) Bearing sheave Ø Rope Ø A B D G H I J K L M N O P Weight (kg)
F E C
Ø Bog* Ø Ext Ø min/max
E303H 1000kg Bb & Gr 80 100 8 /9 33 43 24 225 386 355 106 38 50 37 32 13 8 3
E460H** 1600kg Bb & Gr 132 160 7.5 / 8.3 41 59 30 315 541 482 170 58 77 56 40 17.5 16 7
E313H 2000kg Bb & Gr 132 160 10 / 12 41 59 30 315 541 482 170 58 77 56 40 17.5 16 7
E323H 3200kg Bb & Gr 160 200 13 /15 49 60 38 369 631 562 210 80 94 53 40 17.5 16 15.5
E470H** 3200kg Bb & Gr 160 200 10 / 11.5 49 60 38 369 631 562 210 80 94 53 40 17.5 16 15.5
E490H 5000kg Bb & Gr 160 200 13 /15 49 60 38 368 646 567 210 80 94 69 60 25 20 17
E333H 5000kg Bb & Gr 210 250 16 /18 49 60 38 405 719 640 260 88 94 62 60 25 20 20.2
E480H** 6400kg Ro 275 336 14 / 16.3 68 80 48 510 896 794 343 92 110 75 70 30 25 34
E347H 8000kg Ro 275 336 21 / 23 68 80 48 510 896 794 343 92 110 75 70 30 25 34

Bb & Gr : bronze bush & axial lubrificator

Ro : roller bearing

* Bottom of groove

** For TIRFOR rope
